机械坚韧和荧光双网水凝胶同时具有先进的信息加密和智能食品监控

IF 13.2 1区 工程技术 Q1 ENGINEERING, CHEMICAL
Haojie Qian, Xiaozhi Xu, Shiqing Huang, Xiaowen Xu
{"title":"机械坚韧和荧光双网水凝胶同时具有先进的信息加密和智能食品监控","authors":"Haojie Qian, Xiaozhi Xu, Shiqing Huang, Xiaowen Xu","doi":"10.1016/j.cej.2025.162159","DOIUrl":null,"url":null,"abstract":"Fluorescent hydrogels show promise for either information encryption or food freshness indication; however, combining both features in a hydrogel system with strong mechanics for addressing information leakage and structural damage during transport remains challenging. Herein, we developed a mechanically tough hydrogel through copolymerization of acrylamide with UV-responsive (spiropyran-linked acrylate) and alkaline-responsive (7-acryloxy-4-methylcoumarin) fluorescent monomers, using a sodium alginate-Ca<sup>2+</sup> system. The resulting hydrogel exhibited remarkable mechanics, including a 3450 % breaking elongation, 290 kPa fracture stress, and 568 MJ/m<sup>3</sup> toughness, capable of lifting 400 g—656 times its own weight—outperforming current fluorescent hydrogels. It also demonstrated anti-fatigue, and excellent tearing resistance, with a tearing energy of 14 kJ/m<sup>2</sup>. Its fluorescence could shift from red to blue under UV light depending on pH (acidic pH = 1, alkaline pH = 13). These properties enabled advanced anti-counterfeiting applications, such as multi-color information encryption, ionic printing, and QR codes. Notably, the hydrogels also effectively monitored beef and milk freshness, with correlation coefficients (R<sup>2</sup>) exceeding 0.992 between TVB-N and ΔE for beef and 0.995 between acidity and ΔE for milk, surpassing existing hydrogel indicators with R<sup>2</sup> &lt; 0.90. Overall, this strategy may inspire novel, sustainable fluorescent materials for anti-counterfeiting, smart food tags, and visual sensing systems.","PeriodicalId":270,"journal":{"name":"Chemical Engineering Journal","volume":"440 1","pages":""},"PeriodicalIF":13.2000,"publicationDate":"2025-03-30","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"A mechanically tough and fluorescent double network hydrogel simultaneously featuring advanced information encryption and smart food monitoring\",\"authors\":\"Haojie Qian, Xiaozhi Xu, Shiqing Huang, Xiaowen Xu\",\"doi\":\"10.1016/j.cej.2025.162159\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Fluorescent hydrogels show promise for either information encryption or food freshness indication; however, combining both features in a hydrogel system with strong mechanics for addressing information leakage and structural damage during transport remains challenging. Herein, we developed a mechanically tough hydrogel through copolymerization of acrylamide with UV-responsive (spiropyran-linked acrylate) and alkaline-responsive (7-acryloxy-4-methylcoumarin) fluorescent monomers, using a sodium alginate-Ca<sup>2+</sup> system. The resulting hydrogel exhibited remarkable mechanics, including a 3450 % breaking elongation, 290 kPa fracture stress, and 568 MJ/m<sup>3</sup> toughness, capable of lifting 400 g—656 times its own weight—outperforming current fluorescent hydrogels. It also demonstrated anti-fatigue, and excellent tearing resistance, with a tearing energy of 14 kJ/m<sup>2</sup>. Its fluorescence could shift from red to blue under UV light depending on pH (acidic pH = 1, alkaline pH = 13). These properties enabled advanced anti-counterfeiting applications, such as multi-color information encryption, ionic printing, and QR codes. Notably, the hydrogels also effectively monitored beef and milk freshness, with correlation coefficients (R<sup>2</sup>) exceeding 0.992 between TVB-N and ΔE for beef and 0.995 between acidity and ΔE for milk, surpassing existing hydrogel indicators with R<sup>2</sup> &lt; 0.90. Overall, this strategy may inspire novel, sustainable fluorescent materials for anti-counterfeiting, smart food tags, and visual sensing systems.\",\"PeriodicalId\":270,\"journal\":{\"name\":\"Chemical Engineering Journal\",\"volume\":\"440 1\",\"pages\":\"\"},\"PeriodicalIF\":13.2000,\"publicationDate\":\"2025-03-30\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Chemical Engineering Journal\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://doi.org/10.1016/j.cej.2025.162159\",\"RegionNum\":1,\"RegionCategory\":\"工程技术\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"ENGINEERING, CHEMICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Chemical Engineering Journal","FirstCategoryId":"5","ListUrlMain":"https://doi.org/10.1016/j.cej.2025.162159","RegionNum":1,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, CHEMICAL","Score":null,"Total":0}
引用次数: 0

摘要

荧光水凝胶显示了信息加密或食品新鲜度指示的前景;然而,将这两种特性结合在水凝胶体系中,以解决运输过程中的信息泄漏和结构损坏问题,仍然是一个挑战。本文采用海藻酸钠- ca2 +体系,通过丙烯酰胺与紫外线响应(螺吡喃-丙烯酸酯)和碱响应(7-丙烯氧基-4-甲基香豆素)荧光单体的共聚,开发了一种机械坚韧的水凝胶。所制备的水凝胶具有优异的力学性能,断裂伸长率为3450 %,断裂应力为290 kPa,韧性为568 MJ/m3,能够举起400 g-656倍于自身重量的物体,优于现有的荧光水凝胶。抗疲劳、抗撕裂性能优异,撕裂能达14 kJ/m2。它的荧光在紫外光下根据pH值(酸性pH = 1,碱性pH = 13)由红色变为蓝色。这些特性使先进的防伪应用成为可能,如多色信息加密、离子打印和QR码。值得注意的是,水凝胶还能有效监测牛肉和牛奶的新鲜度,牛肉的TVB-N与ΔE的相关系数(R2)超过0.992,牛奶的酸度与ΔE的相关系数(R2)超过0.995,R2为 <; 0.90,优于现有的水凝胶指标。总的来说,这一策略可能会激发新的,可持续的荧光材料防伪,智能食品标签,和视觉传感系统。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

A mechanically tough and fluorescent double network hydrogel simultaneously featuring advanced information encryption and smart food monitoring

A mechanically tough and fluorescent double network hydrogel simultaneously featuring advanced information encryption and smart food monitoring

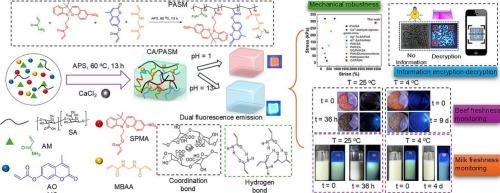

Fluorescent hydrogels show promise for either information encryption or food freshness indication; however, combining both features in a hydrogel system with strong mechanics for addressing information leakage and structural damage during transport remains challenging. Herein, we developed a mechanically tough hydrogel through copolymerization of acrylamide with UV-responsive (spiropyran-linked acrylate) and alkaline-responsive (7-acryloxy-4-methylcoumarin) fluorescent monomers, using a sodium alginate-Ca2+ system. The resulting hydrogel exhibited remarkable mechanics, including a 3450 % breaking elongation, 290 kPa fracture stress, and 568 MJ/m3 toughness, capable of lifting 400 g—656 times its own weight—outperforming current fluorescent hydrogels. It also demonstrated anti-fatigue, and excellent tearing resistance, with a tearing energy of 14 kJ/m2. Its fluorescence could shift from red to blue under UV light depending on pH (acidic pH = 1, alkaline pH = 13). These properties enabled advanced anti-counterfeiting applications, such as multi-color information encryption, ionic printing, and QR codes. Notably, the hydrogels also effectively monitored beef and milk freshness, with correlation coefficients (R2) exceeding 0.992 between TVB-N and ΔE for beef and 0.995 between acidity and ΔE for milk, surpassing existing hydrogel indicators with R2 < 0.90. Overall, this strategy may inspire novel, sustainable fluorescent materials for anti-counterfeiting, smart food tags, and visual sensing systems.
