通过Li3N在SiO阳极上的协同预锂化和原位氮掺杂:实现增强Li+动力学和高初始库仑效率的双效益途径

IF 12.1 2区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Small Pub Date : 2025-03-27 DOI:10.1002/smll.202501524
Si Yi, Zhilin Yan, Yiming Xiao, Cuicui Ye, Huangjie Qiu, Jingwen Zhang, Pengpeng Ning, Deren Yang, Ning Du
{"title":"通过Li3N在SiO阳极上的协同预锂化和原位氮掺杂:实现增强Li+动力学和高初始库仑效率的双效益途径","authors":"Si Yi,&nbsp;Zhilin Yan,&nbsp;Yiming Xiao,&nbsp;Cuicui Ye,&nbsp;Huangjie Qiu,&nbsp;Jingwen Zhang,&nbsp;Pengpeng Ning,&nbsp;Deren Yang,&nbsp;Ning Du","doi":"10.1002/smll.202501524","DOIUrl":null,"url":null,"abstract":"<p>Silicon monoxide (SiO) has garnered significant attention as a promising anode material for high-energy-density lithium-ion batteries due to its lower volume expansion relative to pure silicon (Si) and its higher capacity compared to graphite. Nevertheless, the poor intrinsic electronic/ionic conductivity and the low initial Coulombic efficiency (ICE) of SiO result in inferior rate capability and inadequate practical energy density, hindering its commercial viability. Here, a simultaneous prelithiation and in situ nitrogen (N) doping approach for SiO utilizing lithium nitride (Li<sub>3</sub>N), which significantly enhances both the ICE and lithium-ion (Li<sup>+</sup>) diffusion kinetics, is proposed. N atoms are not only incorporated into the carbon layer on the surface of SiO but also form a uniformly distributed amorphous Li<sub>2</sub>SiN<sub>2</sub> phase within the SiO, facilitating Li<sup>+</sup> transport. Molecular dynamics simulations demonstrate that the Li<sup>+</sup> diffusion coefficient of amorphous Li<sub>2</sub>SiN<sub>2</sub> is significantly higher than that of other crystalline phases present in the prelithiated SiO matrix. The 1.5 Ah pouch cells further validate that the SiON-0.175/graphite||NCM811 exhibits a high ICE of 88.06%, and it retains 51.5% of its capacity even under 4C fast charging conditions. This study offers new insights into the development of next-generation SiO anode materials with high ICE and high-rate performance.</p>","PeriodicalId":228,"journal":{"name":"Small","volume":"21 19","pages":""},"PeriodicalIF":12.1000,"publicationDate":"2025-03-27","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Synergistic Prelithiation and In Situ Nitrogen Doping via Li3N in SiO Anodes: A Dual-Benefit Pathway to Achieving Enhanced Li+ Kinetics and High Initial Coulombic Efficiency\",\"authors\":\"Si Yi,&nbsp;Zhilin Yan,&nbsp;Yiming Xiao,&nbsp;Cuicui Ye,&nbsp;Huangjie Qiu,&nbsp;Jingwen Zhang,&nbsp;Pengpeng Ning,&nbsp;Deren Yang,&nbsp;Ning Du\",\"doi\":\"10.1002/smll.202501524\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Silicon monoxide (SiO) has garnered significant attention as a promising anode material for high-energy-density lithium-ion batteries due to its lower volume expansion relative to pure silicon (Si) and its higher capacity compared to graphite. Nevertheless, the poor intrinsic electronic/ionic conductivity and the low initial Coulombic efficiency (ICE) of SiO result in inferior rate capability and inadequate practical energy density, hindering its commercial viability. Here, a simultaneous prelithiation and in situ nitrogen (N) doping approach for SiO utilizing lithium nitride (Li<sub>3</sub>N), which significantly enhances both the ICE and lithium-ion (Li<sup>+</sup>) diffusion kinetics, is proposed. N atoms are not only incorporated into the carbon layer on the surface of SiO but also form a uniformly distributed amorphous Li<sub>2</sub>SiN<sub>2</sub> phase within the SiO, facilitating Li<sup>+</sup> transport. Molecular dynamics simulations demonstrate that the Li<sup>+</sup> diffusion coefficient of amorphous Li<sub>2</sub>SiN<sub>2</sub> is significantly higher than that of other crystalline phases present in the prelithiated SiO matrix. The 1.5 Ah pouch cells further validate that the SiON-0.175/graphite||NCM811 exhibits a high ICE of 88.06%, and it retains 51.5% of its capacity even under 4C fast charging conditions. This study offers new insights into the development of next-generation SiO anode materials with high ICE and high-rate performance.</p>\",\"PeriodicalId\":228,\"journal\":{\"name\":\"Small\",\"volume\":\"21 19\",\"pages\":\"\"},\"PeriodicalIF\":12.1000,\"publicationDate\":\"2025-03-27\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Small\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://onlinelibrary.wiley.com/doi/10.1002/smll.202501524\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Small","FirstCategoryId":"88","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/smll.202501524","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

一氧化硅(SiO)作为一种有前途的高能量密度锂离子电池负极材料,由于其相对于纯硅(Si)的体积膨胀较小,而相对于石墨的容量更高,因此受到了广泛关注。然而,SiO的固有电子/离子电导率较差,初始库仑效率(ICE)较低,导致其速率能力较差,实际能量密度不足,阻碍了其商业可行性。本文提出了一种利用氮化锂(Li3N)同时预锂化和原位氮(N)掺杂SiO的方法,该方法显著提高了ICE和锂离子(Li+)扩散动力学。N原子不仅结合到SiO表面的碳层中,而且在SiO内部形成均匀分布的无定形Li2SiN2相,有利于Li+的输运。分子动力学模拟表明,非晶态Li2SiN2的Li+扩散系数明显高于预锂化SiO基体中的其他晶相。1.5 Ah袋状电池进一步验证了SiON-0.175/石墨||NCM811具有88.06%的高ICE,即使在4℃快速充电条件下也能保持51.5%的容量。该研究为开发具有高ICE和高速率性能的下一代SiO阳极材料提供了新的见解。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Synergistic Prelithiation and In Situ Nitrogen Doping via Li3N in SiO Anodes: A Dual-Benefit Pathway to Achieving Enhanced Li+ Kinetics and High Initial Coulombic Efficiency

Synergistic Prelithiation and In Situ Nitrogen Doping via Li3N in SiO Anodes: A Dual-Benefit Pathway to Achieving Enhanced Li+ Kinetics and High Initial Coulombic Efficiency

Synergistic Prelithiation and In Situ Nitrogen Doping via Li3N in SiO Anodes: A Dual-Benefit Pathway to Achieving Enhanced Li+ Kinetics and High Initial Coulombic Efficiency

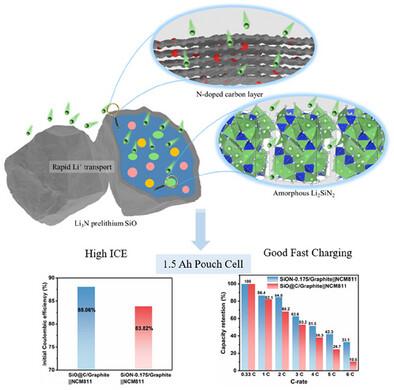

Silicon monoxide (SiO) has garnered significant attention as a promising anode material for high-energy-density lithium-ion batteries due to its lower volume expansion relative to pure silicon (Si) and its higher capacity compared to graphite. Nevertheless, the poor intrinsic electronic/ionic conductivity and the low initial Coulombic efficiency (ICE) of SiO result in inferior rate capability and inadequate practical energy density, hindering its commercial viability. Here, a simultaneous prelithiation and in situ nitrogen (N) doping approach for SiO utilizing lithium nitride (Li3N), which significantly enhances both the ICE and lithium-ion (Li+) diffusion kinetics, is proposed. N atoms are not only incorporated into the carbon layer on the surface of SiO but also form a uniformly distributed amorphous Li2SiN2 phase within the SiO, facilitating Li+ transport. Molecular dynamics simulations demonstrate that the Li+ diffusion coefficient of amorphous Li2SiN2 is significantly higher than that of other crystalline phases present in the prelithiated SiO matrix. The 1.5 Ah pouch cells further validate that the SiON-0.175/graphite||NCM811 exhibits a high ICE of 88.06%, and it retains 51.5% of its capacity even under 4C fast charging conditions. This study offers new insights into the development of next-generation SiO anode materials with high ICE and high-rate performance.
