平衡钙钛矿/有机串联太阳能电池互连层中的载流子输运

IF 15.7 1区 综合性期刊 Q1 MULTIDISCIPLINARY SCIENCES
Yidan An, Nan Zhang, Qi Liu, Wenlin Jiang, Gengxin Du, Desui Chen, Ming Liu, Xiaofeng Huang, Tingfeng Lei, Quanrun Qiu, Francis R. Lin, Xiao Cheng Zeng, Alex K.-Y. Jen, Hin-Lap Yip
{"title":"平衡钙钛矿/有机串联太阳能电池互连层中的载流子输运","authors":"Yidan An, Nan Zhang, Qi Liu, Wenlin Jiang, Gengxin Du, Desui Chen, Ming Liu, Xiaofeng Huang, Tingfeng Lei, Quanrun Qiu, Francis R. Lin, Xiao Cheng Zeng, Alex K.-Y. Jen, Hin-Lap Yip","doi":"10.1038/s41467-025-58047-3","DOIUrl":null,"url":null,"abstract":"<p>While individual perovskite and organic solar cells have demonstrated remarkable performance, achieving similar success in high-efficiency perovskite/organic tandem solar cells (TSCs) has been challenging, primarily due to large voltage deficits and severe non-radiative recombination. By exploring the fundamental mechanisms of carrier losses, we identify that imbalanced carrier transport, particularly inadequate hole transport in the organic subcell significantly limits the overall performance of perovskite/organic TSCs. Herein, we implement a hole transport self-assembled monolayer (SAM) anchored to MoO<sub>3</sub>, which converts the inherently n-type MoO<sub>3</sub> to a p-type surface. Further, a SAM/MoO<sub>3</sub>/SAM sandwich hole transport configuration is introduced, which significantly enhances hole extraction, facilitating a more balanced carrier transport, and markedly suppressing non-radiative recombination at the interconnection layer (ICL). The resulting perovskite/organic TSCs achieve a power conversion efficiency (PCE) of 26.05%, with an open-circuit voltage of 2.21 V (certified at 2.216 V) and enhanced operation stability.</p>","PeriodicalId":19066,"journal":{"name":"Nature Communications","volume":"93 1","pages":""},"PeriodicalIF":15.7000,"publicationDate":"2025-03-20","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Balancing carrier transport in interconnection layer for efficient perovskite/organic tandem solar cells\",\"authors\":\"Yidan An, Nan Zhang, Qi Liu, Wenlin Jiang, Gengxin Du, Desui Chen, Ming Liu, Xiaofeng Huang, Tingfeng Lei, Quanrun Qiu, Francis R. Lin, Xiao Cheng Zeng, Alex K.-Y. Jen, Hin-Lap Yip\",\"doi\":\"10.1038/s41467-025-58047-3\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>While individual perovskite and organic solar cells have demonstrated remarkable performance, achieving similar success in high-efficiency perovskite/organic tandem solar cells (TSCs) has been challenging, primarily due to large voltage deficits and severe non-radiative recombination. By exploring the fundamental mechanisms of carrier losses, we identify that imbalanced carrier transport, particularly inadequate hole transport in the organic subcell significantly limits the overall performance of perovskite/organic TSCs. Herein, we implement a hole transport self-assembled monolayer (SAM) anchored to MoO<sub>3</sub>, which converts the inherently n-type MoO<sub>3</sub> to a p-type surface. Further, a SAM/MoO<sub>3</sub>/SAM sandwich hole transport configuration is introduced, which significantly enhances hole extraction, facilitating a more balanced carrier transport, and markedly suppressing non-radiative recombination at the interconnection layer (ICL). The resulting perovskite/organic TSCs achieve a power conversion efficiency (PCE) of 26.05%, with an open-circuit voltage of 2.21 V (certified at 2.216 V) and enhanced operation stability.</p>\",\"PeriodicalId\":19066,\"journal\":{\"name\":\"Nature Communications\",\"volume\":\"93 1\",\"pages\":\"\"},\"PeriodicalIF\":15.7000,\"publicationDate\":\"2025-03-20\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Nature Communications\",\"FirstCategoryId\":\"103\",\"ListUrlMain\":\"https://doi.org/10.1038/s41467-025-58047-3\",\"RegionNum\":1,\"RegionCategory\":\"综合性期刊\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MULTIDISCIPLINARY SCIENCES\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nature Communications","FirstCategoryId":"103","ListUrlMain":"https://doi.org/10.1038/s41467-025-58047-3","RegionNum":1,"RegionCategory":"综合性期刊","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MULTIDISCIPLINARY SCIENCES","Score":null,"Total":0}
引用次数: 0

摘要

虽然单个钙钛矿和有机太阳能电池已经表现出了卓越的性能,但在高效钙钛矿/有机串联太阳能电池(tsc)中取得类似的成功一直是一个挑战,主要是由于大的电压赤字和严重的非辐射复合。通过探索载流子损失的基本机制,我们发现载流子运输不平衡,特别是有机亚电池中空穴运输不足,极大地限制了钙钛矿/有机tsc的整体性能。在此,我们实现了一个固定在MoO3上的空穴传输自组装单层(SAM),它将固有的n型MoO3转化为p型表面。此外,引入了SAM/MoO3/SAM夹层空穴传输配置,该配置显著增强了空穴提取,促进了更平衡的载流子传输,并显著抑制了互连层(ICL)的非辐射复合。所得钙钛矿/有机TSCs的功率转换效率(PCE)为26.05%,开路电压为2.21 V(认证为2.216 V),工作稳定性增强。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Balancing carrier transport in interconnection layer for efficient perovskite/organic tandem solar cells

Balancing carrier transport in interconnection layer for efficient perovskite/organic tandem solar cells

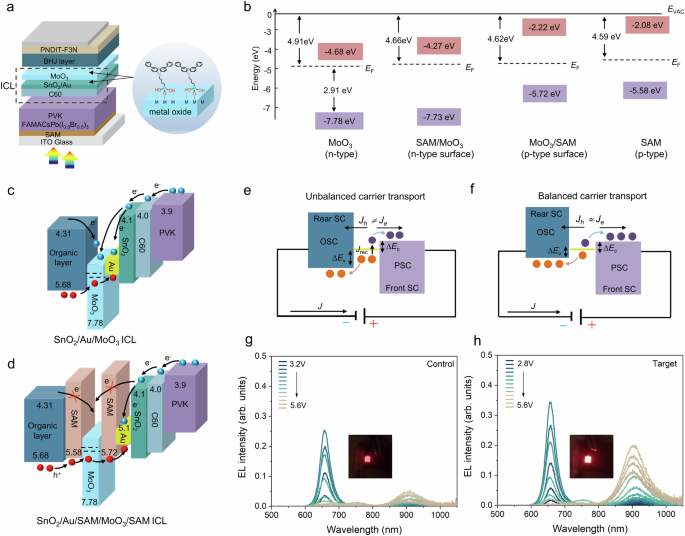

While individual perovskite and organic solar cells have demonstrated remarkable performance, achieving similar success in high-efficiency perovskite/organic tandem solar cells (TSCs) has been challenging, primarily due to large voltage deficits and severe non-radiative recombination. By exploring the fundamental mechanisms of carrier losses, we identify that imbalanced carrier transport, particularly inadequate hole transport in the organic subcell significantly limits the overall performance of perovskite/organic TSCs. Herein, we implement a hole transport self-assembled monolayer (SAM) anchored to MoO3, which converts the inherently n-type MoO3 to a p-type surface. Further, a SAM/MoO3/SAM sandwich hole transport configuration is introduced, which significantly enhances hole extraction, facilitating a more balanced carrier transport, and markedly suppressing non-radiative recombination at the interconnection layer (ICL). The resulting perovskite/organic TSCs achieve a power conversion efficiency (PCE) of 26.05%, with an open-circuit voltage of 2.21 V (certified at 2.216 V) and enhanced operation stability.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Nature Communications
Nature Communications Biological Science Disciplines-
CiteScore
24.90
自引率
2.40%
发文量
6928
审稿时长
3.7 months
期刊介绍: Nature Communications, an open-access journal, publishes high-quality research spanning all areas of the natural sciences. Papers featured in the journal showcase significant advances relevant to specialists in each respective field. With a 2-year impact factor of 16.6 (2022) and a median time of 8 days from submission to the first editorial decision, Nature Communications is committed to rapid dissemination of research findings. As a multidisciplinary journal, it welcomes contributions from biological, health, physical, chemical, Earth, social, mathematical, applied, and engineering sciences, aiming to highlight important breakthroughs within each domain.
×
