LaCoO3掺杂在pvdf基电解质中,具有长循环性能和宽温度范围内固态电池的优异界面兼容性

IF 7.9 2区 工程技术 Q1 CHEMISTRY, PHYSICAL
Yan He , Jinpeng Guo , Chuanchuan Bi , Zhifei Hao , Bin Zhao , Chunping Li , Xiaogang Han , Qi Wang
{"title":"LaCoO3掺杂在pvdf基电解质中,具有长循环性能和宽温度范围内固态电池的优异界面兼容性","authors":"Yan He ,&nbsp;Jinpeng Guo ,&nbsp;Chuanchuan Bi ,&nbsp;Zhifei Hao ,&nbsp;Bin Zhao ,&nbsp;Chunping Li ,&nbsp;Xiaogang Han ,&nbsp;Qi Wang","doi":"10.1016/j.jpowsour.2025.236771","DOIUrl":null,"url":null,"abstract":"<div><div>Composite polymer electrolytes (CPE) have attracted considerable attention due to their potential to achieve high flexibility and large energy density. However, their practical application is hampered by their suitability at a single temperature and severe lithium dendrite growth. In this work, we have doped the perovskite inorganic filler LaCoO<sub>3</sub> into polyamide (PI) nanofibers and constructed a LaCoO<sub>3</sub>/PI/PVDF CPE. Electrochemical characterization of the CPE and density functional theory calculations performed for it show that perovskite nanofibers have abundant oxygen vacancies, which are conducive to accelerating the dissociation of lithium salts and releasing more free lithium ions. Li//Li symmetric batteries exhibit excellent long cycle performance (over 3000 h) at 30 °C, and LiFePO<sub>4</sub>//Li batteries exhibit excellent cycling performance with over 1000 cycles at (0.5 C, 30 °C) and 400 cycles at (0.2 C, 60 °C), which can be realized with high voltage cathode NMC 811. The physical properties of the CPEs are also quite outstanding, with good thermal stability as it can withstand a high temperature of 200 °C and tensile strength up to 12.01 MPa. This work presents a new idea for designing CPEs with high safety and excellent electrochemical properties, which can provide stable circulation over a wide temperature range.</div></div>","PeriodicalId":377,"journal":{"name":"Journal of Power Sources","volume":"640 ","pages":"Article 236771"},"PeriodicalIF":7.9000,"publicationDate":"2025-03-18","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"LaCoO3 doping in PVDF-based electrolytes with long-cycle performance and excellent interface compatibility of solid-state batteries in a wide temperature range\",\"authors\":\"Yan He ,&nbsp;Jinpeng Guo ,&nbsp;Chuanchuan Bi ,&nbsp;Zhifei Hao ,&nbsp;Bin Zhao ,&nbsp;Chunping Li ,&nbsp;Xiaogang Han ,&nbsp;Qi Wang\",\"doi\":\"10.1016/j.jpowsour.2025.236771\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>Composite polymer electrolytes (CPE) have attracted considerable attention due to their potential to achieve high flexibility and large energy density. However, their practical application is hampered by their suitability at a single temperature and severe lithium dendrite growth. In this work, we have doped the perovskite inorganic filler LaCoO<sub>3</sub> into polyamide (PI) nanofibers and constructed a LaCoO<sub>3</sub>/PI/PVDF CPE. Electrochemical characterization of the CPE and density functional theory calculations performed for it show that perovskite nanofibers have abundant oxygen vacancies, which are conducive to accelerating the dissociation of lithium salts and releasing more free lithium ions. Li//Li symmetric batteries exhibit excellent long cycle performance (over 3000 h) at 30 °C, and LiFePO<sub>4</sub>//Li batteries exhibit excellent cycling performance with over 1000 cycles at (0.5 C, 30 °C) and 400 cycles at (0.2 C, 60 °C), which can be realized with high voltage cathode NMC 811. The physical properties of the CPEs are also quite outstanding, with good thermal stability as it can withstand a high temperature of 200 °C and tensile strength up to 12.01 MPa. This work presents a new idea for designing CPEs with high safety and excellent electrochemical properties, which can provide stable circulation over a wide temperature range.</div></div>\",\"PeriodicalId\":377,\"journal\":{\"name\":\"Journal of Power Sources\",\"volume\":\"640 \",\"pages\":\"Article 236771\"},\"PeriodicalIF\":7.9000,\"publicationDate\":\"2025-03-18\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of Power Sources\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S037877532500607X\",\"RegionNum\":2,\"RegionCategory\":\"工程技术\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Power Sources","FirstCategoryId":"5","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S037877532500607X","RegionNum":2,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

复合聚合物电解质(CPE)因其具有高柔韧性和大能量密度的潜力而受到广泛关注。然而,它们在单一温度下的适用性和严重的锂枝晶生长阻碍了它们的实际应用。在这项工作中,我们将钙钛矿无机填料LaCoO3掺杂到聚酰胺(PI)纳米纤维中,构建了LaCoO3/PI/PVDF CPE。CPE的电化学表征和密度泛函理论计算表明,钙钛矿纳米纤维具有丰富的氧空位,有利于加速锂盐的解离,释放更多的游离锂离子。Li//Li对称电池在30°C下表现出优异的长循环性能(超过3000 h), LiFePO4//Li电池在(0.5 C, 30°C)和(0.2 C, 60°C)下表现出优异的循环性能,这可以通过高压阴极NMC 811实现。cpe的物理性能也非常突出,具有良好的热稳定性,可承受200℃的高温,抗拉强度可达12.01 MPa。本工作为设计具有高安全性和优异电化学性能的cpe提供了一种新的思路,该cpe可以在宽温度范围内稳定循环。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

LaCoO3 doping in PVDF-based electrolytes with long-cycle performance and excellent interface compatibility of solid-state batteries in a wide temperature range

LaCoO3 doping in PVDF-based electrolytes with long-cycle performance and excellent interface compatibility of solid-state batteries in a wide temperature range

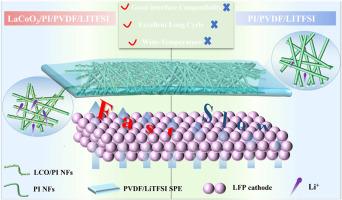

Composite polymer electrolytes (CPE) have attracted considerable attention due to their potential to achieve high flexibility and large energy density. However, their practical application is hampered by their suitability at a single temperature and severe lithium dendrite growth. In this work, we have doped the perovskite inorganic filler LaCoO3 into polyamide (PI) nanofibers and constructed a LaCoO3/PI/PVDF CPE. Electrochemical characterization of the CPE and density functional theory calculations performed for it show that perovskite nanofibers have abundant oxygen vacancies, which are conducive to accelerating the dissociation of lithium salts and releasing more free lithium ions. Li//Li symmetric batteries exhibit excellent long cycle performance (over 3000 h) at 30 °C, and LiFePO4//Li batteries exhibit excellent cycling performance with over 1000 cycles at (0.5 C, 30 °C) and 400 cycles at (0.2 C, 60 °C), which can be realized with high voltage cathode NMC 811. The physical properties of the CPEs are also quite outstanding, with good thermal stability as it can withstand a high temperature of 200 °C and tensile strength up to 12.01 MPa. This work presents a new idea for designing CPEs with high safety and excellent electrochemical properties, which can provide stable circulation over a wide temperature range.
求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Journal of Power Sources
Journal of Power Sources 工程技术-电化学
CiteScore
16.40
自引率
6.50%
发文量
1249
审稿时长
36 days
期刊介绍: The Journal of Power Sources is a publication catering to researchers and technologists interested in various aspects of the science, technology, and applications of electrochemical power sources. It covers original research and reviews on primary and secondary batteries, fuel cells, supercapacitors, and photo-electrochemical cells. Topics considered include the research, development and applications of nanomaterials and novel componentry for these devices. Examples of applications of these electrochemical power sources include: • Portable electronics • Electric and Hybrid Electric Vehicles • Uninterruptible Power Supply (UPS) systems • Storage of renewable energy • Satellites and deep space probes • Boats and ships, drones and aircrafts • Wearable energy storage systems
×
