高性能固态电池用聚环氧乙烷基固体聚合物电解质中弱化锂离子配位

IF 26 1区 材料科学 Q1 CHEMISTRY, PHYSICAL
Ruirui Chang, Yingkang Liu, Yaguang Zhang, Yunyu Shi, Jingjing Tang, Zheng-Long Xu, Xiangyang Zhou, Juan Yang
{"title":"高性能固态电池用聚环氧乙烷基固体聚合物电解质中弱化锂离子配位","authors":"Ruirui Chang,&nbsp;Yingkang Liu,&nbsp;Yaguang Zhang,&nbsp;Yunyu Shi,&nbsp;Jingjing Tang,&nbsp;Zheng-Long Xu,&nbsp;Xiangyang Zhou,&nbsp;Juan Yang","doi":"10.1002/aenm.202405906","DOIUrl":null,"url":null,"abstract":"<p>The high crystallinity of poly(ethylene oxide)-based solid polymer electrolytes (PEO-based SPEs) is viewed as a key barrier to their ambient-temperature performance. Conventional approaches to mitigate crystallinity necessitate elevated operation temperatures of 50–60 °C. Interestingly, this work indicates that the predominant factor limiting ambient-temperature performance is the robust coordination between lithium-ion (Li<sup>+</sup>) and ether oxygen (EO), rather than the crystallinity. By rationally tailoring the Li<sup>+</sup> concentration, this work effectively weakens the coordination strength, thereby enhancing the ambient-temperature electrochemical performance. An optimal SPE with EO: Li ratio of 9:1 exhibits remarkable ionic conductivity (1.76 × 10<sup>−4</sup> S cm<sup>−1</sup> at 35 °C), a high Li<sup>+</sup> transference number (0.486 at 35 °C), and superior adhesion to electrodes in compression-free pouch cells. The practical feasibility of the SPE is demonstrated in solid-state Li-LiFePO<sub>4</sub> cells achieving a specific capacity of 149.66 mAh g<sup>−1</sup> at 0.1 C and 35 °C and 90.5% capacity retention over 100 cycles. The electrolyte also exhibits compatibility with high-voltage cathodes of LiNi<sub>0.6</sub>Co<sub>0.2</sub>Mn<sub>0.2</sub>O<sub>2</sub> and LiNi<sub>0.8</sub>Co<sub>0.1</sub>Mn<sub>0.1</sub>O<sub>2</sub> for high-energy Li-metal batteries. These new insights shed light on the rational regulation of SPEs in advanced solid-state batteries.</p>","PeriodicalId":111,"journal":{"name":"Advanced Energy Materials","volume":"15 26","pages":""},"PeriodicalIF":26.0000,"publicationDate":"2025-03-18","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Weakening Lithium-Ion Coordination in Poly(Ethylene Oxide)-Based Solid Polymer Electrolytes for High Performance Solid-State Batteries\",\"authors\":\"Ruirui Chang,&nbsp;Yingkang Liu,&nbsp;Yaguang Zhang,&nbsp;Yunyu Shi,&nbsp;Jingjing Tang,&nbsp;Zheng-Long Xu,&nbsp;Xiangyang Zhou,&nbsp;Juan Yang\",\"doi\":\"10.1002/aenm.202405906\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>The high crystallinity of poly(ethylene oxide)-based solid polymer electrolytes (PEO-based SPEs) is viewed as a key barrier to their ambient-temperature performance. Conventional approaches to mitigate crystallinity necessitate elevated operation temperatures of 50–60 °C. Interestingly, this work indicates that the predominant factor limiting ambient-temperature performance is the robust coordination between lithium-ion (Li<sup>+</sup>) and ether oxygen (EO), rather than the crystallinity. By rationally tailoring the Li<sup>+</sup> concentration, this work effectively weakens the coordination strength, thereby enhancing the ambient-temperature electrochemical performance. An optimal SPE with EO: Li ratio of 9:1 exhibits remarkable ionic conductivity (1.76 × 10<sup>−4</sup> S cm<sup>−1</sup> at 35 °C), a high Li<sup>+</sup> transference number (0.486 at 35 °C), and superior adhesion to electrodes in compression-free pouch cells. The practical feasibility of the SPE is demonstrated in solid-state Li-LiFePO<sub>4</sub> cells achieving a specific capacity of 149.66 mAh g<sup>−1</sup> at 0.1 C and 35 °C and 90.5% capacity retention over 100 cycles. The electrolyte also exhibits compatibility with high-voltage cathodes of LiNi<sub>0.6</sub>Co<sub>0.2</sub>Mn<sub>0.2</sub>O<sub>2</sub> and LiNi<sub>0.8</sub>Co<sub>0.1</sub>Mn<sub>0.1</sub>O<sub>2</sub> for high-energy Li-metal batteries. These new insights shed light on the rational regulation of SPEs in advanced solid-state batteries.</p>\",\"PeriodicalId\":111,\"journal\":{\"name\":\"Advanced Energy Materials\",\"volume\":\"15 26\",\"pages\":\"\"},\"PeriodicalIF\":26.0000,\"publicationDate\":\"2025-03-18\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Advanced Energy Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://advanced.onlinelibrary.wiley.com/doi/10.1002/aenm.202405906\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://advanced.onlinelibrary.wiley.com/doi/10.1002/aenm.202405906","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

聚环氧乙烷基固体聚合物电解质(PEO-based spe)的高结晶度被认为是影响其环境温度性能的关键障碍。传统的降低结晶度的方法需要提高50-60°C的操作温度。有趣的是,这项工作表明,限制环境温度性能的主要因素是锂离子(Li+)和乙醚氧(EO)之间的强大配合,而不是结晶度。通过合理调整Li+浓度,有效削弱配位强度,从而提高室温电化学性能。在EO: Li比为9:1的最佳SPE中,离子电导率为1.76 × 10−4 S cm−1(35°C), Li+转移数为0.486(35°C),并且在无压缩袋状电池中具有优异的电极粘附性。SPE的实际可行性在固态Li-LiFePO4电池中得到了证明,在0.1℃和35℃下,SPE的比容量达到149.66 mAh g−1,在100次循环中容量保持率为90.5%。该电解质与高能锂金属电池的高压阴极LiNi0.6Co0.2Mn0.2O2和LiNi0.8Co0.1Mn0.1O2也具有相容性。这些新发现为先进固态电池中spe的合理调控提供了启示。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Weakening Lithium-Ion Coordination in Poly(Ethylene Oxide)-Based Solid Polymer Electrolytes for High Performance Solid-State Batteries

Weakening Lithium-Ion Coordination in Poly(Ethylene Oxide)-Based Solid Polymer Electrolytes for High Performance Solid-State Batteries

Weakening Lithium-Ion Coordination in Poly(Ethylene Oxide)-Based Solid Polymer Electrolytes for High Performance Solid-State Batteries

Weakening Lithium-Ion Coordination in Poly(Ethylene Oxide)-Based Solid Polymer Electrolytes for High Performance Solid-State Batteries

Weakening Lithium-Ion Coordination in Poly(Ethylene Oxide)-Based Solid Polymer Electrolytes for High Performance Solid-State Batteries

Weakening Lithium-Ion Coordination in Poly(Ethylene Oxide)-Based Solid Polymer Electrolytes for High Performance Solid-State Batteries

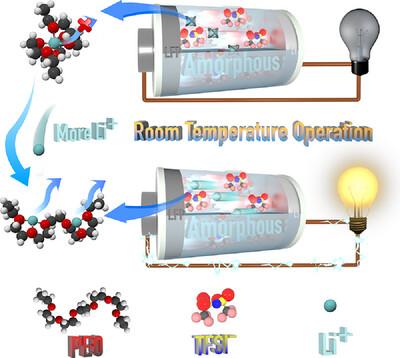

The high crystallinity of poly(ethylene oxide)-based solid polymer electrolytes (PEO-based SPEs) is viewed as a key barrier to their ambient-temperature performance. Conventional approaches to mitigate crystallinity necessitate elevated operation temperatures of 50–60 °C. Interestingly, this work indicates that the predominant factor limiting ambient-temperature performance is the robust coordination between lithium-ion (Li+) and ether oxygen (EO), rather than the crystallinity. By rationally tailoring the Li+ concentration, this work effectively weakens the coordination strength, thereby enhancing the ambient-temperature electrochemical performance. An optimal SPE with EO: Li ratio of 9:1 exhibits remarkable ionic conductivity (1.76 × 10−4 S cm−1 at 35 °C), a high Li+ transference number (0.486 at 35 °C), and superior adhesion to electrodes in compression-free pouch cells. The practical feasibility of the SPE is demonstrated in solid-state Li-LiFePO4 cells achieving a specific capacity of 149.66 mAh g−1 at 0.1 C and 35 °C and 90.5% capacity retention over 100 cycles. The electrolyte also exhibits compatibility with high-voltage cathodes of LiNi0.6Co0.2Mn0.2O2 and LiNi0.8Co0.1Mn0.1O2 for high-energy Li-metal batteries. These new insights shed light on the rational regulation of SPEs in advanced solid-state batteries.
