铅基钙钛矿显著抑制高性能多层SnS2/钙钛矿光电探测器的暗电流

IF 16 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
ACS Nano Pub Date : 2025-03-15 DOI:10.1021/acsnano.4c16539
Fobao Huang, Chunxiao Liu, Qingyuan Yang, Yong Chao, Gongwei Hu, Wei Huang
{"title":"铅基钙钛矿显著抑制高性能多层SnS2/钙钛矿光电探测器的暗电流","authors":"Fobao Huang, Chunxiao Liu, Qingyuan Yang, Yong Chao, Gongwei Hu, Wei Huang","doi":"10.1021/acsnano.4c16539","DOIUrl":null,"url":null,"abstract":"Tin disulfide (SnS<sub>2</sub>), a layered material analogous to two-dimensional transition metal dichalcogenides (TMDs), demonstrates excellent photoresponse capabilities. However, the relatively large dark current in multilayer SnS<sub>2</sub> photodetectors limits their potential in high-performance photodetection. To address this issue, we introduce lead (Pb)-based halide perovskites as dark current suppression layers for the SnS<sub>2</sub> photodetector. Specifically, to evaluate the effects of short- and long-chain organic molecules outside the perovskite octahedral structure [PbI<sub>6</sub>]<sup>4–</sup>, three-dimensional perovskite cesium-doped formamidinium lead trihalide (FA<sub>0.9</sub>Cs<sub>0.1</sub>PbI<sub>3</sub>) and two-dimensional perovskite phenylethylammonium lead iodide ((PEA)<sub>2</sub>PbI<sub>4</sub>) were selected as dark current suppression layers, significantly suppressing the dark current while enhancing the device’s light on/off ratio and specific detectivity. Results show that, compared to the original SnS<sub>2</sub> photodetector, the proposed device achieves a 5-order magnitude reduction in dark current (down to ∼ 10 pA level), a 150-fold increase in light on/off ratio, a 20-fold improvement in response speed, and a 4-fold enhancement in specific detectivity. Additionally, this device also exhibits notable self-powered photodetection capabilities (operating at 0 V bias). Evidently, the innovative approach of applying a thin Pb-based perovskite layer onto TMD-like materials offers a promising route to develop high-performance photodetectors with low dark current.","PeriodicalId":21,"journal":{"name":"ACS Nano","volume":"69 1","pages":""},"PeriodicalIF":16.0000,"publicationDate":"2025-03-15","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Lead-Based Perovskites Significantly Suppress Dark Currents toward High-Performance Multilayer SnS2/Perovskite Photodetectors\",\"authors\":\"Fobao Huang, Chunxiao Liu, Qingyuan Yang, Yong Chao, Gongwei Hu, Wei Huang\",\"doi\":\"10.1021/acsnano.4c16539\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Tin disulfide (SnS<sub>2</sub>), a layered material analogous to two-dimensional transition metal dichalcogenides (TMDs), demonstrates excellent photoresponse capabilities. However, the relatively large dark current in multilayer SnS<sub>2</sub> photodetectors limits their potential in high-performance photodetection. To address this issue, we introduce lead (Pb)-based halide perovskites as dark current suppression layers for the SnS<sub>2</sub> photodetector. Specifically, to evaluate the effects of short- and long-chain organic molecules outside the perovskite octahedral structure [PbI<sub>6</sub>]<sup>4–</sup>, three-dimensional perovskite cesium-doped formamidinium lead trihalide (FA<sub>0.9</sub>Cs<sub>0.1</sub>PbI<sub>3</sub>) and two-dimensional perovskite phenylethylammonium lead iodide ((PEA)<sub>2</sub>PbI<sub>4</sub>) were selected as dark current suppression layers, significantly suppressing the dark current while enhancing the device’s light on/off ratio and specific detectivity. Results show that, compared to the original SnS<sub>2</sub> photodetector, the proposed device achieves a 5-order magnitude reduction in dark current (down to ∼ 10 pA level), a 150-fold increase in light on/off ratio, a 20-fold improvement in response speed, and a 4-fold enhancement in specific detectivity. Additionally, this device also exhibits notable self-powered photodetection capabilities (operating at 0 V bias). Evidently, the innovative approach of applying a thin Pb-based perovskite layer onto TMD-like materials offers a promising route to develop high-performance photodetectors with low dark current.\",\"PeriodicalId\":21,\"journal\":{\"name\":\"ACS Nano\",\"volume\":\"69 1\",\"pages\":\"\"},\"PeriodicalIF\":16.0000,\"publicationDate\":\"2025-03-15\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Nano\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1021/acsnano.4c16539\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Nano","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acsnano.4c16539","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

二硫化锡(SnS2)是一种类似于二维过渡金属二硫族化合物(TMDs)的层状材料,具有优异的光响应能力。然而,相对较大的暗电流限制了多层SnS2光电探测器在高性能光电探测方面的潜力。为了解决这一问题,我们引入了铅基卤化物钙钛矿作为SnS2光电探测器的暗电流抑制层。具体来说,为了评价钙钛矿八面体结构[PbI6]4 -外的短链和长链有机分子的作用,选择了三维钙钛矿铯掺杂甲酰胺三卤化铅(FA0.9Cs0.1PbI3)和二维钙钛矿苯乙基碘化铅((PEA)2PbI4)作为暗电流抑制层,显著抑制了暗电流,同时提高了器件的光通/关比和比探测率。结果表明,与原始的SnS2光电探测器相比,该器件的暗电流降低了5个数量级(降至~ 10 pA水平),光开/关比提高了150倍,响应速度提高了20倍,比探测率提高了4倍。此外,该器件还表现出显著的自供电光电探测能力(工作在0 V偏压下)。显然,将薄的铅基钙钛矿层应用于tmd类材料的创新方法为开发具有低暗电流的高性能光电探测器提供了一条有前途的途径。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Lead-Based Perovskites Significantly Suppress Dark Currents toward High-Performance Multilayer SnS2/Perovskite Photodetectors

Lead-Based Perovskites Significantly Suppress Dark Currents toward High-Performance Multilayer SnS2/Perovskite Photodetectors

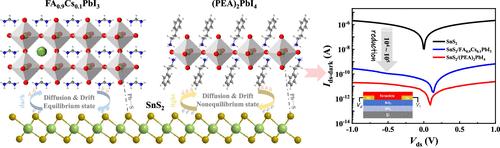

Tin disulfide (SnS2), a layered material analogous to two-dimensional transition metal dichalcogenides (TMDs), demonstrates excellent photoresponse capabilities. However, the relatively large dark current in multilayer SnS2 photodetectors limits their potential in high-performance photodetection. To address this issue, we introduce lead (Pb)-based halide perovskites as dark current suppression layers for the SnS2 photodetector. Specifically, to evaluate the effects of short- and long-chain organic molecules outside the perovskite octahedral structure [PbI6]4–, three-dimensional perovskite cesium-doped formamidinium lead trihalide (FA0.9Cs0.1PbI3) and two-dimensional perovskite phenylethylammonium lead iodide ((PEA)2PbI4) were selected as dark current suppression layers, significantly suppressing the dark current while enhancing the device’s light on/off ratio and specific detectivity. Results show that, compared to the original SnS2 photodetector, the proposed device achieves a 5-order magnitude reduction in dark current (down to ∼ 10 pA level), a 150-fold increase in light on/off ratio, a 20-fold improvement in response speed, and a 4-fold enhancement in specific detectivity. Additionally, this device also exhibits notable self-powered photodetection capabilities (operating at 0 V bias). Evidently, the innovative approach of applying a thin Pb-based perovskite layer onto TMD-like materials offers a promising route to develop high-performance photodetectors with low dark current.
求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
ACS Nano
ACS Nano 工程技术-材料科学:综合
CiteScore
26.00
自引率
4.10%
发文量
1627
审稿时长
1.7 months
期刊介绍: ACS Nano, published monthly, serves as an international forum for comprehensive articles on nanoscience and nanotechnology research at the intersections of chemistry, biology, materials science, physics, and engineering. The journal fosters communication among scientists in these communities, facilitating collaboration, new research opportunities, and advancements through discoveries. ACS Nano covers synthesis, assembly, characterization, theory, and simulation of nanostructures, nanobiotechnology, nanofabrication, methods and tools for nanoscience and nanotechnology, and self- and directed-assembly. Alongside original research articles, it offers thorough reviews, perspectives on cutting-edge research, and discussions envisioning the future of nanoscience and nanotechnology.
×
