高效稳定钙钛矿太阳能电池的3,5-双(三氟甲基)苯乙醇内封装

IF 8.2 2区 材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY
Wanqi Zhang, Yan Li, Xiangfei Song, He Yang, Zihu Kang, Yue Zheng, Xia Tao
{"title":"高效稳定钙钛矿太阳能电池的3,5-双(三氟甲基)苯乙醇内封装","authors":"Wanqi Zhang, Yan Li, Xiangfei Song, He Yang, Zihu Kang, Yue Zheng, Xia Tao","doi":"10.1021/acsami.5c00846","DOIUrl":null,"url":null,"abstract":"Perovskite solar cells (PSCs) have made significant progress in efficiency, but their long-term operational stability remains an important yet challenging issue. Here, a dual-site passivation coupling internal encapsulation strategy is developed by introducing 3,5-bis(trifluoromethyl)-benzenethiol (35BBT) at the perovskite (PVK)/hole transport layer (HTL) interface. 35BBT provides dual active sites containing sulfur (S) atoms and fluorine (F) atoms, where the S atoms in the sulfhydryl group and the F atoms in the trifluoromethyl group coordinate with unpaired Pb<sup>2+</sup> to form coordinate bonds, meanwhile the F atoms in the trifluoromethyl group form hydrogen bonds with organic cations. This dual-site passivation mitigates deep and shallow defects at the PVK/HTL interface. Notably, 35BBT, with hydrophobic trifluoromethyl and benzene rings covering the perovskite layer, enables internal encapsulation to protect the perovskite films from water and oxygen invasion. Consequently, the Ag-based device with 35BBT treatment achieves an efficiency enhancement from 22.03% to 23.86%, retaining 89.1% of its initial efficiency even after 2000 h of air exposure. This fabricated device also exhibits long-term thermal stability at 60 °C. This study offers an avenue for simultaneously passivating deep and shallow defects at the PVK/HTL interface and inhibiting water/oxygen erosion, thereby enabling the fabrication of efficient and stable PSCs for future commercial applications.","PeriodicalId":5,"journal":{"name":"ACS Applied Materials & Interfaces","volume":"32 1","pages":""},"PeriodicalIF":8.2000,"publicationDate":"2025-03-14","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Dual-Site Passivation Coupling Internal Encapsulation via 3,5-Bis(trifluoromethyl)benzenethiol for Efficient and Stable Perovskite Solar Cells\",\"authors\":\"Wanqi Zhang, Yan Li, Xiangfei Song, He Yang, Zihu Kang, Yue Zheng, Xia Tao\",\"doi\":\"10.1021/acsami.5c00846\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Perovskite solar cells (PSCs) have made significant progress in efficiency, but their long-term operational stability remains an important yet challenging issue. Here, a dual-site passivation coupling internal encapsulation strategy is developed by introducing 3,5-bis(trifluoromethyl)-benzenethiol (35BBT) at the perovskite (PVK)/hole transport layer (HTL) interface. 35BBT provides dual active sites containing sulfur (S) atoms and fluorine (F) atoms, where the S atoms in the sulfhydryl group and the F atoms in the trifluoromethyl group coordinate with unpaired Pb<sup>2+</sup> to form coordinate bonds, meanwhile the F atoms in the trifluoromethyl group form hydrogen bonds with organic cations. This dual-site passivation mitigates deep and shallow defects at the PVK/HTL interface. Notably, 35BBT, with hydrophobic trifluoromethyl and benzene rings covering the perovskite layer, enables internal encapsulation to protect the perovskite films from water and oxygen invasion. Consequently, the Ag-based device with 35BBT treatment achieves an efficiency enhancement from 22.03% to 23.86%, retaining 89.1% of its initial efficiency even after 2000 h of air exposure. This fabricated device also exhibits long-term thermal stability at 60 °C. This study offers an avenue for simultaneously passivating deep and shallow defects at the PVK/HTL interface and inhibiting water/oxygen erosion, thereby enabling the fabrication of efficient and stable PSCs for future commercial applications.\",\"PeriodicalId\":5,\"journal\":{\"name\":\"ACS Applied Materials & Interfaces\",\"volume\":\"32 1\",\"pages\":\"\"},\"PeriodicalIF\":8.2000,\"publicationDate\":\"2025-03-14\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Materials & Interfaces\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1021/acsami.5c00846\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Materials & Interfaces","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acsami.5c00846","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

钙钛矿太阳能电池(PSCs)在效率方面取得了重大进展,但其长期运行稳定性仍然是一个重要而具有挑战性的问题。本文通过在钙钛矿(PVK)/空穴传输层(html)界面上引入3,5-双(三氟甲基)-苯乙醇(35BBT),建立了一种双位点钝化耦合内封装策略。35BBT提供含有硫(S)原子和氟(F)原子的双活性位点,其中巯基上的S原子和三氟甲基上的F原子与未配对的Pb2+配位形成配位键,同时三氟甲基上的F原子与有机阳离子形成氢键。这种双重钝化减轻了PVK/ html接口上的深层和浅层缺陷。值得注意的是,35BBT在钙钛矿层上覆盖了疏水的三氟甲基环和苯环,可以实现内部封装,保护钙钛矿膜免受水和氧气的入侵。因此,在35BBT处理下,ag基器件的效率从22.03%提高到23.86%,即使在空气暴露2000小时后仍保持其初始效率的89.1%。该装置在60°C下也具有长期热稳定性。该研究为同时钝化PVK/HTL界面上的深层和浅层缺陷以及抑制水/氧侵蚀提供了一条途径,从而为未来的商业应用提供了高效、稳定的psc制造技术。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Dual-Site Passivation Coupling Internal Encapsulation via 3,5-Bis(trifluoromethyl)benzenethiol for Efficient and Stable Perovskite Solar Cells

Dual-Site Passivation Coupling Internal Encapsulation via 3,5-Bis(trifluoromethyl)benzenethiol for Efficient and Stable Perovskite Solar Cells

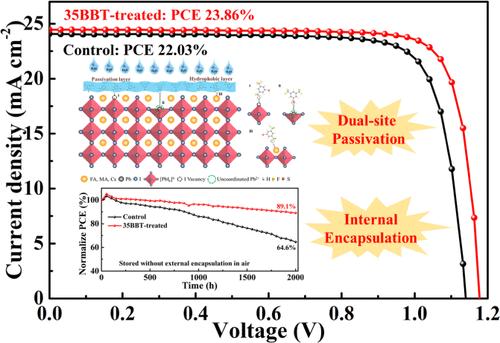

Perovskite solar cells (PSCs) have made significant progress in efficiency, but their long-term operational stability remains an important yet challenging issue. Here, a dual-site passivation coupling internal encapsulation strategy is developed by introducing 3,5-bis(trifluoromethyl)-benzenethiol (35BBT) at the perovskite (PVK)/hole transport layer (HTL) interface. 35BBT provides dual active sites containing sulfur (S) atoms and fluorine (F) atoms, where the S atoms in the sulfhydryl group and the F atoms in the trifluoromethyl group coordinate with unpaired Pb2+ to form coordinate bonds, meanwhile the F atoms in the trifluoromethyl group form hydrogen bonds with organic cations. This dual-site passivation mitigates deep and shallow defects at the PVK/HTL interface. Notably, 35BBT, with hydrophobic trifluoromethyl and benzene rings covering the perovskite layer, enables internal encapsulation to protect the perovskite films from water and oxygen invasion. Consequently, the Ag-based device with 35BBT treatment achieves an efficiency enhancement from 22.03% to 23.86%, retaining 89.1% of its initial efficiency even after 2000 h of air exposure. This fabricated device also exhibits long-term thermal stability at 60 °C. This study offers an avenue for simultaneously passivating deep and shallow defects at the PVK/HTL interface and inhibiting water/oxygen erosion, thereby enabling the fabrication of efficient and stable PSCs for future commercial applications.
求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
ACS Applied Materials & Interfaces
ACS Applied Materials & Interfaces 工程技术-材料科学:综合
CiteScore
16.00
自引率
6.30%
发文量
4978
审稿时长
1.8 months
期刊介绍: ACS Applied Materials & Interfaces is a leading interdisciplinary journal that brings together chemists, engineers, physicists, and biologists to explore the development and utilization of newly-discovered materials and interfacial processes for specific applications. Our journal has experienced remarkable growth since its establishment in 2009, both in terms of the number of articles published and the impact of the research showcased. We are proud to foster a truly global community, with the majority of published articles originating from outside the United States, reflecting the rapid growth of applied research worldwide.
×
