摩擦电纳米发电机用超弹性疏水复合气凝胶

IF 5.1 3区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Nanoscale Pub Date : 2025-03-04 DOI:10.1039/D4NR04831H
Shize Fang, Xin Xu, Yu Wei, Fangcheng Qiu, Weixin Huang, Hong Jiang, Ning Zhang, Yufeng Song, Meng Gao, Hongbin Liu, Yang Liu and Bowen Cheng
{"title":"摩擦电纳米发电机用超弹性疏水复合气凝胶","authors":"Shize Fang, Xin Xu, Yu Wei, Fangcheng Qiu, Weixin Huang, Hong Jiang, Ning Zhang, Yufeng Song, Meng Gao, Hongbin Liu, Yang Liu and Bowen Cheng","doi":"10.1039/D4NR04831H","DOIUrl":null,"url":null,"abstract":"<p >Progress toward the advancement of environmentally friendly energy harvesting devices is critical for eco-environmental protection. There is an urgent need for developing energy harvesting devices from biobased materials. However, it is still a challenge to utilize biobased cellulose nanofiber (CNF) aerogels in triboelectric nanogenerators (TENGs) due to their poor mechanical properties, hydrophilicity, and weak polarization capability. Here, we demonstrate a facile strategy to fabricate a super-elastic, hydrophobic CNF/MXene composite aerogel for TENGs through fluorosilane crosslinking and a directional freeze-dried assembled structure. This aerogel can withstand up to 80% compressive strain, rebound to 95.33% of its original height, and exhibit hydrophobicity (water contact angle = 137.65°). In addition, the induction of MXene and the silane coupling agent endows the aerogel with enhanced electronegativity and charge density. These properties enable the CNF/MXene aerogel to harvest energy with an output voltage of 100 V and a short-circuit charge density of ∼900 nC cm<small><sup>−3</sup></small>, while maintaining stability for 1000 cycles. This aerogel holds great application potential in the field of self-powered sensing and raindrop energy harvesting.</p>","PeriodicalId":92,"journal":{"name":"Nanoscale","volume":" 13","pages":" 8047-8056"},"PeriodicalIF":5.1000,"publicationDate":"2025-03-04","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Super-elastic, hydrophobic composite aerogels for triboelectric nanogenerators†\",\"authors\":\"Shize Fang, Xin Xu, Yu Wei, Fangcheng Qiu, Weixin Huang, Hong Jiang, Ning Zhang, Yufeng Song, Meng Gao, Hongbin Liu, Yang Liu and Bowen Cheng\",\"doi\":\"10.1039/D4NR04831H\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Progress toward the advancement of environmentally friendly energy harvesting devices is critical for eco-environmental protection. There is an urgent need for developing energy harvesting devices from biobased materials. However, it is still a challenge to utilize biobased cellulose nanofiber (CNF) aerogels in triboelectric nanogenerators (TENGs) due to their poor mechanical properties, hydrophilicity, and weak polarization capability. Here, we demonstrate a facile strategy to fabricate a super-elastic, hydrophobic CNF/MXene composite aerogel for TENGs through fluorosilane crosslinking and a directional freeze-dried assembled structure. This aerogel can withstand up to 80% compressive strain, rebound to 95.33% of its original height, and exhibit hydrophobicity (water contact angle = 137.65°). In addition, the induction of MXene and the silane coupling agent endows the aerogel with enhanced electronegativity and charge density. These properties enable the CNF/MXene aerogel to harvest energy with an output voltage of 100 V and a short-circuit charge density of ∼900 nC cm<small><sup>−3</sup></small>, while maintaining stability for 1000 cycles. This aerogel holds great application potential in the field of self-powered sensing and raindrop energy harvesting.</p>\",\"PeriodicalId\":92,\"journal\":{\"name\":\"Nanoscale\",\"volume\":\" 13\",\"pages\":\" 8047-8056\"},\"PeriodicalIF\":5.1000,\"publicationDate\":\"2025-03-04\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Nanoscale\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/nr/d4nr04831h\",\"RegionNum\":3,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nanoscale","FirstCategoryId":"88","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/nr/d4nr04831h","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

环境友好型能量收集装置的发展对生态环境保护至关重要。目前迫切需要开发生物基材料的能量收集装置。然而,由于生物基纤维素纳米纤维(CNF)气凝胶力学性能差、亲水性差、极化能力弱,在摩擦电纳米发电机(TENGs)中应用仍然是一个挑战。在这里,我们展示了一种简单的策略,通过氟硅烷交联和定向冷冻干燥组装结构,为TENGs制造超弹性,疏水性CNF/MXene复合气凝胶。该气凝胶可承受高达80%的压缩应变,回弹至原始高度的95.33%,并具有疏水性(水接触角= 137.65°)。此外,MXene和硅烷偶联剂的诱导使气凝胶具有增强的电负性和电荷密度。这些特性使CNF/MXene气凝胶能够在输出电压为100 V、短路电荷密度为~ 900 nC cm−3的情况下收集能量,同时保持1000次循环的稳定性。这种气凝胶在自供电传感和雨滴能量收集领域具有很大的应用潜力。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Super-elastic, hydrophobic composite aerogels for triboelectric nanogenerators†

Super-elastic, hydrophobic composite aerogels for triboelectric nanogenerators†

Super-elastic, hydrophobic composite aerogels for triboelectric nanogenerators†

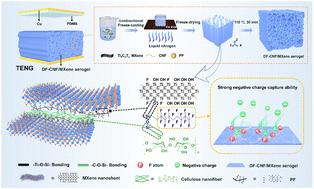

Progress toward the advancement of environmentally friendly energy harvesting devices is critical for eco-environmental protection. There is an urgent need for developing energy harvesting devices from biobased materials. However, it is still a challenge to utilize biobased cellulose nanofiber (CNF) aerogels in triboelectric nanogenerators (TENGs) due to their poor mechanical properties, hydrophilicity, and weak polarization capability. Here, we demonstrate a facile strategy to fabricate a super-elastic, hydrophobic CNF/MXene composite aerogel for TENGs through fluorosilane crosslinking and a directional freeze-dried assembled structure. This aerogel can withstand up to 80% compressive strain, rebound to 95.33% of its original height, and exhibit hydrophobicity (water contact angle = 137.65°). In addition, the induction of MXene and the silane coupling agent endows the aerogel with enhanced electronegativity and charge density. These properties enable the CNF/MXene aerogel to harvest energy with an output voltage of 100 V and a short-circuit charge density of ∼900 nC cm−3, while maintaining stability for 1000 cycles. This aerogel holds great application potential in the field of self-powered sensing and raindrop energy harvesting.
