Ni-MOF/MXene杂化物的蚀刻和表面自组装制备优异的柔性赝电容

IF 6.9 2区 材料科学 Q2 CHEMISTRY, PHYSICAL
Jiarui Li, Xinrui Qiang, Bingzhe Jia, Lei Wang, Xinming Wu
{"title":"Ni-MOF/MXene杂化物的蚀刻和表面自组装制备优异的柔性赝电容","authors":"Jiarui Li,&nbsp;Xinrui Qiang,&nbsp;Bingzhe Jia,&nbsp;Lei Wang,&nbsp;Xinming Wu","doi":"10.1016/j.apsusc.2025.162867","DOIUrl":null,"url":null,"abstract":"<div><div>In order to meet the demand for portable and wearable electronic devices in contemporary society, there has been the focus on flexible supercapacitors (FSSCs). In this study, MXene and Ni-MOF were self-assembled to create MXene-NPO flexible electrodes through the process of phosphorylation achieved through in situ etching. The composite electrodes exhibited excellent specific capacitance of 1406 F g<sup>−1</sup> (1 A g<sup>−1</sup>), with the capacitance retention of 94.7% after 20,000 cycles. Furthermore, the electrochemical performance of the assembled MXene-NPO//AC flexible device (with energy density and power density of 118 Wh kg<sup>−1</sup> and 799.7 W kg<sup>−1</sup>) was found to remain stable under different bending angles. The shape of the CV curve was not significantly distorted. The capacitance retention of the flexible device remained at 95.1% after 1000 charge/discharge cycles when folded at 90°. This work offers insights into the development of future flexible energy storage devices.</div></div>","PeriodicalId":247,"journal":{"name":"Applied Surface Science","volume":"695 ","pages":"Article 162867"},"PeriodicalIF":6.9000,"publicationDate":"2025-03-03","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Etching and surface self-assembly of Ni-MOF/MXene hybrids for excellent flexible Pseudocapacitance\",\"authors\":\"Jiarui Li,&nbsp;Xinrui Qiang,&nbsp;Bingzhe Jia,&nbsp;Lei Wang,&nbsp;Xinming Wu\",\"doi\":\"10.1016/j.apsusc.2025.162867\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><div>In order to meet the demand for portable and wearable electronic devices in contemporary society, there has been the focus on flexible supercapacitors (FSSCs). In this study, MXene and Ni-MOF were self-assembled to create MXene-NPO flexible electrodes through the process of phosphorylation achieved through in situ etching. The composite electrodes exhibited excellent specific capacitance of 1406 F g<sup>−1</sup> (1 A g<sup>−1</sup>), with the capacitance retention of 94.7% after 20,000 cycles. Furthermore, the electrochemical performance of the assembled MXene-NPO//AC flexible device (with energy density and power density of 118 Wh kg<sup>−1</sup> and 799.7 W kg<sup>−1</sup>) was found to remain stable under different bending angles. The shape of the CV curve was not significantly distorted. The capacitance retention of the flexible device remained at 95.1% after 1000 charge/discharge cycles when folded at 90°. This work offers insights into the development of future flexible energy storage devices.</div></div>\",\"PeriodicalId\":247,\"journal\":{\"name\":\"Applied Surface Science\",\"volume\":\"695 \",\"pages\":\"Article 162867\"},\"PeriodicalIF\":6.9000,\"publicationDate\":\"2025-03-03\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Applied Surface Science\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://www.sciencedirect.com/science/article/pii/S0169433225005811\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Applied Surface Science","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0169433225005811","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

为了满足当今社会对便携式和可穿戴电子设备的需求,柔性超级电容器(fssc)已经成为人们关注的焦点。在本研究中,MXene和Ni-MOF通过原位蚀刻实现磷酸化过程自组装,形成MXene- npo柔性电极。复合电极的比电容为1406F g−1 (1ag−1),循环2万次后电容保持率为94.7 %。此外,在不同的弯曲角度下,组装的MXene-NPO//交流柔性器件(能量密度和功率密度分别为118 Wh kg - 1和799.7 W kg - 1)的电化学性能保持稳定。CV曲线的形状没有明显的扭曲。当90°折叠时,在1000次充放电循环后,柔性器件的电容保持率保持在95.1% %。这项工作为未来柔性储能装置的发展提供了见解。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Etching and surface self-assembly of Ni-MOF/MXene hybrids for excellent flexible Pseudocapacitance

Etching and surface self-assembly of Ni-MOF/MXene hybrids for excellent flexible Pseudocapacitance

Etching and surface self-assembly of Ni-MOF/MXene hybrids for excellent flexible Pseudocapacitance

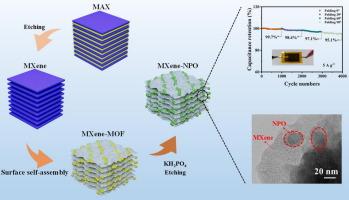

In order to meet the demand for portable and wearable electronic devices in contemporary society, there has been the focus on flexible supercapacitors (FSSCs). In this study, MXene and Ni-MOF were self-assembled to create MXene-NPO flexible electrodes through the process of phosphorylation achieved through in situ etching. The composite electrodes exhibited excellent specific capacitance of 1406 F g−1 (1 A g−1), with the capacitance retention of 94.7% after 20,000 cycles. Furthermore, the electrochemical performance of the assembled MXene-NPO//AC flexible device (with energy density and power density of 118 Wh kg−1 and 799.7 W kg−1) was found to remain stable under different bending angles. The shape of the CV curve was not significantly distorted. The capacitance retention of the flexible device remained at 95.1% after 1000 charge/discharge cycles when folded at 90°. This work offers insights into the development of future flexible energy storage devices.
