通过单晶到单晶转化增强金属有机框架中的质子传导

IF 4.7 2区 化学 Q1 CHEMISTRY, INORGANIC & NUCLEAR
Cai-Xia Yu, Hao Wu, Zhichao Shao*, Ming-Jun Gao, Xue-Qin Sun and Lei-Lei Liu*,
{"title":"通过单晶到单晶转化增强金属有机框架中的质子传导","authors":"Cai-Xia Yu,&nbsp;Hao Wu,&nbsp;Zhichao Shao*,&nbsp;Ming-Jun Gao,&nbsp;Xue-Qin Sun and Lei-Lei Liu*,&nbsp;","doi":"10.1021/acs.inorgchem.4c0516910.1021/acs.inorgchem.4c05169","DOIUrl":null,"url":null,"abstract":"<p >In this work, an anionic framework Co-MOF (<b>1</b>) was elaborately constructed, which underwent single-crystal-to-single-crystal (SC-SC) transformation to produce <b>1-Cr</b> and <b>1-Fe</b> after immersion in a CrCl<sub>3</sub> or FeCl<sub>3</sub> solution. Despite the similar crystal structure, the significantly enhanced proton conductivities of <b>1-Cr</b> and <b>1-Fe</b> far exceed that of <b>1</b> at all humidity and temperature conditions. Even at 30 °C and 98% RH, the proton conductivity of <b>1-Cr</b> and <b>1-Fe</b> can reach up to high values of 1.49 × 10<sup>–2</sup> and 6.39 × 10<sup>–3</sup> S cm<sup>–1</sup>, respectively, surpassing that of <b>1</b> by over 5000 times under identical conditions. The partial alteration of the proton-conducting carriers from metal-water cluster [Co(H<sub>2</sub>O)<sub>6</sub>]·6H<sub>2</sub>O] (<b>1</b>) to metal-hydroxyl-water clusters [Cr(OH)<sub>4</sub>(H<sub>2</sub>O)<sub>2</sub>]·6H<sub>2</sub>O] (<b>1-Cr</b>) and [Fe(OH)<sub>4</sub>(H<sub>2</sub>O)<sub>2</sub>]·6H<sub>2</sub>O] (<b>1-Fe</b>) can be attributed for the above-mentioned enhanced performance. The introduction of hydroxyl by SC-SC transformation can establish interconnected proton conduction pathways within the proton channels, which greatly facilitate proton conduction, affording much lower activation energies (0.12 eV for <b>1-Cr</b>, 0.18 eV for <b>1-Fe</b>, and 0.28 eV for <b>1</b>). This research demonstrated that SC-SC transformation not only achieved significantly improved proton conduction but also contributed to a deeper understanding of the structure–property relationships, providing new insights into the design of advanced materials with enhanced proton conductivity.</p>","PeriodicalId":40,"journal":{"name":"Inorganic Chemistry","volume":"64 8","pages":"3908–3916 3908–3916"},"PeriodicalIF":4.7000,"publicationDate":"2025-02-13","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Enhanced Proton Conduction in Metal–Organic Frameworks through Single-Crystal to Single-Crystal Transformation\",\"authors\":\"Cai-Xia Yu,&nbsp;Hao Wu,&nbsp;Zhichao Shao*,&nbsp;Ming-Jun Gao,&nbsp;Xue-Qin Sun and Lei-Lei Liu*,&nbsp;\",\"doi\":\"10.1021/acs.inorgchem.4c0516910.1021/acs.inorgchem.4c05169\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >In this work, an anionic framework Co-MOF (<b>1</b>) was elaborately constructed, which underwent single-crystal-to-single-crystal (SC-SC) transformation to produce <b>1-Cr</b> and <b>1-Fe</b> after immersion in a CrCl<sub>3</sub> or FeCl<sub>3</sub> solution. Despite the similar crystal structure, the significantly enhanced proton conductivities of <b>1-Cr</b> and <b>1-Fe</b> far exceed that of <b>1</b> at all humidity and temperature conditions. Even at 30 °C and 98% RH, the proton conductivity of <b>1-Cr</b> and <b>1-Fe</b> can reach up to high values of 1.49 × 10<sup>–2</sup> and 6.39 × 10<sup>–3</sup> S cm<sup>–1</sup>, respectively, surpassing that of <b>1</b> by over 5000 times under identical conditions. The partial alteration of the proton-conducting carriers from metal-water cluster [Co(H<sub>2</sub>O)<sub>6</sub>]·6H<sub>2</sub>O] (<b>1</b>) to metal-hydroxyl-water clusters [Cr(OH)<sub>4</sub>(H<sub>2</sub>O)<sub>2</sub>]·6H<sub>2</sub>O] (<b>1-Cr</b>) and [Fe(OH)<sub>4</sub>(H<sub>2</sub>O)<sub>2</sub>]·6H<sub>2</sub>O] (<b>1-Fe</b>) can be attributed for the above-mentioned enhanced performance. The introduction of hydroxyl by SC-SC transformation can establish interconnected proton conduction pathways within the proton channels, which greatly facilitate proton conduction, affording much lower activation energies (0.12 eV for <b>1-Cr</b>, 0.18 eV for <b>1-Fe</b>, and 0.28 eV for <b>1</b>). This research demonstrated that SC-SC transformation not only achieved significantly improved proton conduction but also contributed to a deeper understanding of the structure–property relationships, providing new insights into the design of advanced materials with enhanced proton conductivity.</p>\",\"PeriodicalId\":40,\"journal\":{\"name\":\"Inorganic Chemistry\",\"volume\":\"64 8\",\"pages\":\"3908–3916 3908–3916\"},\"PeriodicalIF\":4.7000,\"publicationDate\":\"2025-02-13\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Inorganic Chemistry\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acs.inorgchem.4c05169\",\"RegionNum\":2,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, INORGANIC & NUCLEAR\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Inorganic Chemistry","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.inorgchem.4c05169","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, INORGANIC & NUCLEAR","Score":null,"Total":0}
引用次数: 0

摘要

这项研究精心构建了一种阴离子框架 Co-MOF(1),将其浸入氯化铬或氯化铁溶液后,经过单晶到单晶(SC-SC)转变,生成了 1-Cr 和 1-Fe。尽管晶体结构相似,但在所有湿度和温度条件下,1-Cr 和 1-Fe 的质子传导性都显著增强,远远超过了 1。即使在 30 °C 和 98% 相对湿度条件下,1-Cr 和 1-Fe 的质子电导率也能分别达到 1.49 × 10-2 和 6.39 × 10-3 S cm-1 的高值,比相同条件下的 1 高出 5000 多倍。质子传导载体从金属-水簇[Co(H2O)6]-6H2O](1)部分转变为金属-羟基-水簇[Cr(OH)4(H2O)2]-6H2O](1-Cr)和[Fe(OH)4(H2O)2]-6H2O](1-Fe)可归因于上述性能的提高。通过 SC-SC 转化引入羟基,可在质子通道内建立相互连接的质子传导通路,从而大大促进质子传导,使活化能大大降低(1-Cr 为 0.12 eV,1-Fe 为 0.18 eV,1 为 0.28 eV)。这项研究表明,SC-SC 转换不仅显著改善了质子传导,而且有助于加深对结构-性能关系的理解,为设计具有更强质子传导性的先进材料提供了新的见解。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Enhanced Proton Conduction in Metal–Organic Frameworks through Single-Crystal to Single-Crystal Transformation

Enhanced Proton Conduction in Metal–Organic Frameworks through Single-Crystal to Single-Crystal Transformation

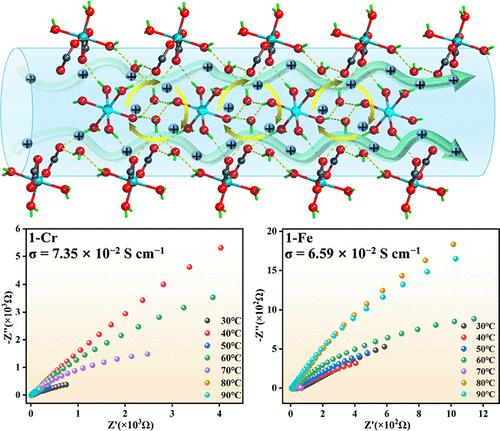

In this work, an anionic framework Co-MOF (1) was elaborately constructed, which underwent single-crystal-to-single-crystal (SC-SC) transformation to produce 1-Cr and 1-Fe after immersion in a CrCl3 or FeCl3 solution. Despite the similar crystal structure, the significantly enhanced proton conductivities of 1-Cr and 1-Fe far exceed that of 1 at all humidity and temperature conditions. Even at 30 °C and 98% RH, the proton conductivity of 1-Cr and 1-Fe can reach up to high values of 1.49 × 10–2 and 6.39 × 10–3 S cm–1, respectively, surpassing that of 1 by over 5000 times under identical conditions. The partial alteration of the proton-conducting carriers from metal-water cluster [Co(H2O)6]·6H2O] (1) to metal-hydroxyl-water clusters [Cr(OH)4(H2O)2]·6H2O] (1-Cr) and [Fe(OH)4(H2O)2]·6H2O] (1-Fe) can be attributed for the above-mentioned enhanced performance. The introduction of hydroxyl by SC-SC transformation can establish interconnected proton conduction pathways within the proton channels, which greatly facilitate proton conduction, affording much lower activation energies (0.12 eV for 1-Cr, 0.18 eV for 1-Fe, and 0.28 eV for 1). This research demonstrated that SC-SC transformation not only achieved significantly improved proton conduction but also contributed to a deeper understanding of the structure–property relationships, providing new insights into the design of advanced materials with enhanced proton conductivity.
