弯曲预应力混凝土箱梁桥的有限元计算分析。

IF 3.9 2区 综合性期刊 Q1 MULTIDISCIPLINARY SCIENCES
Shubhi Ojha, Priyaranjan Pal, P K Mehta
{"title":"弯曲预应力混凝土箱梁桥的有限元计算分析。","authors":"Shubhi Ojha, Priyaranjan Pal, P K Mehta","doi":"10.1038/s41598-025-91172-z","DOIUrl":null,"url":null,"abstract":"<p><p>The study employs finite element method to examine the effects of curve angle variations on the behavior of single and double-cell prestressed concrete box-girder bridges. A total of eighty bridge models were examined, featuring a range of curve angles from 0 to 60°, with increments of 12° between each model (0°, 12°, 24°, 36°, 48°, and 60°). The study revealed that bridges with curve angles of 24° or less exhibit minimal impact on forces, suggesting that they can be effectively treated as straight bridges for analytical purposes. The study revealed a marked change in structural response for bridges with curve angles greater than 24°, highlighting the influence of increased curvature on bridge behavior. A comprehensive evaluation was conducted to investigate the influence of changes in curve angles, span lengths, cell numbers, and span-depth ratios on structural forces and deflections under various load types, including dead, live, and prestressed loads. As the curve angle increases, a corresponding decrease in the flexural moment and vertical deflection is observed under prestressed loading conditions. Based on the analysis, it is reasonable to conclude that prestressed concrete box-girder bridges are best suited for applications involving higher curve angles.</p>","PeriodicalId":21811,"journal":{"name":"Scientific Reports","volume":"15 1","pages":"7050"},"PeriodicalIF":3.9000,"publicationDate":"2025-02-27","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11868548/pdf/","citationCount":"0","resultStr":"{\"title\":\"Computational analysis of curved prestressed concrete box-girder bridges using finite element method.\",\"authors\":\"Shubhi Ojha, Priyaranjan Pal, P K Mehta\",\"doi\":\"10.1038/s41598-025-91172-z\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p>The study employs finite element method to examine the effects of curve angle variations on the behavior of single and double-cell prestressed concrete box-girder bridges. A total of eighty bridge models were examined, featuring a range of curve angles from 0 to 60°, with increments of 12° between each model (0°, 12°, 24°, 36°, 48°, and 60°). The study revealed that bridges with curve angles of 24° or less exhibit minimal impact on forces, suggesting that they can be effectively treated as straight bridges for analytical purposes. The study revealed a marked change in structural response for bridges with curve angles greater than 24°, highlighting the influence of increased curvature on bridge behavior. A comprehensive evaluation was conducted to investigate the influence of changes in curve angles, span lengths, cell numbers, and span-depth ratios on structural forces and deflections under various load types, including dead, live, and prestressed loads. As the curve angle increases, a corresponding decrease in the flexural moment and vertical deflection is observed under prestressed loading conditions. Based on the analysis, it is reasonable to conclude that prestressed concrete box-girder bridges are best suited for applications involving higher curve angles.</p>\",\"PeriodicalId\":21811,\"journal\":{\"name\":\"Scientific Reports\",\"volume\":\"15 1\",\"pages\":\"7050\"},\"PeriodicalIF\":3.9000,\"publicationDate\":\"2025-02-27\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11868548/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Scientific Reports\",\"FirstCategoryId\":\"103\",\"ListUrlMain\":\"https://doi.org/10.1038/s41598-025-91172-z\",\"RegionNum\":2,\"RegionCategory\":\"综合性期刊\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MULTIDISCIPLINARY SCIENCES\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Scientific Reports","FirstCategoryId":"103","ListUrlMain":"https://doi.org/10.1038/s41598-025-91172-z","RegionNum":2,"RegionCategory":"综合性期刊","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MULTIDISCIPLINARY SCIENCES","Score":null,"Total":0}
引用次数: 0

摘要

采用有限元方法研究了曲线角变化对单室和双室预应力混凝土箱梁桥性能的影响。总共检查了80个桥梁模型,具有从0到60°的曲线角度范围,每个模型之间的增量为12°(0°,12°,24°,36°,48°和60°)。研究表明,曲线角度为24°或更小的桥梁对力的影响最小,这表明它们可以有效地作为直桥进行分析。研究表明,弯曲角大于24°的桥梁结构响应发生了显著变化,突出了曲率增加对桥梁行为的影响。在各种荷载类型下,包括死荷载、活荷载和预应力荷载,对曲线角度、跨度长度、单元数和跨深比的变化对结构力和挠度的影响进行了综合评估。随着曲线角度的增大,预应力加载条件下的弯矩和竖向挠度相应减小。通过分析,可以合理地得出预应力混凝土箱梁桥最适合于曲线角度较大的应用。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Computational analysis of curved prestressed concrete box-girder bridges using finite element method.

Computational analysis of curved prestressed concrete box-girder bridges using finite element method.

Computational analysis of curved prestressed concrete box-girder bridges using finite element method.

Computational analysis of curved prestressed concrete box-girder bridges using finite element method.

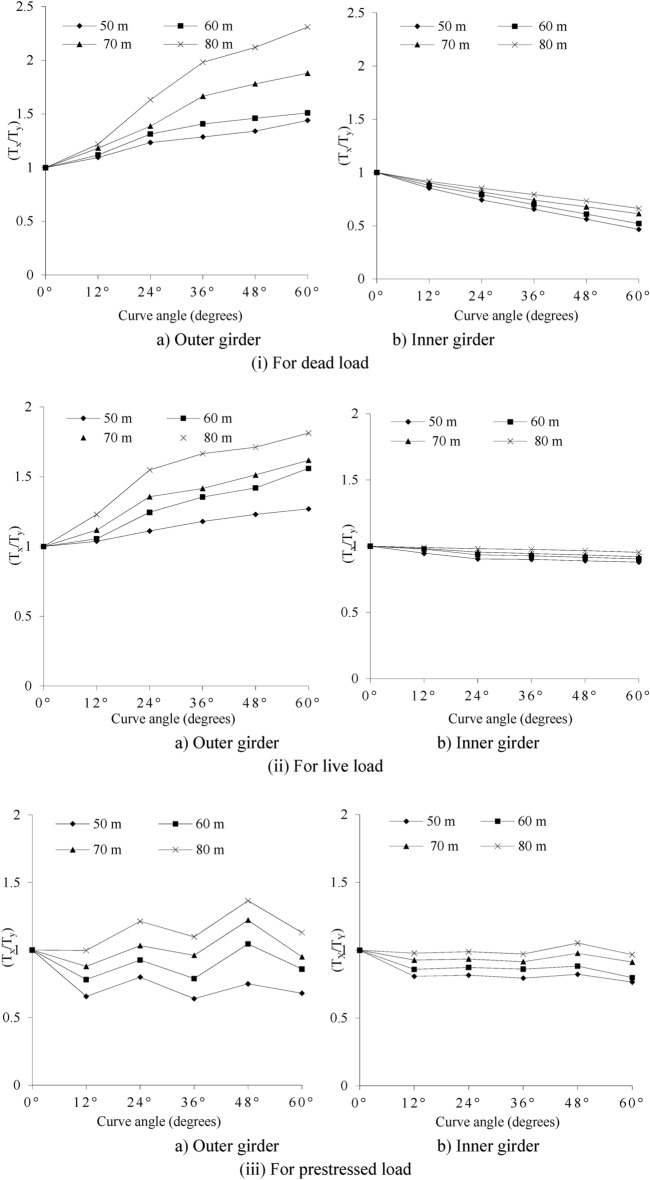

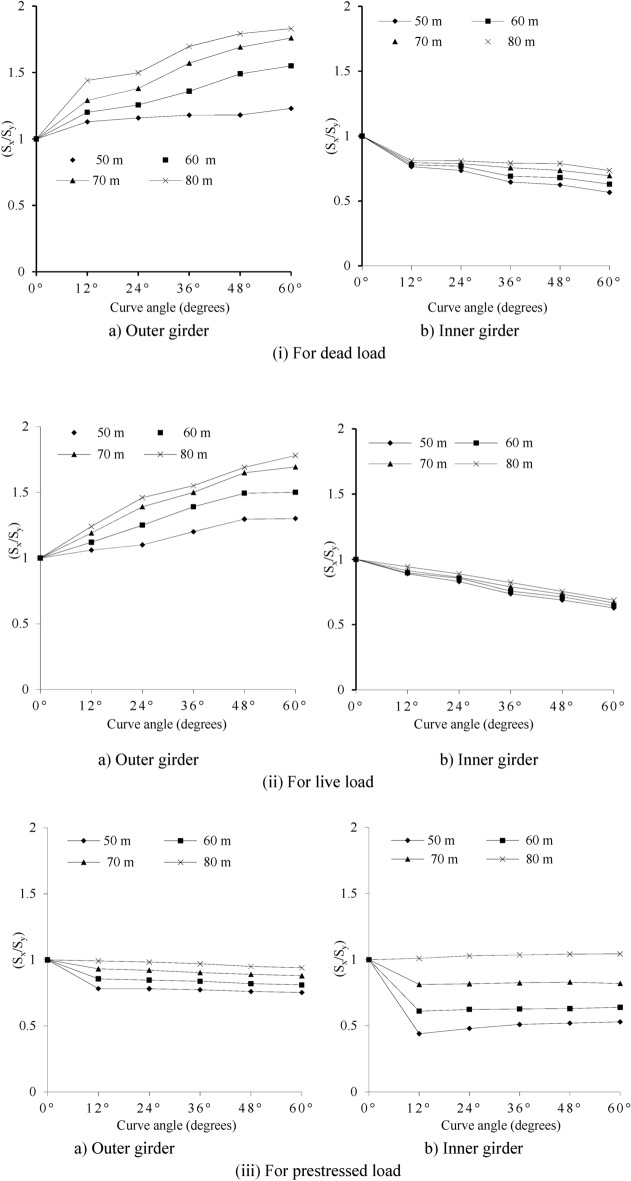

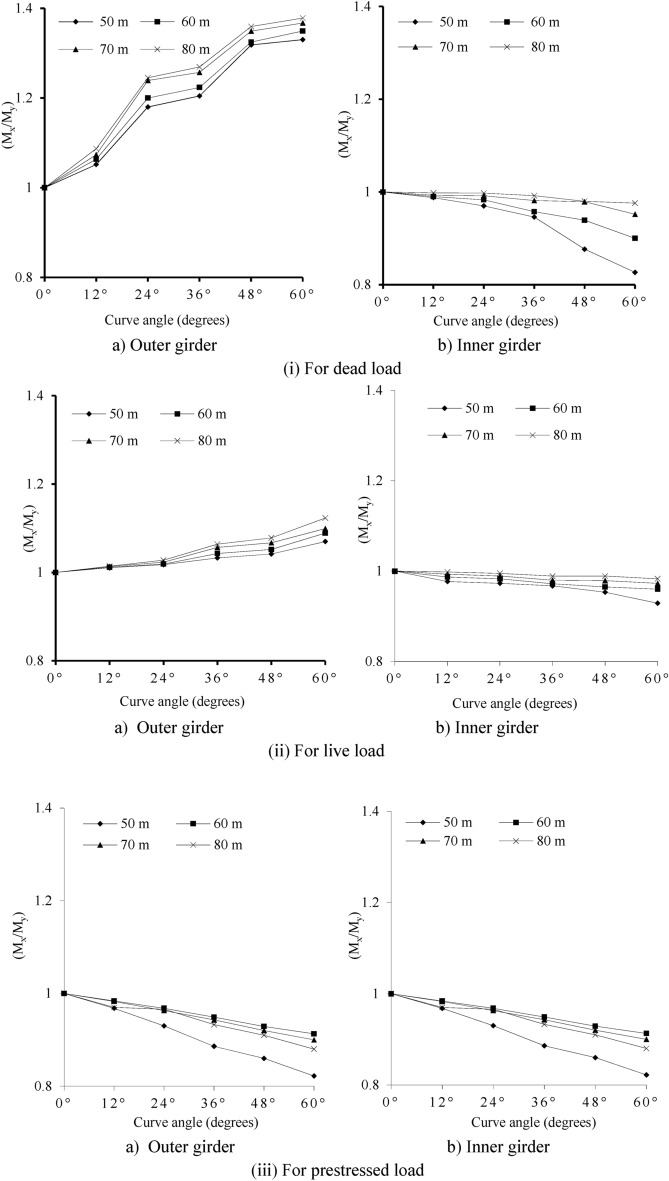

The study employs finite element method to examine the effects of curve angle variations on the behavior of single and double-cell prestressed concrete box-girder bridges. A total of eighty bridge models were examined, featuring a range of curve angles from 0 to 60°, with increments of 12° between each model (0°, 12°, 24°, 36°, 48°, and 60°). The study revealed that bridges with curve angles of 24° or less exhibit minimal impact on forces, suggesting that they can be effectively treated as straight bridges for analytical purposes. The study revealed a marked change in structural response for bridges with curve angles greater than 24°, highlighting the influence of increased curvature on bridge behavior. A comprehensive evaluation was conducted to investigate the influence of changes in curve angles, span lengths, cell numbers, and span-depth ratios on structural forces and deflections under various load types, including dead, live, and prestressed loads. As the curve angle increases, a corresponding decrease in the flexural moment and vertical deflection is observed under prestressed loading conditions. Based on the analysis, it is reasonable to conclude that prestressed concrete box-girder bridges are best suited for applications involving higher curve angles.
