通过埋藏界面工程实现接触电位均匀化实现高性能宽禁带钙钛矿光伏

IF 19 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Yaxiong Guo, Shengjie Du, Weiqing Chen, Hai Zhou, Guoyi Chen, Shuxin Wang, Zixi Yu, Xuzhi Hu, Fang Yao, Chun Li, Weijun Ke, Guojia Fang
{"title":"通过埋藏界面工程实现接触电位均匀化实现高性能宽禁带钙钛矿光伏","authors":"Yaxiong Guo,&nbsp;Shengjie Du,&nbsp;Weiqing Chen,&nbsp;Hai Zhou,&nbsp;Guoyi Chen,&nbsp;Shuxin Wang,&nbsp;Zixi Yu,&nbsp;Xuzhi Hu,&nbsp;Fang Yao,&nbsp;Chun Li,&nbsp;Weijun Ke,&nbsp;Guojia Fang","doi":"10.1002/adfm.202500168","DOIUrl":null,"url":null,"abstract":"<p>Microscale imperfections and inhomogeneity at buried interface leads to energy losses and insufficient carrier extraction of wide bandgap (WBG) perovskite solar cells (PSCs). Here, we report a collaborative buried interface strategy by introducing 3-aminopropanoic acid (3-APA) to mix with [4-(3,6-dimethyl-9H-carbazol-9-yl)butyl]phosphonic acid (Me-4PACz) as hole-selective self-assembled monolayer (SAM). With the addition of 3-APA, the wettability of perovskite precursors is increased. Furthermore, the film morphology and heterogeneity at perovskite buried interface is improved. As a result, the nonradiative recombination and interfacial energy loss are greatly suppressed. This strategy also leads to marginally higher ionization potential of hole-selective monolayers, approximating to the valence band of perovskite film. Benefits from suppressed charge transfer loss and nonradiative recombination loss, the mixed SAM strategy is present to overcome the passivation transport trade-off, delivering <i>V</i><sub>OC</sub> × FF of 84.5% of the S–Q limit. The combine benefits enable efficient 1.67 eV WBG PSCs with a power conversion efficiency of 22.4% and a high open circuit voltage of 1.255 V and fill factor of 85.5%. Under mix SAM strategy, we also demonstrat all-perovskite tandem solar cells with efficiency of 28.4%.</p>","PeriodicalId":112,"journal":{"name":"Advanced Functional Materials","volume":"35 29","pages":""},"PeriodicalIF":19.0000,"publicationDate":"2025-02-25","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Contact Potential Homogenization via Buried Interface Engineering Enables High-Performance Wide-Bandgap Perovskite Photovoltaics\",\"authors\":\"Yaxiong Guo,&nbsp;Shengjie Du,&nbsp;Weiqing Chen,&nbsp;Hai Zhou,&nbsp;Guoyi Chen,&nbsp;Shuxin Wang,&nbsp;Zixi Yu,&nbsp;Xuzhi Hu,&nbsp;Fang Yao,&nbsp;Chun Li,&nbsp;Weijun Ke,&nbsp;Guojia Fang\",\"doi\":\"10.1002/adfm.202500168\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Microscale imperfections and inhomogeneity at buried interface leads to energy losses and insufficient carrier extraction of wide bandgap (WBG) perovskite solar cells (PSCs). Here, we report a collaborative buried interface strategy by introducing 3-aminopropanoic acid (3-APA) to mix with [4-(3,6-dimethyl-9H-carbazol-9-yl)butyl]phosphonic acid (Me-4PACz) as hole-selective self-assembled monolayer (SAM). With the addition of 3-APA, the wettability of perovskite precursors is increased. Furthermore, the film morphology and heterogeneity at perovskite buried interface is improved. As a result, the nonradiative recombination and interfacial energy loss are greatly suppressed. This strategy also leads to marginally higher ionization potential of hole-selective monolayers, approximating to the valence band of perovskite film. Benefits from suppressed charge transfer loss and nonradiative recombination loss, the mixed SAM strategy is present to overcome the passivation transport trade-off, delivering <i>V</i><sub>OC</sub> × FF of 84.5% of the S–Q limit. The combine benefits enable efficient 1.67 eV WBG PSCs with a power conversion efficiency of 22.4% and a high open circuit voltage of 1.255 V and fill factor of 85.5%. Under mix SAM strategy, we also demonstrat all-perovskite tandem solar cells with efficiency of 28.4%.</p>\",\"PeriodicalId\":112,\"journal\":{\"name\":\"Advanced Functional Materials\",\"volume\":\"35 29\",\"pages\":\"\"},\"PeriodicalIF\":19.0000,\"publicationDate\":\"2025-02-25\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Advanced Functional Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://advanced.onlinelibrary.wiley.com/doi/10.1002/adfm.202500168\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Functional Materials","FirstCategoryId":"88","ListUrlMain":"https://advanced.onlinelibrary.wiley.com/doi/10.1002/adfm.202500168","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

宽禁带钙钛矿太阳能电池(PSCs)的微尺度缺陷和埋藏界面的不均匀性导致能量损失和载流子提取不足。在这里,我们报道了一种协同埋藏界面策略,通过引入3-氨基丙烷酸(3- apa)与[4-(3,6-二甲基- 9h -咔唑-9-基)丁基]膦酸(Me-4PACz)混合作为孔选择性自组装单层(SAM)。3-APA的加入提高了钙钛矿前驱体的润湿性。此外,还改善了钙钛矿埋藏界面的膜形态和非均质性。因此,非辐射复合和界面能损失被大大抑制。这一策略也导致孔选择性单层的电离电位略高,接近钙钛矿膜的价带。得益于抑制电荷转移损失和非辐射复合损失,混合SAM策略克服了钝化传输权衡,VOC × FF达到S-Q限值的84.5%。这些优点使得高效的1.67 eV WBG PSCs具有22.4%的功率转换效率,1.255 V的高开路电压和85.5%的填充因子。在混合SAM策略下,我们还展示了效率为28.4%的全钙钛矿串联太阳能电池。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Contact Potential Homogenization via Buried Interface Engineering Enables High-Performance Wide-Bandgap Perovskite Photovoltaics

Contact Potential Homogenization via Buried Interface Engineering Enables High-Performance Wide-Bandgap Perovskite Photovoltaics

Contact Potential Homogenization via Buried Interface Engineering Enables High-Performance Wide-Bandgap Perovskite Photovoltaics

Contact Potential Homogenization via Buried Interface Engineering Enables High-Performance Wide-Bandgap Perovskite Photovoltaics

Contact Potential Homogenization via Buried Interface Engineering Enables High-Performance Wide-Bandgap Perovskite Photovoltaics

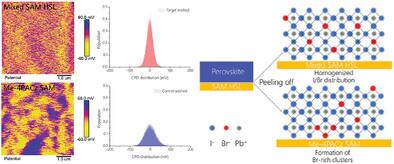

Microscale imperfections and inhomogeneity at buried interface leads to energy losses and insufficient carrier extraction of wide bandgap (WBG) perovskite solar cells (PSCs). Here, we report a collaborative buried interface strategy by introducing 3-aminopropanoic acid (3-APA) to mix with [4-(3,6-dimethyl-9H-carbazol-9-yl)butyl]phosphonic acid (Me-4PACz) as hole-selective self-assembled monolayer (SAM). With the addition of 3-APA, the wettability of perovskite precursors is increased. Furthermore, the film morphology and heterogeneity at perovskite buried interface is improved. As a result, the nonradiative recombination and interfacial energy loss are greatly suppressed. This strategy also leads to marginally higher ionization potential of hole-selective monolayers, approximating to the valence band of perovskite film. Benefits from suppressed charge transfer loss and nonradiative recombination loss, the mixed SAM strategy is present to overcome the passivation transport trade-off, delivering VOC × FF of 84.5% of the S–Q limit. The combine benefits enable efficient 1.67 eV WBG PSCs with a power conversion efficiency of 22.4% and a high open circuit voltage of 1.255 V and fill factor of 85.5%. Under mix SAM strategy, we also demonstrat all-perovskite tandem solar cells with efficiency of 28.4%.
