室温下SnSe2/MWCNT复合传感器对二甲苯和二氧化氮的双重鉴别及紫外增强回收

IF 4.7 3区 材料科学 Q1 ENGINEERING, ELECTRICAL & ELECTRONIC
Imtej Singh Saggu, Lovepreet Singh, Sunil Singh Kushvaha, Mandeep Singh* and Sandeep Sharma*,
{"title":"室温下SnSe2/MWCNT复合传感器对二甲苯和二氧化氮的双重鉴别及紫外增强回收","authors":"Imtej Singh Saggu,&nbsp;Lovepreet Singh,&nbsp;Sunil Singh Kushvaha,&nbsp;Mandeep Singh* and Sandeep Sharma*,&nbsp;","doi":"10.1021/acsaelm.4c0227210.1021/acsaelm.4c02272","DOIUrl":null,"url":null,"abstract":"<p >Xylene and NO<sub>2</sub> are two prominent instances of indoor and outdoor pollutants, which directly affect human health. Detecting xylene at room temperature is difficult because of its nonpolar and less reactive nature. Tin diselenide (SnSe<sub>2</sub>) has been determined to be a potential xylene and NO<sub>2</sub> sensor. But its room temperature conductivity results in poor sensitivity and slow recovery rates, which limits its practical application. To address this issue, we describe a low-cost, dual-sensitive and discriminant xylene and NO<sub>2</sub> gas sensor that employs tin diselenide/multiwalled carbon nanotube (SnSe<sub>2</sub>/MWCNT) nanocomposite as the sensing element. The nanocomposite demonstrated substantially higher conductivity than that of pure SnSe<sub>2</sub>. When exposed to xylene/NO<sub>2</sub>, an oxidizing/reducing gas, the sensor shows an increase/decrease in resistance and exhibits overall p-type conduction, evaluated by independent Mott–Schottky measurements. At room temperature of 30 °C, the sensor device has a relative response of about ≈0.77% (0.18%) and 2.25% for 50 ppm (1 ppm) and 800 ppb of xylene and NO<sub>2</sub>, respectively, with complete recovery in air (261 s) for xylene. In the case of NO<sub>2</sub>, the complete recovery in ambient conditions required nearly 28 min, which significantly improves with ultraviolet (UV) activation to about ≈4 min. The theoretical lower limit (LOD) for xylene and NO<sub>2</sub> is estimated to be around 580 and 0.97 ppb, respectively. The proposed SnSe<sub>2</sub>-MWCNT nanocomposite offers an effective sensing platform for the detection of these analytes. Its superior sensing qualities promote quick charge transfer, and dual discrimination along with exceptional repeatability, long-term stability, and reproducibility, thereby making it a viable alternative for monitoring pollutants.</p>","PeriodicalId":3,"journal":{"name":"ACS Applied Electronic Materials","volume":"7 4","pages":"1645–1660 1645–1660"},"PeriodicalIF":4.7000,"publicationDate":"2025-02-14","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Dual Discrimination of Xylene and NO2 with UV-Boosted Recovery at Room Temperature Using SnSe2/MWCNT Composite-Based Sensors\",\"authors\":\"Imtej Singh Saggu,&nbsp;Lovepreet Singh,&nbsp;Sunil Singh Kushvaha,&nbsp;Mandeep Singh* and Sandeep Sharma*,&nbsp;\",\"doi\":\"10.1021/acsaelm.4c0227210.1021/acsaelm.4c02272\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Xylene and NO<sub>2</sub> are two prominent instances of indoor and outdoor pollutants, which directly affect human health. Detecting xylene at room temperature is difficult because of its nonpolar and less reactive nature. Tin diselenide (SnSe<sub>2</sub>) has been determined to be a potential xylene and NO<sub>2</sub> sensor. But its room temperature conductivity results in poor sensitivity and slow recovery rates, which limits its practical application. To address this issue, we describe a low-cost, dual-sensitive and discriminant xylene and NO<sub>2</sub> gas sensor that employs tin diselenide/multiwalled carbon nanotube (SnSe<sub>2</sub>/MWCNT) nanocomposite as the sensing element. The nanocomposite demonstrated substantially higher conductivity than that of pure SnSe<sub>2</sub>. When exposed to xylene/NO<sub>2</sub>, an oxidizing/reducing gas, the sensor shows an increase/decrease in resistance and exhibits overall p-type conduction, evaluated by independent Mott–Schottky measurements. At room temperature of 30 °C, the sensor device has a relative response of about ≈0.77% (0.18%) and 2.25% for 50 ppm (1 ppm) and 800 ppb of xylene and NO<sub>2</sub>, respectively, with complete recovery in air (261 s) for xylene. In the case of NO<sub>2</sub>, the complete recovery in ambient conditions required nearly 28 min, which significantly improves with ultraviolet (UV) activation to about ≈4 min. The theoretical lower limit (LOD) for xylene and NO<sub>2</sub> is estimated to be around 580 and 0.97 ppb, respectively. The proposed SnSe<sub>2</sub>-MWCNT nanocomposite offers an effective sensing platform for the detection of these analytes. Its superior sensing qualities promote quick charge transfer, and dual discrimination along with exceptional repeatability, long-term stability, and reproducibility, thereby making it a viable alternative for monitoring pollutants.</p>\",\"PeriodicalId\":3,\"journal\":{\"name\":\"ACS Applied Electronic Materials\",\"volume\":\"7 4\",\"pages\":\"1645–1660 1645–1660\"},\"PeriodicalIF\":4.7000,\"publicationDate\":\"2025-02-14\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Electronic Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsaelm.4c02272\",\"RegionNum\":3,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"ENGINEERING, ELECTRICAL & ELECTRONIC\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Electronic Materials","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsaelm.4c02272","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, ELECTRICAL & ELECTRONIC","Score":null,"Total":0}
引用次数: 0

摘要

二甲苯和二氧化氮是室内和室外污染物的两个突出例子,直接影响人体健康。在室温下检测二甲苯是困难的,因为它的非极性和不活泼的性质。二硒化锡(SnSe2)已被确定为一种潜在的二甲苯和二氧化氮传感器。但其室温导电性导致其灵敏度差,回收率慢,限制了其实际应用。为了解决这一问题,我们描述了一种低成本、双灵敏和判别二甲苯和二氧化氮气体传感器,该传感器采用二硒化锡/多壁碳纳米管(SnSe2/MWCNT)纳米复合材料作为传感元件。该纳米复合材料的电导率明显高于纯SnSe2。当暴露于二甲苯/NO2,一种氧化/还原气体,传感器显示增加/减少电阻,并显示整体p型传导,通过独立的莫特-肖特基测量评估。在室温30℃下,当二甲苯和NO2浓度分别为50 ppm (1 ppm)和800 ppb时,传感器装置的相对响应分别约为≈0.77%(0.18%)和2.25%,二甲苯在空气中完全回收(261 s)。对于NO2,在环境条件下完全回收需要近28分钟,在紫外线(UV)活化下显著提高到约≈4分钟。二甲苯和NO2的理论下限(LOD)估计分别约为580和0.97 ppb。所提出的SnSe2-MWCNT纳米复合材料为检测这些分析物提供了一个有效的传感平台。其优越的传感品质促进快速电荷转移,双重辨别以及卓越的可重复性,长期稳定性和可重复性,从而使其成为监测污染物的可行替代方案。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Dual Discrimination of Xylene and NO2 with UV-Boosted Recovery at Room Temperature Using SnSe2/MWCNT Composite-Based Sensors

Dual Discrimination of Xylene and NO2 with UV-Boosted Recovery at Room Temperature Using SnSe2/MWCNT Composite-Based Sensors

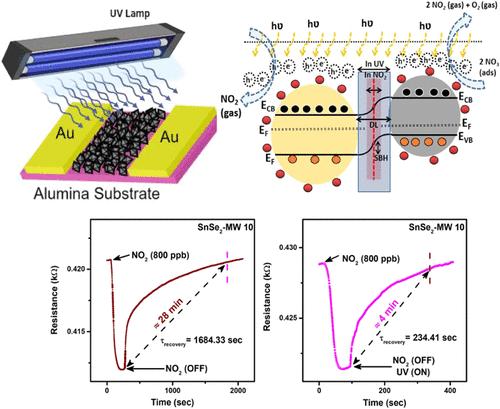

Xylene and NO2 are two prominent instances of indoor and outdoor pollutants, which directly affect human health. Detecting xylene at room temperature is difficult because of its nonpolar and less reactive nature. Tin diselenide (SnSe2) has been determined to be a potential xylene and NO2 sensor. But its room temperature conductivity results in poor sensitivity and slow recovery rates, which limits its practical application. To address this issue, we describe a low-cost, dual-sensitive and discriminant xylene and NO2 gas sensor that employs tin diselenide/multiwalled carbon nanotube (SnSe2/MWCNT) nanocomposite as the sensing element. The nanocomposite demonstrated substantially higher conductivity than that of pure SnSe2. When exposed to xylene/NO2, an oxidizing/reducing gas, the sensor shows an increase/decrease in resistance and exhibits overall p-type conduction, evaluated by independent Mott–Schottky measurements. At room temperature of 30 °C, the sensor device has a relative response of about ≈0.77% (0.18%) and 2.25% for 50 ppm (1 ppm) and 800 ppb of xylene and NO2, respectively, with complete recovery in air (261 s) for xylene. In the case of NO2, the complete recovery in ambient conditions required nearly 28 min, which significantly improves with ultraviolet (UV) activation to about ≈4 min. The theoretical lower limit (LOD) for xylene and NO2 is estimated to be around 580 and 0.97 ppb, respectively. The proposed SnSe2-MWCNT nanocomposite offers an effective sensing platform for the detection of these analytes. Its superior sensing qualities promote quick charge transfer, and dual discrimination along with exceptional repeatability, long-term stability, and reproducibility, thereby making it a viable alternative for monitoring pollutants.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
CiteScore
7.20
自引率
4.30%
发文量
567
期刊介绍: ACS Applied Electronic Materials is an interdisciplinary journal publishing original research covering all aspects of electronic materials. The journal is devoted to reports of new and original experimental and theoretical research of an applied nature that integrate knowledge in the areas of materials science, engineering, optics, physics, and chemistry into important applications of electronic materials. Sample research topics that span the journal's scope are inorganic, organic, ionic and polymeric materials with properties that include conducting, semiconducting, superconducting, insulating, dielectric, magnetic, optoelectronic, piezoelectric, ferroelectric and thermoelectric. Indexed/​Abstracted: Web of Science SCIE Scopus CAS INSPEC Portico
×
