基于深度学习的64cu - dota -美罗华单抗单次扫描器官剂量测定

IF 3.9 2区 综合性期刊 Q1 MULTIDISCIPLINARY SCIENCES
Kangsan Kim, Jingyu Yang, Muath Almaslamani, Chi Soo Kang, Inki Lee, Ilhan Lim, Sang-Keun Woo

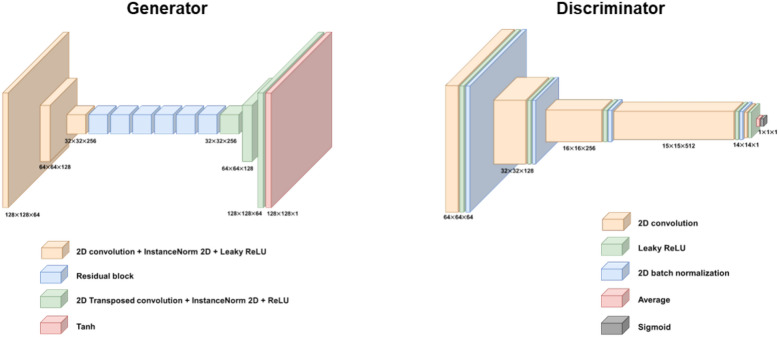

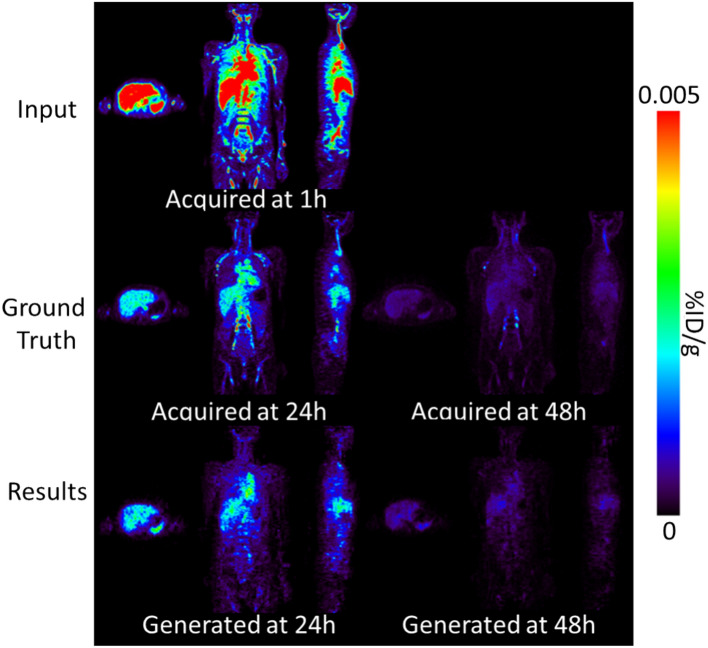

{"title":"基于深度学习的64cu - dota -美罗华单抗单次扫描器官剂量测定","authors":"Kangsan Kim, Jingyu Yang, Muath Almaslamani, Chi Soo Kang, Inki Lee, Ilhan Lim, Sang-Keun Woo","doi":"10.1038/s41598-025-88498-z","DOIUrl":null,"url":null,"abstract":"<p><p>This study aimed to generate a delayed <sup>64</sup>Cu-dotatate (DOTA)-rituximab positron emission tomography (PET) image from its early-scanned image by deep learning to mitigate the inconvenience and cost of estimating absorbed radiopharmaceutical doses. We acquired PET images from six patients with malignancies at 1, 24, and 48 h post-injection (p. i.) with 8 mCi <sup>64</sup>Cu-DOTA-rituximab to fit a time-activity curve for dosimetry. We used a paired image-to-image translation (I2I) model based on a generative adversarial network to generate delayed images from early PET images. The image similarity function between the generated image and its ground truth was determined by comparing L1 and perceptual losses. We also applied organ-wise dosimetry to acquired and generated images using OLINDA/EXM. The quality of the generated images was good, even of tumors, when using the L1 loss function as an additional loss to the adversarial loss function. The organ-wise cumulative uptake and corresponding equivalent dose were estimated. Although the absorbed dose in some organs was accurately measured, predictions for organs associated with body clearance were relatively inaccurate. These results suggested that paired I2I can be used to alleviate burdensome dosimetry for radioimmunoconjugates.</p>","PeriodicalId":21811,"journal":{"name":"Scientific Reports","volume":"15 1","pages":"5627"},"PeriodicalIF":3.9000,"publicationDate":"2025-02-15","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11829985/pdf/","citationCount":"0","resultStr":"{\"title\":\"Deep learning-based organ-wise dosimetry of <sup>64</sup>Cu-DOTA-rituximab through only one scanning.\",\"authors\":\"Kangsan Kim, Jingyu Yang, Muath Almaslamani, Chi Soo Kang, Inki Lee, Ilhan Lim, Sang-Keun Woo\",\"doi\":\"10.1038/s41598-025-88498-z\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p>This study aimed to generate a delayed <sup>64</sup>Cu-dotatate (DOTA)-rituximab positron emission tomography (PET) image from its early-scanned image by deep learning to mitigate the inconvenience and cost of estimating absorbed radiopharmaceutical doses. We acquired PET images from six patients with malignancies at 1, 24, and 48 h post-injection (p. i.) with 8 mCi <sup>64</sup>Cu-DOTA-rituximab to fit a time-activity curve for dosimetry. We used a paired image-to-image translation (I2I) model based on a generative adversarial network to generate delayed images from early PET images. The image similarity function between the generated image and its ground truth was determined by comparing L1 and perceptual losses. We also applied organ-wise dosimetry to acquired and generated images using OLINDA/EXM. The quality of the generated images was good, even of tumors, when using the L1 loss function as an additional loss to the adversarial loss function. The organ-wise cumulative uptake and corresponding equivalent dose were estimated. Although the absorbed dose in some organs was accurately measured, predictions for organs associated with body clearance were relatively inaccurate. These results suggested that paired I2I can be used to alleviate burdensome dosimetry for radioimmunoconjugates.</p>\",\"PeriodicalId\":21811,\"journal\":{\"name\":\"Scientific Reports\",\"volume\":\"15 1\",\"pages\":\"5627\"},\"PeriodicalIF\":3.9000,\"publicationDate\":\"2025-02-15\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11829985/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Scientific Reports\",\"FirstCategoryId\":\"103\",\"ListUrlMain\":\"https://doi.org/10.1038/s41598-025-88498-z\",\"RegionNum\":2,\"RegionCategory\":\"综合性期刊\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MULTIDISCIPLINARY SCIENCES\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Scientific Reports","FirstCategoryId":"103","ListUrlMain":"https://doi.org/10.1038/s41598-025-88498-z","RegionNum":2,"RegionCategory":"综合性期刊","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MULTIDISCIPLINARY SCIENCES","Score":null,"Total":0}
引用次数: 0

摘要

本研究旨在通过深度学习从其早期扫描图像生成延迟的64cu - dotaate (DOTA)-rituximab正电子发射断层扫描(PET)图像,以减轻估计吸收放射性药物剂量的不便和成本。我们获得了6例恶性肿瘤患者在注射8mci 64cu - dota -利妥昔单抗后1、24和48小时的PET图像,以拟合时间-活性曲线,用于剂量测定。我们使用基于生成对抗网络的配对图像到图像翻译(I2I)模型从早期PET图像生成延迟图像。通过比较L1和感知损失,确定生成的图像与其真值之间的图像相似函数。我们还使用OLINDA/EXM对获取和生成的图像应用了器官剂量学。当使用L1损失函数作为对抗损失函数的附加损失时,生成的图像质量很好,即使是肿瘤。估计了各器官累积吸收量和相应的等效剂量。虽然某些器官的吸收剂量可以精确测量,但对与机体清除率相关的器官的预测相对不准确。这些结果表明,配对I2I可用于减轻放射免疫偶联物的繁重剂量测定。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Deep learning-based organ-wise dosimetry of <sup>64</sup>Cu-DOTA-rituximab through only one scanning.

Deep learning-based organ-wise dosimetry of <sup>64</sup>Cu-DOTA-rituximab through only one scanning.

Deep learning-based organ-wise dosimetry of <sup>64</sup>Cu-DOTA-rituximab through only one scanning.

Deep learning-based organ-wise dosimetry of 64Cu-DOTA-rituximab through only one scanning.

This study aimed to generate a delayed 64Cu-dotatate (DOTA)-rituximab positron emission tomography (PET) image from its early-scanned image by deep learning to mitigate the inconvenience and cost of estimating absorbed radiopharmaceutical doses. We acquired PET images from six patients with malignancies at 1, 24, and 48 h post-injection (p. i.) with 8 mCi 64Cu-DOTA-rituximab to fit a time-activity curve for dosimetry. We used a paired image-to-image translation (I2I) model based on a generative adversarial network to generate delayed images from early PET images. The image similarity function between the generated image and its ground truth was determined by comparing L1 and perceptual losses. We also applied organ-wise dosimetry to acquired and generated images using OLINDA/EXM. The quality of the generated images was good, even of tumors, when using the L1 loss function as an additional loss to the adversarial loss function. The organ-wise cumulative uptake and corresponding equivalent dose were estimated. Although the absorbed dose in some organs was accurately measured, predictions for organs associated with body clearance were relatively inaccurate. These results suggested that paired I2I can be used to alleviate burdensome dosimetry for radioimmunoconjugates.
