用于可拉伸电子导体的天然分子基湿敏可回收弹性体的一步聚合

IF 4.7 2区 化学 Q2 MATERIALS SCIENCE, MULTIDISCIPLINARY
Wenwen Zhang, Ying Sun, Shiyu Su, Maotao Tian, Chao Ye and Yanlei Hu*,
{"title":"用于可拉伸电子导体的天然分子基湿敏可回收弹性体的一步聚合","authors":"Wenwen Zhang,&nbsp;Ying Sun,&nbsp;Shiyu Su,&nbsp;Maotao Tian,&nbsp;Chao Ye and Yanlei Hu*,&nbsp;","doi":"10.1021/acsapm.4c0410910.1021/acsapm.4c04109","DOIUrl":null,"url":null,"abstract":"<p >Elastomer-based electronic devices can maintain electrochemical conductivity and mechanical performances simultaneously, revealing promising potential to construct stretchable sensors. While sensors with integrated functionalities such as extremely stretchable, wearable, and highly sensitive properties are still challenging. Herein, in current work, a natural molecule, thioctic acid (TA), is utilized to construct high-performance supramolecular polymeric elastomers with integrated functionalities by a lactic acid (LA)-assistant, simple, and effective one-step polymerization route. Poly(TA–LA) elastomers present moderate mechanical performance, reaching a stretchability of over 800% strain. And cyclic mechanical performance performs well under 200% strain as well, in which overlaps are found in cycle tensile curves. Moreover, poly(TA–LA) elastomers present excellent humidity sensitivity as well as recyclability, indicating promising potential toward multifunctional and environmentally friendly applications. Simple preparation route, multiple functionalities, and green feature endow poly(TA–LA) elastomers with outstanding application prospect as strain sensors when composited with PEDOT–PSS. Excellent conductivity sensitivity of poly(TA–LA)–PEDOT–PSS strain sensors in detecting mechanical deformations (especially strains at a small level from 0.5 to 5%) such as finger bending at various angles is evaluated. This work indicates an avenue toward constructing recyclable, stretchable, and wearable electronic devices for monitoring human movements in real time.</p>","PeriodicalId":7,"journal":{"name":"ACS Applied Polymer Materials","volume":"7 3","pages":"2134–2142 2134–2142"},"PeriodicalIF":4.7000,"publicationDate":"2025-01-29","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"One-Step Polymerization of Natural Molecule-Based Humidity-Sensitive and Recyclable Elastomers for Stretchable Electronic Conductors\",\"authors\":\"Wenwen Zhang,&nbsp;Ying Sun,&nbsp;Shiyu Su,&nbsp;Maotao Tian,&nbsp;Chao Ye and Yanlei Hu*,&nbsp;\",\"doi\":\"10.1021/acsapm.4c0410910.1021/acsapm.4c04109\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Elastomer-based electronic devices can maintain electrochemical conductivity and mechanical performances simultaneously, revealing promising potential to construct stretchable sensors. While sensors with integrated functionalities such as extremely stretchable, wearable, and highly sensitive properties are still challenging. Herein, in current work, a natural molecule, thioctic acid (TA), is utilized to construct high-performance supramolecular polymeric elastomers with integrated functionalities by a lactic acid (LA)-assistant, simple, and effective one-step polymerization route. Poly(TA–LA) elastomers present moderate mechanical performance, reaching a stretchability of over 800% strain. And cyclic mechanical performance performs well under 200% strain as well, in which overlaps are found in cycle tensile curves. Moreover, poly(TA–LA) elastomers present excellent humidity sensitivity as well as recyclability, indicating promising potential toward multifunctional and environmentally friendly applications. Simple preparation route, multiple functionalities, and green feature endow poly(TA–LA) elastomers with outstanding application prospect as strain sensors when composited with PEDOT–PSS. Excellent conductivity sensitivity of poly(TA–LA)–PEDOT–PSS strain sensors in detecting mechanical deformations (especially strains at a small level from 0.5 to 5%) such as finger bending at various angles is evaluated. This work indicates an avenue toward constructing recyclable, stretchable, and wearable electronic devices for monitoring human movements in real time.</p>\",\"PeriodicalId\":7,\"journal\":{\"name\":\"ACS Applied Polymer Materials\",\"volume\":\"7 3\",\"pages\":\"2134–2142 2134–2142\"},\"PeriodicalIF\":4.7000,\"publicationDate\":\"2025-01-29\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Polymer Materials\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsapm.4c04109\",\"RegionNum\":2,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Polymer Materials","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsapm.4c04109","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

基于弹性体的电子器件可以同时保持电化学导电性和机械性能,显示出构建可拉伸传感器的巨大潜力。而具有集成功能的传感器,如极高的可拉伸性、可穿戴性和高灵敏度,仍然具有挑战性。本研究利用天然分子硫辛酸(TA),通过乳酸(LA)辅助、简单有效的一步聚合途径,构建了具有综合功能的高性能超分子聚合物弹性体。聚(TA-LA)弹性体呈现适度的机械性能,达到超过800%的应变拉伸性。在200%应变下循环力学性能良好,且循环拉伸曲线存在重叠。此外,聚(TA-LA)弹性体具有优异的湿度敏感性和可回收性,表明其在多功能和环保应用方面具有很大的潜力。制备路线简单、功能多样、绿色环保等特点,使聚TA-LA弹性体与PEDOT-PSS复合作为应变传感器具有良好的应用前景。评价了poly(TA-LA) -PEDOT-PSS应变传感器在检测机械变形(特别是0.5 ~ 5%的小应变)如手指弯曲等方面的优异导电性灵敏度。这项工作为构建可回收、可拉伸和可穿戴的电子设备提供了一条途径,用于实时监测人体运动。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

One-Step Polymerization of Natural Molecule-Based Humidity-Sensitive and Recyclable Elastomers for Stretchable Electronic Conductors

One-Step Polymerization of Natural Molecule-Based Humidity-Sensitive and Recyclable Elastomers for Stretchable Electronic Conductors

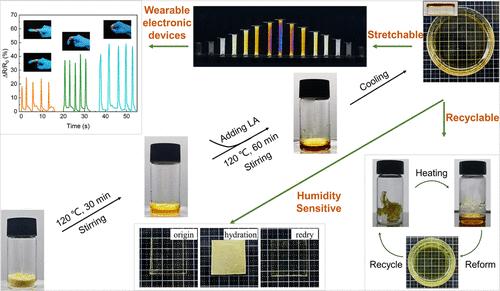

Elastomer-based electronic devices can maintain electrochemical conductivity and mechanical performances simultaneously, revealing promising potential to construct stretchable sensors. While sensors with integrated functionalities such as extremely stretchable, wearable, and highly sensitive properties are still challenging. Herein, in current work, a natural molecule, thioctic acid (TA), is utilized to construct high-performance supramolecular polymeric elastomers with integrated functionalities by a lactic acid (LA)-assistant, simple, and effective one-step polymerization route. Poly(TA–LA) elastomers present moderate mechanical performance, reaching a stretchability of over 800% strain. And cyclic mechanical performance performs well under 200% strain as well, in which overlaps are found in cycle tensile curves. Moreover, poly(TA–LA) elastomers present excellent humidity sensitivity as well as recyclability, indicating promising potential toward multifunctional and environmentally friendly applications. Simple preparation route, multiple functionalities, and green feature endow poly(TA–LA) elastomers with outstanding application prospect as strain sensors when composited with PEDOT–PSS. Excellent conductivity sensitivity of poly(TA–LA)–PEDOT–PSS strain sensors in detecting mechanical deformations (especially strains at a small level from 0.5 to 5%) such as finger bending at various angles is evaluated. This work indicates an avenue toward constructing recyclable, stretchable, and wearable electronic devices for monitoring human movements in real time.
