用于直接空气捕获的反模板3D打印的自支持分支聚(乙烯亚胺)单体

IF 8.2 2区 材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY
Pavithra Narayanan, Seo-Yul Kim, Dema Alhazmi, Christopher W. Jones, Ryan P. Lively
{"title":"用于直接空气捕获的反模板3D打印的自支持分支聚(乙烯亚胺)单体","authors":"Pavithra Narayanan, Seo-Yul Kim, Dema Alhazmi, Christopher W. Jones, Ryan P. Lively","doi":"10.1021/acsami.4c20617","DOIUrl":null,"url":null,"abstract":"3D-printed inverse templates are combined with ice templating to develop self-supported branched poly(ethylenimine) monoliths with regular channels of varying channel density and ordered macropores. A maximum uptake of 0.96 mmol of CO<sub>2</sub>/g of monolith from ambient air containing 45.5% RH is achieved from dynamic breakthrough experiments, which is a 31% increase compared to the CO<sub>2</sub> uptake from adsorption under dry conditions for the same duration. The breakthrough experiments show characteristics of internal mass-transfer limitations. The cyclic dynamic breakthrough experiments indicate stable operation without significant loss in CO<sub>2</sub> uptake across eight cycles. Moreover, the self-supported monolith shows minimal loss in adsorption capacity (7.7%) upon exposure to air containing 21% oxygen at 110 °C, in comparison to a conventional sorbent consisting of poly(ethylenimine) impregnated on Al<sub>2</sub>O<sub>3</sub> (18.9%). The monoliths exhibit good mechanical stability, contributed by elastic deformation, corresponding to up to 74% strain and lower pressure drop compared to many existing monoliths in the literature.","PeriodicalId":5,"journal":{"name":"ACS Applied Materials & Interfaces","volume":"86 1","pages":""},"PeriodicalIF":8.2000,"publicationDate":"2025-02-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Self-Supported Branched Poly(ethylenimine) Monoliths from Inverse Template 3D Printing for Direct Air Capture\",\"authors\":\"Pavithra Narayanan, Seo-Yul Kim, Dema Alhazmi, Christopher W. Jones, Ryan P. Lively\",\"doi\":\"10.1021/acsami.4c20617\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"3D-printed inverse templates are combined with ice templating to develop self-supported branched poly(ethylenimine) monoliths with regular channels of varying channel density and ordered macropores. A maximum uptake of 0.96 mmol of CO<sub>2</sub>/g of monolith from ambient air containing 45.5% RH is achieved from dynamic breakthrough experiments, which is a 31% increase compared to the CO<sub>2</sub> uptake from adsorption under dry conditions for the same duration. The breakthrough experiments show characteristics of internal mass-transfer limitations. The cyclic dynamic breakthrough experiments indicate stable operation without significant loss in CO<sub>2</sub> uptake across eight cycles. Moreover, the self-supported monolith shows minimal loss in adsorption capacity (7.7%) upon exposure to air containing 21% oxygen at 110 °C, in comparison to a conventional sorbent consisting of poly(ethylenimine) impregnated on Al<sub>2</sub>O<sub>3</sub> (18.9%). The monoliths exhibit good mechanical stability, contributed by elastic deformation, corresponding to up to 74% strain and lower pressure drop compared to many existing monoliths in the literature.\",\"PeriodicalId\":5,\"journal\":{\"name\":\"ACS Applied Materials & Interfaces\",\"volume\":\"86 1\",\"pages\":\"\"},\"PeriodicalIF\":8.2000,\"publicationDate\":\"2025-02-11\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Materials & Interfaces\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1021/acsami.4c20617\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Materials & Interfaces","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acsami.4c20617","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

将3d打印的反模板与冰模板相结合,开发出具有不同通道密度的规则通道和有序大孔的自支撑支链聚亚胺单体。在动态突破实验中,从含有45.5% RH的环境空气中获得的最大二氧化碳吸收量为0.96 mmol /g,与在相同时间内干燥条件下吸附的二氧化碳吸收量相比,增加了31%。突破实验表现出内部传质受限的特点。循环动态突破实验表明,在8个循环中,系统运行稳定,CO2吸收无明显损失。此外,与传统的由Al2O3浸染的聚亚胺组成的吸附剂(18.9%)相比,在110°C含21%氧气的空气中,自支撑的整体吸附容量损失最小(7.7%)。由于弹性变形,该单体具有良好的机械稳定性,与文献中许多现有单体相比,其应变高达74%,压降更低。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Self-Supported Branched Poly(ethylenimine) Monoliths from Inverse Template 3D Printing for Direct Air Capture

Self-Supported Branched Poly(ethylenimine) Monoliths from Inverse Template 3D Printing for Direct Air Capture

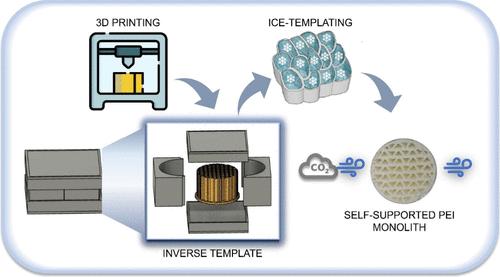

3D-printed inverse templates are combined with ice templating to develop self-supported branched poly(ethylenimine) monoliths with regular channels of varying channel density and ordered macropores. A maximum uptake of 0.96 mmol of CO2/g of monolith from ambient air containing 45.5% RH is achieved from dynamic breakthrough experiments, which is a 31% increase compared to the CO2 uptake from adsorption under dry conditions for the same duration. The breakthrough experiments show characteristics of internal mass-transfer limitations. The cyclic dynamic breakthrough experiments indicate stable operation without significant loss in CO2 uptake across eight cycles. Moreover, the self-supported monolith shows minimal loss in adsorption capacity (7.7%) upon exposure to air containing 21% oxygen at 110 °C, in comparison to a conventional sorbent consisting of poly(ethylenimine) impregnated on Al2O3 (18.9%). The monoliths exhibit good mechanical stability, contributed by elastic deformation, corresponding to up to 74% strain and lower pressure drop compared to many existing monoliths in the literature.
求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
ACS Applied Materials & Interfaces
ACS Applied Materials & Interfaces 工程技术-材料科学:综合
CiteScore
16.00
自引率
6.30%
发文量
4978
审稿时长
1.8 months
期刊介绍: ACS Applied Materials & Interfaces is a leading interdisciplinary journal that brings together chemists, engineers, physicists, and biologists to explore the development and utilization of newly-discovered materials and interfacial processes for specific applications. Our journal has experienced remarkable growth since its establishment in 2009, both in terms of the number of articles published and the impact of the research showcased. We are proud to foster a truly global community, with the majority of published articles originating from outside the United States, reflecting the rapid growth of applied research worldwide.
×
