Observationally derived magnetic field strength and 3D components in the HD 142527 disk

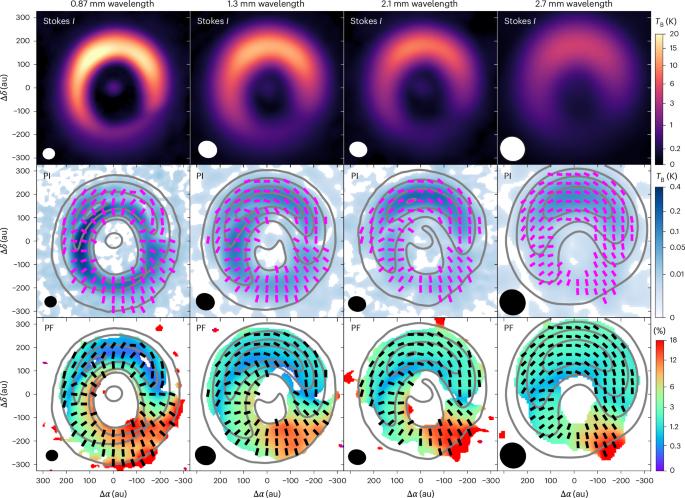

The magnetic fields in protoplanetary disks around young stars play an important role in disk evolution and planet formation. Measuring the polarized thermal emission from magnetically aligned grains is a reliable method for tracing magnetic fields. However, it has been difficult to observe magnetic fields from dust polarization in protoplanetary disks because other polarization mechanisms involving grown dust grains become efficient. Here we report multi-wavelength (0.87, 1.3, 2.1 and 2.7 mm) observations of polarized thermal emission in the protoplanetary disk around HD 142527, which shows a lopsided dust distribution. We revealed that smaller dust particles still exhibit magnetic alignment in the southern part of the disk. Furthermore, angular offsets between the observed magnetic field and the disk azimuthal direction were discovered. These offsets can be used to measure the relative strengths of each component of a three-dimensional magnetic field (radial (Br), azimuthal (Bϕ) and vertical (Bz)). Applying this method, we derived the magnetic field around a 200 au radius from the protostar as ∣Br∣:∣Bϕ∣:∣Bz∣ ≈ 0.26:1:0.23 with a strength of ~0.3 mG. Our observations provide some key parameters of magnetic activities, including the plasma beta, which has had to be assumed in theoretical studies. In addition, the radial and vertical angular momentum transfers were found to be comparable, which poses a challenge to theoretical studies of protoplanetary disks. The magnetic field structure of the protoplanetary disk around HD 142527 is derived from dust polarization observations. A magnetic field strength of 0.3 mG and its three-dimensional components were calculated using the distributions of the polarization vectors.
