硼基阴离子受体添加剂†稳定阴极-电解质界面并增强Na+动力学

IF 2.5 3区 化学 Q2 CHEMISTRY, MULTIDISCIPLINARY
Jie Li, Yufan Long, Lei Li, Fan Pu, Wei Liao, Xiaowen Yu, Hongxin Liao and Xuebu Hu
{"title":"硼基阴离子受体添加剂†稳定阴极-电解质界面并增强Na+动力学","authors":"Jie Li, Yufan Long, Lei Li, Fan Pu, Wei Liao, Xiaowen Yu, Hongxin Liao and Xuebu Hu","doi":"10.1039/D4NJ04788E","DOIUrl":null,"url":null,"abstract":"<p >Layered metal oxides (NaNi<small><sub>1/3</sub></small>Fe<small><sub>1/3</sub></small>Mn<small><sub>1/3</sub></small>O<small><sub>2</sub></small>, NFM) hold tremendous commercial potential within the domain of sodium-ion batteries. However, the irreversible phase transitions and interfacial side reactions result in the degradation of cycling performance and poor rate performance, which poses significant obstacles to their commercialization. Herein, tris(2,2,2-trifluoroethyl)borate (TTFEB) is applied as an electrolyte additive to boost the interface stability of the NFM cathode. As an anion acceptor, TTFEB exhibits strong interaction with ClO<small><sub>4</sub></small><small><sup>−</sup></small>, and the TTFEB–ClO<small><sub>4</sub></small><small><sup>−</sup></small> complex accumulates on the surface of NFM during the charging process and decomposes to form a thin and stable cathode–electrolyte interface (CEI), thereby improving interface stability. Meanwhile, the strong interaction between TTFEB and ClO<small><sub>4</sub></small><small><sup>−</sup></small> promotes the dissociation of NaClO<small><sub>4</sub></small>, thereby facilitating the transfer and diffusion of Na<small><sup>+</sup></small> and improving the rate performance of NFM. Consequently, after 200 cycles at 1C, the NFM||Na cell using the 2%TTFEB-containing electrolyte exhibits a superior capacity retention (83.63%) compared to the cell with the baseline electrolyte (73.04%). Moreover, after 400 cycles at 5C, the capacity retention of the cell with the 2%TTFEB-containing electrolyte is 13.02% higher than that with the baseline electrolyte. This study offers a new idea for enhancing the stability of the cathode–electrolyte interface through the utilization of electrolyte additives.</p>","PeriodicalId":95,"journal":{"name":"New Journal of Chemistry","volume":" 5","pages":" 1755-1762"},"PeriodicalIF":2.5000,"publicationDate":"2025-01-10","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Stabilizing the cathode–electrolyte interphase and enhancing Na+ kinetics by a boron-based anion receptor additive†\",\"authors\":\"Jie Li, Yufan Long, Lei Li, Fan Pu, Wei Liao, Xiaowen Yu, Hongxin Liao and Xuebu Hu\",\"doi\":\"10.1039/D4NJ04788E\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Layered metal oxides (NaNi<small><sub>1/3</sub></small>Fe<small><sub>1/3</sub></small>Mn<small><sub>1/3</sub></small>O<small><sub>2</sub></small>, NFM) hold tremendous commercial potential within the domain of sodium-ion batteries. However, the irreversible phase transitions and interfacial side reactions result in the degradation of cycling performance and poor rate performance, which poses significant obstacles to their commercialization. Herein, tris(2,2,2-trifluoroethyl)borate (TTFEB) is applied as an electrolyte additive to boost the interface stability of the NFM cathode. As an anion acceptor, TTFEB exhibits strong interaction with ClO<small><sub>4</sub></small><small><sup>−</sup></small>, and the TTFEB–ClO<small><sub>4</sub></small><small><sup>−</sup></small> complex accumulates on the surface of NFM during the charging process and decomposes to form a thin and stable cathode–electrolyte interface (CEI), thereby improving interface stability. Meanwhile, the strong interaction between TTFEB and ClO<small><sub>4</sub></small><small><sup>−</sup></small> promotes the dissociation of NaClO<small><sub>4</sub></small>, thereby facilitating the transfer and diffusion of Na<small><sup>+</sup></small> and improving the rate performance of NFM. Consequently, after 200 cycles at 1C, the NFM||Na cell using the 2%TTFEB-containing electrolyte exhibits a superior capacity retention (83.63%) compared to the cell with the baseline electrolyte (73.04%). Moreover, after 400 cycles at 5C, the capacity retention of the cell with the 2%TTFEB-containing electrolyte is 13.02% higher than that with the baseline electrolyte. This study offers a new idea for enhancing the stability of the cathode–electrolyte interface through the utilization of electrolyte additives.</p>\",\"PeriodicalId\":95,\"journal\":{\"name\":\"New Journal of Chemistry\",\"volume\":\" 5\",\"pages\":\" 1755-1762\"},\"PeriodicalIF\":2.5000,\"publicationDate\":\"2025-01-10\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"New Journal of Chemistry\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/nj/d4nj04788e\",\"RegionNum\":3,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"New Journal of Chemistry","FirstCategoryId":"92","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/nj/d4nj04788e","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

层状金属氧化物(NaNi1/3Fe1/3Mn1/3O2, NFM)在钠离子电池领域具有巨大的商业潜力。然而,不可逆的相变和界面副反应导致循环性能下降和速率性能差,这对其商业化构成了重大障碍。本文采用三(2,2,2-三氟乙基)硼酸盐(TTFEB)作为电解质添加剂来提高NFM阴极的界面稳定性。TTFEB作为阴离子受体,与ClO4 -表现出较强的相互作用,在充电过程中,TTFEB - ClO4 -络合物在NFM表面积累并分解形成薄而稳定的阴极-电解质界面(CEI),从而提高了界面的稳定性。同时,TTFEB与ClO4−之间的强相互作用促进了NaClO4的解离,从而促进了Na+的转移和扩散,提高了NFM的速率性能。因此,在1C下循环200次后,使用含有2% ttfeb的电解质的NFM||Na电池与使用基线电解质的电池(73.04%)相比,表现出更高的容量保持率(83.63%)。此外,在5C下循环400次后,使用含2% ttfeb的电解质的电池容量保持率比使用基线电解质的电池容量保持率高13.02%。本研究为利用电解质添加剂增强阴极-电解质界面的稳定性提供了新的思路。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Stabilizing the cathode–electrolyte interphase and enhancing Na+ kinetics by a boron-based anion receptor additive†

Stabilizing the cathode–electrolyte interphase and enhancing Na+ kinetics by a boron-based anion receptor additive†

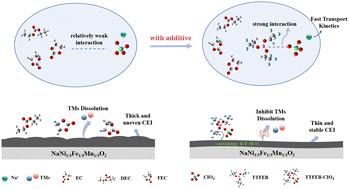

Layered metal oxides (NaNi1/3Fe1/3Mn1/3O2, NFM) hold tremendous commercial potential within the domain of sodium-ion batteries. However, the irreversible phase transitions and interfacial side reactions result in the degradation of cycling performance and poor rate performance, which poses significant obstacles to their commercialization. Herein, tris(2,2,2-trifluoroethyl)borate (TTFEB) is applied as an electrolyte additive to boost the interface stability of the NFM cathode. As an anion acceptor, TTFEB exhibits strong interaction with ClO4, and the TTFEB–ClO4 complex accumulates on the surface of NFM during the charging process and decomposes to form a thin and stable cathode–electrolyte interface (CEI), thereby improving interface stability. Meanwhile, the strong interaction between TTFEB and ClO4 promotes the dissociation of NaClO4, thereby facilitating the transfer and diffusion of Na+ and improving the rate performance of NFM. Consequently, after 200 cycles at 1C, the NFM||Na cell using the 2%TTFEB-containing electrolyte exhibits a superior capacity retention (83.63%) compared to the cell with the baseline electrolyte (73.04%). Moreover, after 400 cycles at 5C, the capacity retention of the cell with the 2%TTFEB-containing electrolyte is 13.02% higher than that with the baseline electrolyte. This study offers a new idea for enhancing the stability of the cathode–electrolyte interface through the utilization of electrolyte additives.
