Zhaorun Dong, Shiyu Xiao, Mingliang Zhang*, Wei Yan, Ye Li, Xue Chen and Xiaodong Wang*,
{"title":"工程低维Cu2-xS优越的热电性能","authors":"Zhaorun Dong, Shiyu Xiao, Mingliang Zhang*, Wei Yan, Ye Li, Xue Chen and Xiaodong Wang*, ","doi":"10.1021/acsaelm.4c0182510.1021/acsaelm.4c01825","DOIUrl":null,"url":null,"abstract":"<p >In the field of thermoelectric materials, the design of low-dimensional structures has emerged as a prominent area of research. Low-dimensional thermoelectrics enhance performance by exploiting quantum confinement to optimize electronic states and size effects to reduce the thermal conductivity, thereby improving the power factor (PF) without compromising the Seebeck coefficient and electrical conductivity. Here, we successfully prepared two-dimensional (2D) Cu<sub>2–<i>x</i></sub>S thin films of varying thicknesses through magnetron sputtering. The thinnest 37 nm sample exhibits excellent thermoelectric properties at 500 K with a PF of 573.15 μW m<sup>–1</sup> K<sup>–2</sup>, which represents the record among all Cu<sub>2–<i>x</i></sub>S-based thin-film materials to date. Moreover, there is a significant discrepancy between the thin films and the present work bulk Cu<sub>2</sub>S material PF of 13.5 μW m<sup>–1</sup> K<sup>–2</sup>. Additionally, the sample’s thermal conductivity and thermoelectric figure of merit (ZT) are 1.5 Wm<sup>–1</sup> K<sup>–1</sup> and 0.22, respectively, at 500 K. These findings underscore the potential of the quantum size effect in enhancing thermoelectric efficiency and offer a promising avenue for advancing the study of thermoelectric materials in energy conversion applications.</p>","PeriodicalId":3,"journal":{"name":"ACS Applied Electronic Materials","volume":"7 2","pages":"729–737 729–737"},"PeriodicalIF":4.7000,"publicationDate":"2025-01-08","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Engineering Low-Dimensional Cu2–xS for Superior Thermoelectric Performance\",\"authors\":\"Zhaorun Dong, Shiyu Xiao, Mingliang Zhang*, Wei Yan, Ye Li, Xue Chen and Xiaodong Wang*, \",\"doi\":\"10.1021/acsaelm.4c0182510.1021/acsaelm.4c01825\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >In the field of thermoelectric materials, the design of low-dimensional structures has emerged as a prominent area of research. Low-dimensional thermoelectrics enhance performance by exploiting quantum confinement to optimize electronic states and size effects to reduce the thermal conductivity, thereby improving the power factor (PF) without compromising the Seebeck coefficient and electrical conductivity. Here, we successfully prepared two-dimensional (2D) Cu<sub>2–<i>x</i></sub>S thin films of varying thicknesses through magnetron sputtering. The thinnest 37 nm sample exhibits excellent thermoelectric properties at 500 K with a PF of 573.15 μW m<sup>–1</sup> K<sup>–2</sup>, which represents the record among all Cu<sub>2–<i>x</i></sub>S-based thin-film materials to date. Moreover, there is a significant discrepancy between the thin films and the present work bulk Cu<sub>2</sub>S material PF of 13.5 μW m<sup>–1</sup> K<sup>–2</sup>. Additionally, the sample’s thermal conductivity and thermoelectric figure of merit (ZT) are 1.5 Wm<sup>–1</sup> K<sup>–1</sup> and 0.22, respectively, at 500 K. These findings underscore the potential of the quantum size effect in enhancing thermoelectric efficiency and offer a promising avenue for advancing the study of thermoelectric materials in energy conversion applications.</p>\",\"PeriodicalId\":3,\"journal\":{\"name\":\"ACS Applied Electronic Materials\",\"volume\":\"7 2\",\"pages\":\"729–737 729–737\"},\"PeriodicalIF\":4.7000,\"publicationDate\":\"2025-01-08\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Electronic Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsaelm.4c01825\",\"RegionNum\":3,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"ENGINEERING, ELECTRICAL & ELECTRONIC\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Electronic Materials","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsaelm.4c01825","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, ELECTRICAL & ELECTRONIC","Score":null,"Total":0}
引用次数: 0
摘要
在热电材料领域,低维结构的设计已成为一个突出的研究领域。低维热电器件通过利用量子限制优化电子态和尺寸效应来提高性能,从而在不影响塞贝克系数和导电性的情况下提高功率因数(PF)。在这里,我们成功地通过磁控溅射制备了不同厚度的二维Cu2-xS薄膜。最薄的37 nm样品在500 K下表现出优异的热电性能,其PF为573.15 μW m-1 K - 2,创下了迄今为止所有cu2 - x基薄膜材料的记录。此外,薄膜与目前工作块体Cu2S材料的PF值(13.5 μW m-1 K-2)之间存在显著差异。此外,样品的导热系数和热电优值(ZT)在500 K时分别为1.5 Wm-1 K - 1和0.22。这些发现强调了量子尺寸效应在提高热电效率方面的潜力,并为推进热电材料在能量转换应用中的研究提供了一条有希望的途径。
Engineering Low-Dimensional Cu2–xS for Superior Thermoelectric Performance

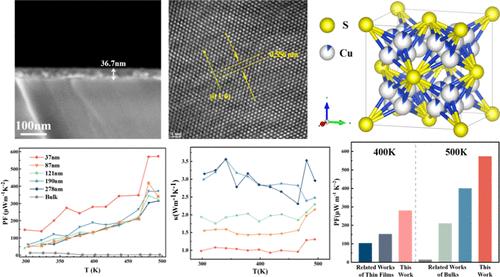

In the field of thermoelectric materials, the design of low-dimensional structures has emerged as a prominent area of research. Low-dimensional thermoelectrics enhance performance by exploiting quantum confinement to optimize electronic states and size effects to reduce the thermal conductivity, thereby improving the power factor (PF) without compromising the Seebeck coefficient and electrical conductivity. Here, we successfully prepared two-dimensional (2D) Cu2–xS thin films of varying thicknesses through magnetron sputtering. The thinnest 37 nm sample exhibits excellent thermoelectric properties at 500 K with a PF of 573.15 μW m–1 K–2, which represents the record among all Cu2–xS-based thin-film materials to date. Moreover, there is a significant discrepancy between the thin films and the present work bulk Cu2S material PF of 13.5 μW m–1 K–2. Additionally, the sample’s thermal conductivity and thermoelectric figure of merit (ZT) are 1.5 Wm–1 K–1 and 0.22, respectively, at 500 K. These findings underscore the potential of the quantum size effect in enhancing thermoelectric efficiency and offer a promising avenue for advancing the study of thermoelectric materials in energy conversion applications.
