一种联吡啶钽配合物的合成及其反应性

IF 4.7 2区 化学 Q1 CHEMISTRY, INORGANIC & NUCLEAR
Lei Zhang*, Lijiao Zheng and Jinjin Zhao,
{"title":"一种联吡啶钽配合物的合成及其反应性","authors":"Lei Zhang*,&nbsp;Lijiao Zheng and Jinjin Zhao,&nbsp;","doi":"10.1021/acs.inorgchem.4c0394610.1021/acs.inorgchem.4c03946","DOIUrl":null,"url":null,"abstract":"<p >The bipyridyl tantalum complex (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(bipy) (<b>2</b>) is synthesized by the reaction of (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>TaCl<sub>2</sub> (<b>1</b>) and 2,2′-bipyridine in the presence of excess potassium graphite (KC<sub>8</sub>). Complex <b>2</b> coordinates readily with pyridine and 4-(dimethylamino)pyridine (dmap) to form Lewis base adducts (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(bipy)(L) (L = py (<b>3</b>), dmap (<b>4</b>)), and it exhibits rich redox reactivity toward small molecules: (a) single electron transfer (SET) occurs upon exposure of <b>2</b> to phenyl sulfide or selenide dimer, giving the open-shell, bipy-centered radical complexes (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(bipy<sup>•</sup>)(PhE) (E = S (<b>5</b>), Se (<b>6</b>)). (b) Regioselective C–C σ-bond formation via radical coupling is observed in the SET reaction of <b>2</b> and aldehydes, ketones, or imines to furnish insertion products <b>7</b>–<b>13</b>, namely, sterically more crowded benzophenone, acetophenone, 2,6-dichlorobenzaldehyde, and benzophenone imine couple with C6 or C6′ of bipy in <b>2</b>, respectively, whereas sterically less hindered benzaldehyde, cyclohexanone, and benzylideneaniline couple with C2 or C2′ of bipy, respectively. (c) <b>2</b> serves as a synthon for (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(III) in contact with diazene, organic azides, and 1,4-diaza-1,3-diene and (conjugated)alkyne derivatives, in which tantalum imido/azido/hydrazido complexes (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(═NPh)(bipy<sup>0</sup>) (<b>14</b>), (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(═N<sub>3</sub>(2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>))(bipy<sup>0</sup>) (<b>15</b>), (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(═NSiMe<sub>3</sub>)(bipy<sup>0</sup>) (<b>16</b>), and (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(═N<sub>2</sub>CPh<sub>2</sub>)(bipy<sup>0</sup>) (<b>17</b>); the tantalum σ<sup>2</sup>-enediamide complex (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(η<sup>2</sup>-<i>N</i>,<i>N′</i>-<i>p</i>-MeC<sub>6</sub>H<sub>4</sub>-DAD) (<b>18</b>); and tantalum metallacyclopropenes (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(η<sup>2</sup>-C<sub>2</sub>Ph<sub>2</sub>) (<b>19</b>) and (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta[η<sup>2</sup>-C(Ph)═C(C≡CPh)](bipy<sup>0</sup>) (<b>20</b>) are formed via a two-electron redox process, respectively.</p>","PeriodicalId":40,"journal":{"name":"Inorganic Chemistry","volume":"64 2","pages":"855–871 855–871"},"PeriodicalIF":4.7000,"publicationDate":"2025-01-09","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Synthesis and Reactivity of a Bipyridyl Tantalum Complex\",\"authors\":\"Lei Zhang*,&nbsp;Lijiao Zheng and Jinjin Zhao,&nbsp;\",\"doi\":\"10.1021/acs.inorgchem.4c0394610.1021/acs.inorgchem.4c03946\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >The bipyridyl tantalum complex (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(bipy) (<b>2</b>) is synthesized by the reaction of (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>TaCl<sub>2</sub> (<b>1</b>) and 2,2′-bipyridine in the presence of excess potassium graphite (KC<sub>8</sub>). Complex <b>2</b> coordinates readily with pyridine and 4-(dimethylamino)pyridine (dmap) to form Lewis base adducts (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(bipy)(L) (L = py (<b>3</b>), dmap (<b>4</b>)), and it exhibits rich redox reactivity toward small molecules: (a) single electron transfer (SET) occurs upon exposure of <b>2</b> to phenyl sulfide or selenide dimer, giving the open-shell, bipy-centered radical complexes (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(bipy<sup>•</sup>)(PhE) (E = S (<b>5</b>), Se (<b>6</b>)). (b) Regioselective C–C σ-bond formation via radical coupling is observed in the SET reaction of <b>2</b> and aldehydes, ketones, or imines to furnish insertion products <b>7</b>–<b>13</b>, namely, sterically more crowded benzophenone, acetophenone, 2,6-dichlorobenzaldehyde, and benzophenone imine couple with C6 or C6′ of bipy in <b>2</b>, respectively, whereas sterically less hindered benzaldehyde, cyclohexanone, and benzylideneaniline couple with C2 or C2′ of bipy, respectively. (c) <b>2</b> serves as a synthon for (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(III) in contact with diazene, organic azides, and 1,4-diaza-1,3-diene and (conjugated)alkyne derivatives, in which tantalum imido/azido/hydrazido complexes (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(═NPh)(bipy<sup>0</sup>) (<b>14</b>), (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(═N<sub>3</sub>(2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>))(bipy<sup>0</sup>) (<b>15</b>), (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(═NSiMe<sub>3</sub>)(bipy<sup>0</sup>) (<b>16</b>), and (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(═N<sub>2</sub>CPh<sub>2</sub>)(bipy<sup>0</sup>) (<b>17</b>); the tantalum σ<sup>2</sup>-enediamide complex (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(η<sup>2</sup>-<i>N</i>,<i>N′</i>-<i>p</i>-MeC<sub>6</sub>H<sub>4</sub>-DAD) (<b>18</b>); and tantalum metallacyclopropenes (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta(η<sup>2</sup>-C<sub>2</sub>Ph<sub>2</sub>) (<b>19</b>) and (2,6-<i><sup>i</sup></i>Pr<sub>2</sub>C<sub>6</sub>H<sub>3</sub>O)<sub>3</sub>Ta[η<sup>2</sup>-C(Ph)═C(C≡CPh)](bipy<sup>0</sup>) (<b>20</b>) are formed via a two-electron redox process, respectively.</p>\",\"PeriodicalId\":40,\"journal\":{\"name\":\"Inorganic Chemistry\",\"volume\":\"64 2\",\"pages\":\"855–871 855–871\"},\"PeriodicalIF\":4.7000,\"publicationDate\":\"2025-01-09\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Inorganic Chemistry\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acs.inorgchem.4c03946\",\"RegionNum\":2,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, INORGANIC & NUCLEAR\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Inorganic Chemistry","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.inorgchem.4c03946","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, INORGANIC & NUCLEAR","Score":null,"Total":0}
引用次数: 0

摘要

在过量石墨钾(KC8)存在下,由(2,6- ipr2c6h30)3TaCl2(1)与2,2′-联吡啶反应合成了联吡啶钽配合物(2,6- ipr2c6h30)3Ta(bipy)(2)。配合物2很容易与吡啶和4-(二甲氨基)吡啶(dmap)配位形成Lewis碱加合物(2,6- ipr2c6h30)3Ta(bipy)(L) (L = py (3), dmap(4)),并对小分子表现出丰富的氧化还原反应性:(a)当2暴露于苯基硫化物或硒化物二聚体时,发生单电子转移(SET),形成开壳、双中心的自由基配合物(2,6- ipr2c6h30)3Ta(bipy•)(PhE) (E = S (5), Se(6))。(b)在2与醛类、酮类或亚胺的SET反应中,通过自由基偶联可形成区域选择性的C-C σ-键,生成插入产物7-13,即在空间上较密集的二苯甲酮、苯乙酮、2,6-二氯苯甲醛和二苯甲酮-亚胺偶联,分别与2中C6或C6′的双吡啶偶联,而在空间上较不受阻的苯甲醛、环己酮和苄基苯胺偶联,分别与C2或C2′的双吡啶偶联。(c) 2作为(2,6- ipr2c6h30)3Ta(III)的合成物,与二氮烯、有机叠氮化物和1,4-重氮-1,3-二烯和(共轭)炔衍生物接触,其中钽亚胺/叠氮/肼配合物(2,6- ipr2c6h30)3Ta(= NPh)(bipy0)(14)、(2,6- ipr2c6h30)3Ta(= NPh)(bipy0)(15)、(2,6- ipr2c6h30)3Ta(= NSiMe3)(bipy0)(16)和(2,6- ipr2c6h30)3Ta(= N2CPh2)(bipy0) (17);钽- σ2-烯二胺配合物(2,6- ipr2c6h30)3Ta(η2-N,N ' -p-MeC6H4-DAD) (18);和钽金属环丙烯(2,6- ipr2c6h30)3Ta(η2-C2Ph2)(19)和(2,6- ipr2c6h30)3Ta[η2-C(Ph) = C(C≡CPh)](bipy0)(20)分别通过双电子氧化还原过程形成。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Synthesis and Reactivity of a Bipyridyl Tantalum Complex

Synthesis and Reactivity of a Bipyridyl Tantalum Complex

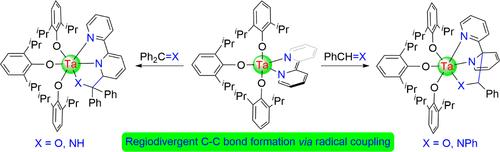

The bipyridyl tantalum complex (2,6-iPr2C6H3O)3Ta(bipy) (2) is synthesized by the reaction of (2,6-iPr2C6H3O)3TaCl2 (1) and 2,2′-bipyridine in the presence of excess potassium graphite (KC8). Complex 2 coordinates readily with pyridine and 4-(dimethylamino)pyridine (dmap) to form Lewis base adducts (2,6-iPr2C6H3O)3Ta(bipy)(L) (L = py (3), dmap (4)), and it exhibits rich redox reactivity toward small molecules: (a) single electron transfer (SET) occurs upon exposure of 2 to phenyl sulfide or selenide dimer, giving the open-shell, bipy-centered radical complexes (2,6-iPr2C6H3O)3Ta(bipy)(PhE) (E = S (5), Se (6)). (b) Regioselective C–C σ-bond formation via radical coupling is observed in the SET reaction of 2 and aldehydes, ketones, or imines to furnish insertion products 713, namely, sterically more crowded benzophenone, acetophenone, 2,6-dichlorobenzaldehyde, and benzophenone imine couple with C6 or C6′ of bipy in 2, respectively, whereas sterically less hindered benzaldehyde, cyclohexanone, and benzylideneaniline couple with C2 or C2′ of bipy, respectively. (c) 2 serves as a synthon for (2,6-iPr2C6H3O)3Ta(III) in contact with diazene, organic azides, and 1,4-diaza-1,3-diene and (conjugated)alkyne derivatives, in which tantalum imido/azido/hydrazido complexes (2,6-iPr2C6H3O)3Ta(═NPh)(bipy0) (14), (2,6-iPr2C6H3O)3Ta(═N3(2,6-iPr2C6H3))(bipy0) (15), (2,6-iPr2C6H3O)3Ta(═NSiMe3)(bipy0) (16), and (2,6-iPr2C6H3O)3Ta(═N2CPh2)(bipy0) (17); the tantalum σ2-enediamide complex (2,6-iPr2C6H3O)3Ta(η2-N,N′-p-MeC6H4-DAD) (18); and tantalum metallacyclopropenes (2,6-iPr2C6H3O)3Ta(η2-C2Ph2) (19) and (2,6-iPr2C6H3O)3Ta[η2-C(Ph)═C(C≡CPh)](bipy0) (20) are formed via a two-electron redox process, respectively.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Inorganic Chemistry
Inorganic Chemistry 化学-无机化学与核化学
CiteScore
7.60
自引率
13.00%
发文量
1960
审稿时长
1.9 months
期刊介绍: Inorganic Chemistry publishes fundamental studies in all phases of inorganic chemistry. Coverage includes experimental and theoretical reports on quantitative studies of structure and thermodynamics, kinetics, mechanisms of inorganic reactions, bioinorganic chemistry, and relevant aspects of organometallic chemistry, solid-state phenomena, and chemical bonding theory. Emphasis is placed on the synthesis, structure, thermodynamics, reactivity, spectroscopy, and bonding properties of significant new and known compounds.
×
