提高低渗透储层吸胀能力的纳米滑溜水压裂液

IF 5.3 3区 工程技术 Q2 ENERGY & FUELS
Zhongzheng Xu, Mingwei Zhao*, Yuxin Xie, Teng Li, Xiangjuan Meng, Yunbo Dong, Ziteng Yang and Caili Dai,
{"title":"提高低渗透储层吸胀能力的纳米滑溜水压裂液","authors":"Zhongzheng Xu,&nbsp;Mingwei Zhao*,&nbsp;Yuxin Xie,&nbsp;Teng Li,&nbsp;Xiangjuan Meng,&nbsp;Yunbo Dong,&nbsp;Ziteng Yang and Caili Dai,&nbsp;","doi":"10.1021/acs.energyfuels.4c0489010.1021/acs.energyfuels.4c04890","DOIUrl":null,"url":null,"abstract":"<p >Slickwater (SW) fracturing fluid, renowned for its excellent drag reduction effect in wellbores, is widely used in the hydraulic fracturing process of low-permeability reservoirs. However, the poor imbibition performance of conventional slickwater fracturing fluid constrains the utilization of oil within the matrix pores. Herein, a nanoslickwater fracturing fluid with exceptional imbibition oil recovery capability is constructed by incorporating nano-SiO<sub>2</sub> containing carboxyl and sulfonic acid groups into the conventional slickwater fracturing fluid. The performance of the fracturing fluid, including drag reduction, rheological properties, filtration loss, and formation damage, is systematically evaluated. Finally, the imbibition oil recovery regulation of the system is explained. The prepared nanoslickwater fracturing fluid is a pseudoplastic fluid with a drag reduction rate of 74.53% at 80 °C. The retention rate of drag reduction ability is as high as 96.73% (after shearing for 30 min). The system exhibits excellent filtration reduction properties, resulting in a damage rate to the reservoir of only 7.70%. Core imbibition results indicate that oil produced in the initial rapid imbibition stage accounts for over 65.00% of the entire imbibition process. After the nanoparticles are introduced, the imbibition recovery of nanoslickwater fracturing fluid in the rapid imbibition stage increases significantly. The final imbibition recovery increases from 17.31 to 28.22%. The prepared nanoslickwater fracturing fluid can effectively meet the requirements of slickwater and possesses excellent imbibition oil recovery ability, holding great application potential in the efficient development of low-permeability and tight oil reservoirs.</p>","PeriodicalId":35,"journal":{"name":"Energy & Fuels","volume":"39 2","pages":"1141–1151 1141–1151"},"PeriodicalIF":5.3000,"publicationDate":"2024-12-26","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Nanoslickwater Fracturing Fluid with Enhanced Imbibition Capacity for Low-Permeability Reservoirs\",\"authors\":\"Zhongzheng Xu,&nbsp;Mingwei Zhao*,&nbsp;Yuxin Xie,&nbsp;Teng Li,&nbsp;Xiangjuan Meng,&nbsp;Yunbo Dong,&nbsp;Ziteng Yang and Caili Dai,&nbsp;\",\"doi\":\"10.1021/acs.energyfuels.4c0489010.1021/acs.energyfuels.4c04890\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Slickwater (SW) fracturing fluid, renowned for its excellent drag reduction effect in wellbores, is widely used in the hydraulic fracturing process of low-permeability reservoirs. However, the poor imbibition performance of conventional slickwater fracturing fluid constrains the utilization of oil within the matrix pores. Herein, a nanoslickwater fracturing fluid with exceptional imbibition oil recovery capability is constructed by incorporating nano-SiO<sub>2</sub> containing carboxyl and sulfonic acid groups into the conventional slickwater fracturing fluid. The performance of the fracturing fluid, including drag reduction, rheological properties, filtration loss, and formation damage, is systematically evaluated. Finally, the imbibition oil recovery regulation of the system is explained. The prepared nanoslickwater fracturing fluid is a pseudoplastic fluid with a drag reduction rate of 74.53% at 80 °C. The retention rate of drag reduction ability is as high as 96.73% (after shearing for 30 min). The system exhibits excellent filtration reduction properties, resulting in a damage rate to the reservoir of only 7.70%. Core imbibition results indicate that oil produced in the initial rapid imbibition stage accounts for over 65.00% of the entire imbibition process. After the nanoparticles are introduced, the imbibition recovery of nanoslickwater fracturing fluid in the rapid imbibition stage increases significantly. The final imbibition recovery increases from 17.31 to 28.22%. The prepared nanoslickwater fracturing fluid can effectively meet the requirements of slickwater and possesses excellent imbibition oil recovery ability, holding great application potential in the efficient development of low-permeability and tight oil reservoirs.</p>\",\"PeriodicalId\":35,\"journal\":{\"name\":\"Energy & Fuels\",\"volume\":\"39 2\",\"pages\":\"1141–1151 1141–1151\"},\"PeriodicalIF\":5.3000,\"publicationDate\":\"2024-12-26\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Energy & Fuels\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acs.energyfuels.4c04890\",\"RegionNum\":3,\"RegionCategory\":\"工程技术\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"ENERGY & FUELS\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Fuels","FirstCategoryId":"5","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.energyfuels.4c04890","RegionNum":3,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENERGY & FUELS","Score":null,"Total":0}
引用次数: 0

摘要

滑溜水压裂液以其优异的井内减阻效果而闻名,被广泛应用于低渗透油藏水力压裂过程中。然而,常规滑溜水压裂液的渗吸性能较差,限制了原油在基质孔隙中的利用。在常规的滑溜水压裂液中加入含有羧基和磺酸基的纳米sio2,构建了一种具有优异吸吸采油能力的纳米滑溜水压裂液。系统地评估压裂液的性能,包括减阻、流变性、滤失和地层损害。最后对系统的吸胀采油规律进行了说明。制备的纳米滑溜水压裂液是一种假塑性流体,在80℃时减阻率为74.53%。剪切30 min后,减阻能力保留率高达96.73%。该体系具有优异的滤除性能,对储层的破坏率仅为7.70%。岩心吸胀结果表明,初期快速吸胀阶段产出的原油占整个吸胀过程的65.00%以上。纳米颗粒加入后,纳米滑溜水压裂液在快速渗吸阶段的渗吸采收率显著提高。最终渗吸采收率由17.31%提高到28.22%。制备的纳米滑溜水压裂液能够有效满足滑溜水的要求,具有良好的吸胀采油能力,在低渗透致密油油藏高效开发中具有很大的应用潜力。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Nanoslickwater Fracturing Fluid with Enhanced Imbibition Capacity for Low-Permeability Reservoirs

Nanoslickwater Fracturing Fluid with Enhanced Imbibition Capacity for Low-Permeability Reservoirs

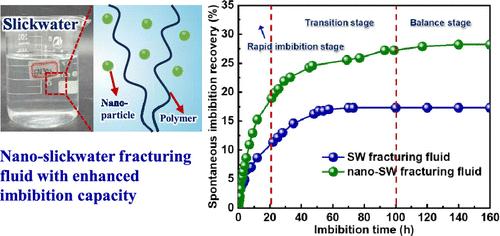

Slickwater (SW) fracturing fluid, renowned for its excellent drag reduction effect in wellbores, is widely used in the hydraulic fracturing process of low-permeability reservoirs. However, the poor imbibition performance of conventional slickwater fracturing fluid constrains the utilization of oil within the matrix pores. Herein, a nanoslickwater fracturing fluid with exceptional imbibition oil recovery capability is constructed by incorporating nano-SiO2 containing carboxyl and sulfonic acid groups into the conventional slickwater fracturing fluid. The performance of the fracturing fluid, including drag reduction, rheological properties, filtration loss, and formation damage, is systematically evaluated. Finally, the imbibition oil recovery regulation of the system is explained. The prepared nanoslickwater fracturing fluid is a pseudoplastic fluid with a drag reduction rate of 74.53% at 80 °C. The retention rate of drag reduction ability is as high as 96.73% (after shearing for 30 min). The system exhibits excellent filtration reduction properties, resulting in a damage rate to the reservoir of only 7.70%. Core imbibition results indicate that oil produced in the initial rapid imbibition stage accounts for over 65.00% of the entire imbibition process. After the nanoparticles are introduced, the imbibition recovery of nanoslickwater fracturing fluid in the rapid imbibition stage increases significantly. The final imbibition recovery increases from 17.31 to 28.22%. The prepared nanoslickwater fracturing fluid can effectively meet the requirements of slickwater and possesses excellent imbibition oil recovery ability, holding great application potential in the efficient development of low-permeability and tight oil reservoirs.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Energy & Fuels
Energy & Fuels 工程技术-工程:化工
CiteScore
9.20
自引率
13.20%
发文量
1101
审稿时长
2.1 months
期刊介绍: Energy & Fuels publishes reports of research in the technical area defined by the intersection of the disciplines of chemistry and chemical engineering and the application domain of non-nuclear energy and fuels. This includes research directed at the formation of, exploration for, and production of fossil fuels and biomass; the properties and structure or molecular composition of both raw fuels and refined products; the chemistry involved in the processing and utilization of fuels; fuel cells and their applications; and the analytical and instrumental techniques used in investigations of the foregoing areas.
×
