Guozhang Dai*, Yangyang Liu, Yang Xiang, Ziyi Yang, Ying Wang, Yuguang Luo, Tengxiao Xiongsong, Jidong Zhang and Junliang Yang*,
{"title":"高性能光电探测器用厘米级CdTe薄膜的范德华外延生长","authors":"Guozhang Dai*, Yangyang Liu, Yang Xiang, Ziyi Yang, Ying Wang, Yuguang Luo, Tengxiao Xiongsong, Jidong Zhang and Junliang Yang*, ","doi":"10.1021/acsaelm.4c0175410.1021/acsaelm.4c01754","DOIUrl":null,"url":null,"abstract":"<p >Group II–VI semiconductor CdTe is widely used in optoelectronic devices because of its high absorption coefficient and good chemical stability. High-quality CdTe thin films serve as the foundation for high-performance optoelectronic devices. In this work, centimeter-scale CdTe thin films were synthesized via van der Waals heteroepitaxy on mica substrates using vapor phase transport (VTD), and planar structure photodetectors (PDs) were constructed via depositing the Au electrodes on the surface directly or exfoliated buried interface. The results show that the performance of PDs constructed using a CdTe buried interface is much better than those constructed using a CdTe surface under the light irradiation at the wavelengths of 406, 642, and 808 nm, and the switching ratio can reach up to 2 × 10<sup>4</sup>, with a response of 4.4 A/W and a short response time of 1.5 ms. The smooth interface morphology and a large area of flat and dense surfaces are conducive to carrier transport, showing better performance. Furthermore, flexible PDs are constructed via transferring CdTe thin films onto a poly(ethylene terephthalate) (PET) substrate and exhibit excellent flexibility and stability, which can maintain 96.5% original performance with more than 200 times bending at a curvature radius of 5 mm. The research indicates that the high-quality, centimeter-scale CdTe with buried interface fabricated via van der Waals epitaxial growth is a promising potential candidate in high-performance optoelectronic devices.</p>","PeriodicalId":3,"journal":{"name":"ACS Applied Electronic Materials","volume":"7 1","pages":"277–285 277–285"},"PeriodicalIF":4.7000,"publicationDate":"2024-12-17","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"van der Waals Epitaxial Growth of Centimeter-Scale CdTe Thin Films for High-Performance Photodetectors\",\"authors\":\"Guozhang Dai*, Yangyang Liu, Yang Xiang, Ziyi Yang, Ying Wang, Yuguang Luo, Tengxiao Xiongsong, Jidong Zhang and Junliang Yang*, \",\"doi\":\"10.1021/acsaelm.4c0175410.1021/acsaelm.4c01754\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Group II–VI semiconductor CdTe is widely used in optoelectronic devices because of its high absorption coefficient and good chemical stability. High-quality CdTe thin films serve as the foundation for high-performance optoelectronic devices. In this work, centimeter-scale CdTe thin films were synthesized via van der Waals heteroepitaxy on mica substrates using vapor phase transport (VTD), and planar structure photodetectors (PDs) were constructed via depositing the Au electrodes on the surface directly or exfoliated buried interface. The results show that the performance of PDs constructed using a CdTe buried interface is much better than those constructed using a CdTe surface under the light irradiation at the wavelengths of 406, 642, and 808 nm, and the switching ratio can reach up to 2 × 10<sup>4</sup>, with a response of 4.4 A/W and a short response time of 1.5 ms. The smooth interface morphology and a large area of flat and dense surfaces are conducive to carrier transport, showing better performance. Furthermore, flexible PDs are constructed via transferring CdTe thin films onto a poly(ethylene terephthalate) (PET) substrate and exhibit excellent flexibility and stability, which can maintain 96.5% original performance with more than 200 times bending at a curvature radius of 5 mm. The research indicates that the high-quality, centimeter-scale CdTe with buried interface fabricated via van der Waals epitaxial growth is a promising potential candidate in high-performance optoelectronic devices.</p>\",\"PeriodicalId\":3,\"journal\":{\"name\":\"ACS Applied Electronic Materials\",\"volume\":\"7 1\",\"pages\":\"277–285 277–285\"},\"PeriodicalIF\":4.7000,\"publicationDate\":\"2024-12-17\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Electronic Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsaelm.4c01754\",\"RegionNum\":3,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"ENGINEERING, ELECTRICAL & ELECTRONIC\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Electronic Materials","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsaelm.4c01754","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, ELECTRICAL & ELECTRONIC","Score":null,"Total":0}
引用次数: 0
摘要
II-VI族半导体碲化镉因其吸收系数高、化学稳定性好而广泛应用于光电子器件中。高质量的碲化镉薄膜是高性能光电器件的基础。在本研究中,利用气相传输(VTD)技术在云母衬底上通过范德华异质外延合成了厘米级CdTe薄膜,并通过将Au电极直接沉积在表面或剥离埋藏界面上构建了平面结构光电探测器(pd)。结果表明,在406、642和808 nm光照射下,采用CdTe埋入界面构建的发光二极管的性能明显优于采用CdTe表面构建的发光二极管,开关比可达2 × 104,响应为4.4 a /W,响应时间短至1.5 ms。光滑的界面形貌和大面积平坦致密的表面有利于载流子的输运,表现出更好的性能。此外,通过将CdTe薄膜转移到聚对苯二甲酸乙酯(PET)衬底上构建柔性pd,具有优异的柔韧性和稳定性,在曲率半径为5 mm的情况下弯曲200次以上,仍能保持96.5%的原始性能。研究表明,通过范德华外延生长制备的高质量、厘米级具有埋藏界面的碲化镉是高性能光电器件的潜在候选材料。
van der Waals Epitaxial Growth of Centimeter-Scale CdTe Thin Films for High-Performance Photodetectors

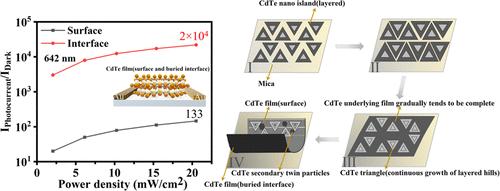

Group II–VI semiconductor CdTe is widely used in optoelectronic devices because of its high absorption coefficient and good chemical stability. High-quality CdTe thin films serve as the foundation for high-performance optoelectronic devices. In this work, centimeter-scale CdTe thin films were synthesized via van der Waals heteroepitaxy on mica substrates using vapor phase transport (VTD), and planar structure photodetectors (PDs) were constructed via depositing the Au electrodes on the surface directly or exfoliated buried interface. The results show that the performance of PDs constructed using a CdTe buried interface is much better than those constructed using a CdTe surface under the light irradiation at the wavelengths of 406, 642, and 808 nm, and the switching ratio can reach up to 2 × 104, with a response of 4.4 A/W and a short response time of 1.5 ms. The smooth interface morphology and a large area of flat and dense surfaces are conducive to carrier transport, showing better performance. Furthermore, flexible PDs are constructed via transferring CdTe thin films onto a poly(ethylene terephthalate) (PET) substrate and exhibit excellent flexibility and stability, which can maintain 96.5% original performance with more than 200 times bending at a curvature radius of 5 mm. The research indicates that the high-quality, centimeter-scale CdTe with buried interface fabricated via van der Waals epitaxial growth is a promising potential candidate in high-performance optoelectronic devices.
