无铅陶瓷优越电容储能性能的原子尺度高熵设计

IF 26.8 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Dengfeng Li, Zihao Zheng, Bin Yang, Longyu Chen, Dean Shi, Jinming Guo, Ce-Wen Nan
{"title":"无铅陶瓷优越电容储能性能的原子尺度高熵设计","authors":"Dengfeng Li,&nbsp;Zihao Zheng,&nbsp;Bin Yang,&nbsp;Longyu Chen,&nbsp;Dean Shi,&nbsp;Jinming Guo,&nbsp;Ce-Wen Nan","doi":"10.1002/adma.202409639","DOIUrl":null,"url":null,"abstract":"<p>Dielectric ceramics with high energy storage performance are crucial for the development of advanced high-power capacitors. However, achieving ultrahigh recoverable energy storage density and efficiency remains challenging, limiting the progress of leading-edge energy storage applications. In this study, (Bi<sub>1/2</sub>Na<sub>1/2</sub>)TiO<sub>3</sub> (BNT) is selected as the matrix, and the effects of different A-site elements on domain morphology, lattice polarization, and dielectric and ferroelectric properties are systematically investigated. Mg, La, Ca, and Sr are shown to enhance relaxation behavior by different magnitudes; hence, a high-entropy strategy for designing local polymorphic distortions is proposed. Based on atomic-scale investigations, a series of BNT-based high-entropy compositions are designed by introducing trace amounts of Mg and La to improve the electric breakdown strength and further disrupt the polar nanoscale regions (PNRs). A disordered polarization distribution and ultrasmall PNRs with a minimum size of ≈1 nm are detected in the high-entropy ceramics. Ultimately, a high recoverable energy density of 10.1 J cm<sup>−3</sup> and an efficiency of 90% are achieved for (Ca<sub>0.2</sub>Sr<sub>0.2</sub>Ba<sub>0.2</sub>Mg<sub>0.05</sub>La<sub>0.05</sub>Bi<sub>0.15</sub>Na<sub>0.15</sub>)TiO<sub>3</sub>. Furthermore, it displays a high-power density of 584 MW cm<sup>−3</sup> and an ultrashort discharge time of 27 ns. This work presents an effective approach for designing dielectric energy storage materials with superior comprehensive performance via a high-entropy strategy.</p>","PeriodicalId":114,"journal":{"name":"Advanced Materials","volume":"37 10","pages":""},"PeriodicalIF":26.8000,"publicationDate":"2025-01-31","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Atomic-Scale High-Entropy Design for Superior Capacitive Energy Storage Performance in Lead-Free Ceramics\",\"authors\":\"Dengfeng Li,&nbsp;Zihao Zheng,&nbsp;Bin Yang,&nbsp;Longyu Chen,&nbsp;Dean Shi,&nbsp;Jinming Guo,&nbsp;Ce-Wen Nan\",\"doi\":\"10.1002/adma.202409639\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Dielectric ceramics with high energy storage performance are crucial for the development of advanced high-power capacitors. However, achieving ultrahigh recoverable energy storage density and efficiency remains challenging, limiting the progress of leading-edge energy storage applications. In this study, (Bi<sub>1/2</sub>Na<sub>1/2</sub>)TiO<sub>3</sub> (BNT) is selected as the matrix, and the effects of different A-site elements on domain morphology, lattice polarization, and dielectric and ferroelectric properties are systematically investigated. Mg, La, Ca, and Sr are shown to enhance relaxation behavior by different magnitudes; hence, a high-entropy strategy for designing local polymorphic distortions is proposed. Based on atomic-scale investigations, a series of BNT-based high-entropy compositions are designed by introducing trace amounts of Mg and La to improve the electric breakdown strength and further disrupt the polar nanoscale regions (PNRs). A disordered polarization distribution and ultrasmall PNRs with a minimum size of ≈1 nm are detected in the high-entropy ceramics. Ultimately, a high recoverable energy density of 10.1 J cm<sup>−3</sup> and an efficiency of 90% are achieved for (Ca<sub>0.2</sub>Sr<sub>0.2</sub>Ba<sub>0.2</sub>Mg<sub>0.05</sub>La<sub>0.05</sub>Bi<sub>0.15</sub>Na<sub>0.15</sub>)TiO<sub>3</sub>. Furthermore, it displays a high-power density of 584 MW cm<sup>−3</sup> and an ultrashort discharge time of 27 ns. This work presents an effective approach for designing dielectric energy storage materials with superior comprehensive performance via a high-entropy strategy.</p>\",\"PeriodicalId\":114,\"journal\":{\"name\":\"Advanced Materials\",\"volume\":\"37 10\",\"pages\":\"\"},\"PeriodicalIF\":26.8000,\"publicationDate\":\"2025-01-31\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Advanced Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://advanced.onlinelibrary.wiley.com/doi/10.1002/adma.202409639\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Materials","FirstCategoryId":"88","ListUrlMain":"https://advanced.onlinelibrary.wiley.com/doi/10.1002/adma.202409639","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

具有高储能性能的介电陶瓷是开发先进大功率电容器的关键材料。然而,实现超高可回收储能密度和效率仍然具有挑战性,限制了前沿储能应用的进展。本研究选择(Bi1/2Na1/2)TiO3 (BNT)作为基体,系统研究了不同A位元素对畴形态、晶格极化、介电和铁电性能的影响。Mg、La、Ca和Sr对弛豫行为有不同程度的增强作用;因此,提出了一种设计局部多态扭曲的高熵策略。基于原子尺度的研究,通过引入微量的Mg和La,设计了一系列基于BNT的高熵组合物,以提高电击穿强度,并进一步破坏极性纳米区域(pnr)。在高熵陶瓷中检测到无序极化分布和最小尺寸约为1 nm的超小pnr。最终,(Ca0.2Sr0.2Ba0.2Mg0.05La0.05Bi0.15Na0.15)TiO3的可回收能量密度达到10.1 J cm−3,效率达到90%。此外,它还具有584 MW cm−3的高功率密度和27 ns的超短放电时间。本文提出了一种利用高熵策略设计具有优异综合性能的电介质储能材料的有效方法。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Atomic-Scale High-Entropy Design for Superior Capacitive Energy Storage Performance in Lead-Free Ceramics

Atomic-Scale High-Entropy Design for Superior Capacitive Energy Storage Performance in Lead-Free Ceramics

Atomic-Scale High-Entropy Design for Superior Capacitive Energy Storage Performance in Lead-Free Ceramics

Atomic-Scale High-Entropy Design for Superior Capacitive Energy Storage Performance in Lead-Free Ceramics

Atomic-Scale High-Entropy Design for Superior Capacitive Energy Storage Performance in Lead-Free Ceramics

Atomic-Scale High-Entropy Design for Superior Capacitive Energy Storage Performance in Lead-Free Ceramics

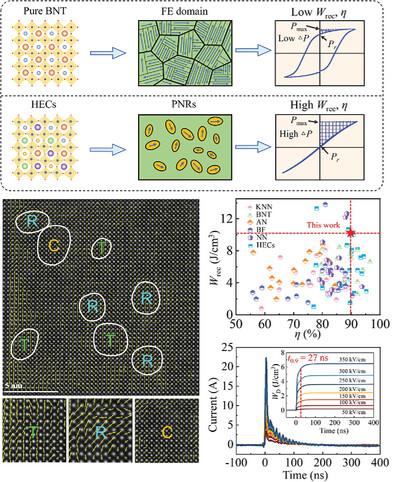

Dielectric ceramics with high energy storage performance are crucial for the development of advanced high-power capacitors. However, achieving ultrahigh recoverable energy storage density and efficiency remains challenging, limiting the progress of leading-edge energy storage applications. In this study, (Bi1/2Na1/2)TiO3 (BNT) is selected as the matrix, and the effects of different A-site elements on domain morphology, lattice polarization, and dielectric and ferroelectric properties are systematically investigated. Mg, La, Ca, and Sr are shown to enhance relaxation behavior by different magnitudes; hence, a high-entropy strategy for designing local polymorphic distortions is proposed. Based on atomic-scale investigations, a series of BNT-based high-entropy compositions are designed by introducing trace amounts of Mg and La to improve the electric breakdown strength and further disrupt the polar nanoscale regions (PNRs). A disordered polarization distribution and ultrasmall PNRs with a minimum size of ≈1 nm are detected in the high-entropy ceramics. Ultimately, a high recoverable energy density of 10.1 J cm−3 and an efficiency of 90% are achieved for (Ca0.2Sr0.2Ba0.2Mg0.05La0.05Bi0.15Na0.15)TiO3. Furthermore, it displays a high-power density of 584 MW cm−3 and an ultrashort discharge time of 27 ns. This work presents an effective approach for designing dielectric energy storage materials with superior comprehensive performance via a high-entropy strategy.
