全向太赫兹响应的仿生无序气凝胶。

IF 26.8 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Hui-Ya Wang, Pengfei Hu, Xiao-Bo Sun, Zhi-Ling Hou, Pei-Yan Zhao, Lu Zhou, Shu-Hao Yang, Chunyan Geng, Yaofeng Zhu, Xiaojun Wu, Guang-Sheng Wang
{"title":"全向太赫兹响应的仿生无序气凝胶。","authors":"Hui-Ya Wang,&nbsp;Pengfei Hu,&nbsp;Xiao-Bo Sun,&nbsp;Zhi-Ling Hou,&nbsp;Pei-Yan Zhao,&nbsp;Lu Zhou,&nbsp;Shu-Hao Yang,&nbsp;Chunyan Geng,&nbsp;Yaofeng Zhu,&nbsp;Xiaojun Wu,&nbsp;Guang-Sheng Wang","doi":"10.1002/adma.202418889","DOIUrl":null,"url":null,"abstract":"<p>The structural disorder of the black butterfly assists in capturing sunlight across a wider spectral and angular range, injecting infinite vitality for omnidirectional and stimuli-responsive wave-absorbing materials. Here, the disordered micro-pores responding to terahertz (THz) waves through electromagnetic simulations, and then prepared via ice templating technology are analyzed and optimized. The customized disordered aerogel makes possible perfect terahertz response property with incidence-angle-insensitive and ultra-broadband. Ti<sub>3</sub>C<sub>2</sub>T<sub>x</sub> MXene/carboxymethyl cellulose aerogels realize excellent shielding effectiveness exceeding 70.32 dB and reflection loss of more than 43.02 dB over the frequency range of 0.3–1.5 THz. Tailoring the structural orientation of anisotropic aerogels functions as a versatile dynamic modulation approach along terahertz propagation direction. The porous structure with moderate conductivity gradually triggers the resonance effect of the cavity, approximating a resonance sphere (pore) and waveguide system (tube). Ultimately, gradient impedance aerogel is proposed integrating THz-infrared stealth, hydrophobicity, and mechanical strength. This inspired biomimetic structural strategy will also enable various terahertz applications such as terahertz imaging, line-of-sight telecommunication, information encryption, and space exploration.</p>","PeriodicalId":114,"journal":{"name":"Advanced Materials","volume":"37 10","pages":""},"PeriodicalIF":26.8000,"publicationDate":"2025-01-31","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Bioinspired Disordered Aerogel for Omnidirectional Terahertz Response\",\"authors\":\"Hui-Ya Wang,&nbsp;Pengfei Hu,&nbsp;Xiao-Bo Sun,&nbsp;Zhi-Ling Hou,&nbsp;Pei-Yan Zhao,&nbsp;Lu Zhou,&nbsp;Shu-Hao Yang,&nbsp;Chunyan Geng,&nbsp;Yaofeng Zhu,&nbsp;Xiaojun Wu,&nbsp;Guang-Sheng Wang\",\"doi\":\"10.1002/adma.202418889\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>The structural disorder of the black butterfly assists in capturing sunlight across a wider spectral and angular range, injecting infinite vitality for omnidirectional and stimuli-responsive wave-absorbing materials. Here, the disordered micro-pores responding to terahertz (THz) waves through electromagnetic simulations, and then prepared via ice templating technology are analyzed and optimized. The customized disordered aerogel makes possible perfect terahertz response property with incidence-angle-insensitive and ultra-broadband. Ti<sub>3</sub>C<sub>2</sub>T<sub>x</sub> MXene/carboxymethyl cellulose aerogels realize excellent shielding effectiveness exceeding 70.32 dB and reflection loss of more than 43.02 dB over the frequency range of 0.3–1.5 THz. Tailoring the structural orientation of anisotropic aerogels functions as a versatile dynamic modulation approach along terahertz propagation direction. The porous structure with moderate conductivity gradually triggers the resonance effect of the cavity, approximating a resonance sphere (pore) and waveguide system (tube). Ultimately, gradient impedance aerogel is proposed integrating THz-infrared stealth, hydrophobicity, and mechanical strength. This inspired biomimetic structural strategy will also enable various terahertz applications such as terahertz imaging, line-of-sight telecommunication, information encryption, and space exploration.</p>\",\"PeriodicalId\":114,\"journal\":{\"name\":\"Advanced Materials\",\"volume\":\"37 10\",\"pages\":\"\"},\"PeriodicalIF\":26.8000,\"publicationDate\":\"2025-01-31\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Advanced Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://advanced.onlinelibrary.wiley.com/doi/10.1002/adma.202418889\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Materials","FirstCategoryId":"88","ListUrlMain":"https://advanced.onlinelibrary.wiley.com/doi/10.1002/adma.202418889","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

黑蝴蝶的结构紊乱有助于在更宽的光谱和角度范围内捕捉阳光,为全向和刺激响应的吸波材料注入无限的活力。在此,通过电磁模拟,分析并优化了对太赫兹(THz)波响应的无序微孔,然后通过冰模板技术制备。定制的无序气凝胶使完美的太赫兹响应特性成为可能,具有入射角不敏感和超宽带。Ti3C2Tx MXene/羧甲基纤维素气凝胶在0.3-1.5 THz频率范围内的屏蔽效果超过70.32 dB,反射损失超过43.02 dB。调整各向异性气凝胶的结构方向是沿太赫兹传播方向的通用动态调制方法。具有中等电导率的多孔结构逐渐触发腔体的共振效应,近似于共振球(孔)和波导系统(管)。最后提出了一种集太赫兹红外隐身、疏水性和机械强度于一体的梯度阻抗气凝胶。这种受启发的仿生结构策略也将使各种太赫兹应用成为可能,如太赫兹成像、视距通信、信息加密和空间探索。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Bioinspired Disordered Aerogel for Omnidirectional Terahertz Response

Bioinspired Disordered Aerogel for Omnidirectional Terahertz Response

Bioinspired Disordered Aerogel for Omnidirectional Terahertz Response

Bioinspired Disordered Aerogel for Omnidirectional Terahertz Response

Bioinspired Disordered Aerogel for Omnidirectional Terahertz Response

Bioinspired Disordered Aerogel for Omnidirectional Terahertz Response

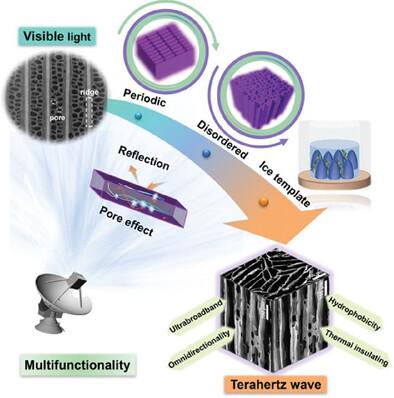

The structural disorder of the black butterfly assists in capturing sunlight across a wider spectral and angular range, injecting infinite vitality for omnidirectional and stimuli-responsive wave-absorbing materials. Here, the disordered micro-pores responding to terahertz (THz) waves through electromagnetic simulations, and then prepared via ice templating technology are analyzed and optimized. The customized disordered aerogel makes possible perfect terahertz response property with incidence-angle-insensitive and ultra-broadband. Ti3C2Tx MXene/carboxymethyl cellulose aerogels realize excellent shielding effectiveness exceeding 70.32 dB and reflection loss of more than 43.02 dB over the frequency range of 0.3–1.5 THz. Tailoring the structural orientation of anisotropic aerogels functions as a versatile dynamic modulation approach along terahertz propagation direction. The porous structure with moderate conductivity gradually triggers the resonance effect of the cavity, approximating a resonance sphere (pore) and waveguide system (tube). Ultimately, gradient impedance aerogel is proposed integrating THz-infrared stealth, hydrophobicity, and mechanical strength. This inspired biomimetic structural strategy will also enable various terahertz applications such as terahertz imaging, line-of-sight telecommunication, information encryption, and space exploration.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Advanced Materials
Advanced Materials 工程技术-材料科学:综合
CiteScore
43.00
自引率
4.10%
发文量
2182
审稿时长
2 months
期刊介绍: Advanced Materials, one of the world's most prestigious journals and the foundation of the Advanced portfolio, is the home of choice for best-in-class materials science for more than 30 years. Following this fast-growing and interdisciplinary field, we are considering and publishing the most important discoveries on any and all materials from materials scientists, chemists, physicists, engineers as well as health and life scientists and bringing you the latest results and trends in modern materials-related research every week.
×
