基于氟化添加剂辅助与双电层相互作用的硅基阳极电化学界面工程

IF 19 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Ming-Yan Yan, Yu-Hui Zhu, Jia-Yan Liang, Qing-Xiang Liu, Xu-Sheng Zhang, Ge Li, Hua Guo, Min Fan, Wen-Peng Wang, Xingyu Chen, Bao Li, Hui-Juan Yan, Sen Xin, Hongcai Gao
{"title":"基于氟化添加剂辅助与双电层相互作用的硅基阳极电化学界面工程","authors":"Ming-Yan Yan,&nbsp;Yu-Hui Zhu,&nbsp;Jia-Yan Liang,&nbsp;Qing-Xiang Liu,&nbsp;Xu-Sheng Zhang,&nbsp;Ge Li,&nbsp;Hua Guo,&nbsp;Min Fan,&nbsp;Wen-Peng Wang,&nbsp;Xingyu Chen,&nbsp;Bao Li,&nbsp;Hui-Juan Yan,&nbsp;Sen Xin,&nbsp;Hongcai Gao","doi":"10.1002/adfm.202424674","DOIUrl":null,"url":null,"abstract":"<p>Incorporating functional fluorinated additives into the electrolyte has demonstrated a promising strategy for improving the electrochemical and interfacial stability of silicon-based anode materials. In previous studies, these additives are claimed responsible for formation of a fluorinated solid electrolyte interphase (SEI) owing to matched orbital energy level with the other electrolyte components. The electric double layer (EDL) created via ionic-electronic coupling at a (sub)nanoscale shows potential influence on the initial SEI formation at the anode, yet the underlying relationship among electrolyte additive, EDL and SEI remains obscure. Here, it is shown that, introduction of 0.5 wt.% trimethylsilyl trifluoromethanesulfonate (TMSOTF) additive into a conventional LiPF<sub>6</sub>-based electrolyte helps to refine the EDL configuration, allowing stronger participation of additive molecules and counter anions for building a fluoride-rich layers during initial SEI formation. This dynamic maintenance of an inorganic-rich matrix (LiF, Li<sub>x</sub>PO<sub>y</sub>F<sub>z</sub>, and Li<sub>x</sub>S<sub>y</sub>) throughout the electrochemical process results in a SEI with optimized chemical composition, enhancing Li<sup>+</sup> transport, mechanical strength, and structural integrity. Consequently, a SiO<sub>x</sub> (x≈1) anode exhibits improved cycling and rate performance, and electrode conformality. This work helps to clarify the EDL-SEI interplay and provide guidelines for rational design of kinetically-stable SEI on a high-capacity anode with substantial volume variations.</p>","PeriodicalId":112,"journal":{"name":"Advanced Functional Materials","volume":"35 25","pages":""},"PeriodicalIF":19.0000,"publicationDate":"2025-01-28","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Electrochemical Interface Engineering on a Silicon-Based Anode via Fluorinated-Additive-Assisted Interplay with the Electric Double Layer\",\"authors\":\"Ming-Yan Yan,&nbsp;Yu-Hui Zhu,&nbsp;Jia-Yan Liang,&nbsp;Qing-Xiang Liu,&nbsp;Xu-Sheng Zhang,&nbsp;Ge Li,&nbsp;Hua Guo,&nbsp;Min Fan,&nbsp;Wen-Peng Wang,&nbsp;Xingyu Chen,&nbsp;Bao Li,&nbsp;Hui-Juan Yan,&nbsp;Sen Xin,&nbsp;Hongcai Gao\",\"doi\":\"10.1002/adfm.202424674\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Incorporating functional fluorinated additives into the electrolyte has demonstrated a promising strategy for improving the electrochemical and interfacial stability of silicon-based anode materials. In previous studies, these additives are claimed responsible for formation of a fluorinated solid electrolyte interphase (SEI) owing to matched orbital energy level with the other electrolyte components. The electric double layer (EDL) created via ionic-electronic coupling at a (sub)nanoscale shows potential influence on the initial SEI formation at the anode, yet the underlying relationship among electrolyte additive, EDL and SEI remains obscure. Here, it is shown that, introduction of 0.5 wt.% trimethylsilyl trifluoromethanesulfonate (TMSOTF) additive into a conventional LiPF<sub>6</sub>-based electrolyte helps to refine the EDL configuration, allowing stronger participation of additive molecules and counter anions for building a fluoride-rich layers during initial SEI formation. This dynamic maintenance of an inorganic-rich matrix (LiF, Li<sub>x</sub>PO<sub>y</sub>F<sub>z</sub>, and Li<sub>x</sub>S<sub>y</sub>) throughout the electrochemical process results in a SEI with optimized chemical composition, enhancing Li<sup>+</sup> transport, mechanical strength, and structural integrity. Consequently, a SiO<sub>x</sub> (x≈1) anode exhibits improved cycling and rate performance, and electrode conformality. This work helps to clarify the EDL-SEI interplay and provide guidelines for rational design of kinetically-stable SEI on a high-capacity anode with substantial volume variations.</p>\",\"PeriodicalId\":112,\"journal\":{\"name\":\"Advanced Functional Materials\",\"volume\":\"35 25\",\"pages\":\"\"},\"PeriodicalIF\":19.0000,\"publicationDate\":\"2025-01-28\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Advanced Functional Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://advanced.onlinelibrary.wiley.com/doi/10.1002/adfm.202424674\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Functional Materials","FirstCategoryId":"88","ListUrlMain":"https://advanced.onlinelibrary.wiley.com/doi/10.1002/adfm.202424674","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

在电解液中加入功能性氟化添加剂是改善硅基阳极材料的电化学和界面稳定性的一种很有前途的策略。在以前的研究中,这些添加剂被认为是氟化固体电解质界面(SEI)形成的原因,因为它们与其他电解质成分的轨道能级相匹配。通过(亚)纳米级离子-电子耦合产生的双电层(EDL)对阳极初始SEI形成有潜在影响,但电解质添加剂、EDL和SEI之间的潜在关系尚不清楚。本研究表明,在传统的lipf6基电解质中引入0.5 wt.%的三甲基硅基三氟甲烷磺酸盐(TMSOTF)添加剂有助于改善EDL结构,允许添加剂分子和反阴离子在初始SEI形成过程中更强地参与构建富氟层。在整个电化学过程中,这种富无机基质(LiF、LixPOyFz和LixSy)的动态维持导致SEI具有优化的化学成分,增强了Li+的传输、机械强度和结构完整性。因此,SiOx (x≈1)阳极表现出更好的循环和速率性能,以及电极一致性。这项工作有助于澄清EDL-SEI的相互作用,并为在具有大量体积变化的高容量阳极上合理设计动力学稳定的SEI提供指导。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Electrochemical Interface Engineering on a Silicon-Based Anode via Fluorinated-Additive-Assisted Interplay with the Electric Double Layer

Electrochemical Interface Engineering on a Silicon-Based Anode via Fluorinated-Additive-Assisted Interplay with the Electric Double Layer

Electrochemical Interface Engineering on a Silicon-Based Anode via Fluorinated-Additive-Assisted Interplay with the Electric Double Layer

Electrochemical Interface Engineering on a Silicon-Based Anode via Fluorinated-Additive-Assisted Interplay with the Electric Double Layer

Electrochemical Interface Engineering on a Silicon-Based Anode via Fluorinated-Additive-Assisted Interplay with the Electric Double Layer

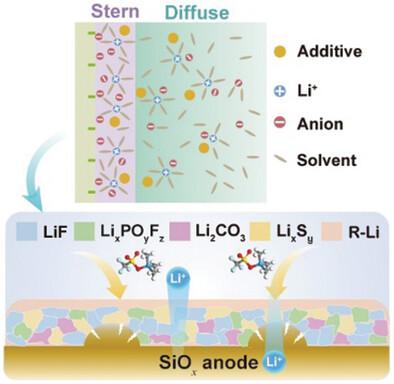

Incorporating functional fluorinated additives into the electrolyte has demonstrated a promising strategy for improving the electrochemical and interfacial stability of silicon-based anode materials. In previous studies, these additives are claimed responsible for formation of a fluorinated solid electrolyte interphase (SEI) owing to matched orbital energy level with the other electrolyte components. The electric double layer (EDL) created via ionic-electronic coupling at a (sub)nanoscale shows potential influence on the initial SEI formation at the anode, yet the underlying relationship among electrolyte additive, EDL and SEI remains obscure. Here, it is shown that, introduction of 0.5 wt.% trimethylsilyl trifluoromethanesulfonate (TMSOTF) additive into a conventional LiPF6-based electrolyte helps to refine the EDL configuration, allowing stronger participation of additive molecules and counter anions for building a fluoride-rich layers during initial SEI formation. This dynamic maintenance of an inorganic-rich matrix (LiF, LixPOyFz, and LixSy) throughout the electrochemical process results in a SEI with optimized chemical composition, enhancing Li+ transport, mechanical strength, and structural integrity. Consequently, a SiOx (x≈1) anode exhibits improved cycling and rate performance, and electrode conformality. This work helps to clarify the EDL-SEI interplay and provide guidelines for rational design of kinetically-stable SEI on a high-capacity anode with substantial volume variations.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Advanced Functional Materials
Advanced Functional Materials 工程技术-材料科学:综合
CiteScore
29.50
自引率
4.20%
发文量
2086
审稿时长
2.1 months
期刊介绍: Firmly established as a top-tier materials science journal, Advanced Functional Materials reports breakthrough research in all aspects of materials science, including nanotechnology, chemistry, physics, and biology every week. Advanced Functional Materials is known for its rapid and fair peer review, quality content, and high impact, making it the first choice of the international materials science community.
×
