通过n掺杂碳点调制内置电场在大电流密度下的鲁棒析氧

IF 12.1 2区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Small Pub Date : 2025-01-16 DOI:10.1002/smll.202410399
Huimin Yang, Jianguo Dong, Xuena Gao, Chunmei Ni, Zhao Li, Yuanyuan Liu, Jing Li, Xiaoyan He, Wenyi Tan, Ligang Feng, Lin Tian
{"title":"通过n掺杂碳点调制内置电场在大电流密度下的鲁棒析氧","authors":"Huimin Yang,&nbsp;Jianguo Dong,&nbsp;Xuena Gao,&nbsp;Chunmei Ni,&nbsp;Zhao Li,&nbsp;Yuanyuan Liu,&nbsp;Jing Li,&nbsp;Xiaoyan He,&nbsp;Wenyi Tan,&nbsp;Ligang Feng,&nbsp;Lin Tian","doi":"10.1002/smll.202410399","DOIUrl":null,"url":null,"abstract":"<p>Constructing a built-in electric field (BIEF) within heterostructures has emerged as a compelling strategy for advancing electrocatalytic oxygen evolution reaction (OER) performance. Herein, the p-n type nanosheet array heterojunction Ni<sub>2</sub>P-NCDs-Co(OH)<sub>2</sub>-NF are successfully prepared. The variation in interaction affinity between nitrogen within N-doped carbon dots (NCDs) and Ni/Co induces charge redistribution between Co and Ni in the Ni<sub>2</sub>P-NCDs-Co(OH)<sub>2</sub>-NF-3 heterostructure, thereby enhancing the intensity of the BIEF, facilitating electron transfer, and markedly improving OER activity. The optimized electrocatalyst, Ni<sub>2</sub>P-NCDs-Co(OH)<sub>2</sub>-NF-3, demonstrates a remarkably low overpotential of 389 mV at 500 mA cm<sup>−2</sup>, alongsides a small Tafel slope of 65 mV dec<sup>−1</sup>, expansive electrochemical active surface area (ECSA), low impedance, outstanding stability exceeding 425 h at 500 mA cm<sup>−2</sup>, and a Faradaic efficiency of up to 96%. In situ Raman spectroscopy and density functional theoretical (DFT) calculations elucidate the OER mechanism, revealing that the enhanced BIEF optimizes the adsorption energy of Co<sup>3+</sup> to OH<sup>−</sup> and weakened the desorption energy of oxygen during the reaction. The work ponieeringly employed the NCDs as a regulator of the BIEF, effectively tuning field intensity and achieving superior electrocatalytic OER performance under large current density, thus charting new pathways for the development of high-efficiency oxygen evolution electrocatalysts.</p>","PeriodicalId":228,"journal":{"name":"Small","volume":"21 13","pages":""},"PeriodicalIF":12.1000,"publicationDate":"2025-01-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Modulating Built-In Electric Field Via N-Doped Carbon Dots for Robust Oxygen Evolution at Large Current Density\",\"authors\":\"Huimin Yang,&nbsp;Jianguo Dong,&nbsp;Xuena Gao,&nbsp;Chunmei Ni,&nbsp;Zhao Li,&nbsp;Yuanyuan Liu,&nbsp;Jing Li,&nbsp;Xiaoyan He,&nbsp;Wenyi Tan,&nbsp;Ligang Feng,&nbsp;Lin Tian\",\"doi\":\"10.1002/smll.202410399\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Constructing a built-in electric field (BIEF) within heterostructures has emerged as a compelling strategy for advancing electrocatalytic oxygen evolution reaction (OER) performance. Herein, the p-n type nanosheet array heterojunction Ni<sub>2</sub>P-NCDs-Co(OH)<sub>2</sub>-NF are successfully prepared. The variation in interaction affinity between nitrogen within N-doped carbon dots (NCDs) and Ni/Co induces charge redistribution between Co and Ni in the Ni<sub>2</sub>P-NCDs-Co(OH)<sub>2</sub>-NF-3 heterostructure, thereby enhancing the intensity of the BIEF, facilitating electron transfer, and markedly improving OER activity. The optimized electrocatalyst, Ni<sub>2</sub>P-NCDs-Co(OH)<sub>2</sub>-NF-3, demonstrates a remarkably low overpotential of 389 mV at 500 mA cm<sup>−2</sup>, alongsides a small Tafel slope of 65 mV dec<sup>−1</sup>, expansive electrochemical active surface area (ECSA), low impedance, outstanding stability exceeding 425 h at 500 mA cm<sup>−2</sup>, and a Faradaic efficiency of up to 96%. In situ Raman spectroscopy and density functional theoretical (DFT) calculations elucidate the OER mechanism, revealing that the enhanced BIEF optimizes the adsorption energy of Co<sup>3+</sup> to OH<sup>−</sup> and weakened the desorption energy of oxygen during the reaction. The work ponieeringly employed the NCDs as a regulator of the BIEF, effectively tuning field intensity and achieving superior electrocatalytic OER performance under large current density, thus charting new pathways for the development of high-efficiency oxygen evolution electrocatalysts.</p>\",\"PeriodicalId\":228,\"journal\":{\"name\":\"Small\",\"volume\":\"21 13\",\"pages\":\"\"},\"PeriodicalIF\":12.1000,\"publicationDate\":\"2025-01-16\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Small\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://onlinelibrary.wiley.com/doi/10.1002/smll.202410399\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Small","FirstCategoryId":"88","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/smll.202410399","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

在异质结构中构建内置电场(BIEF)已成为提高电催化析氧反应(OER)性能的一种引人注目的策略。本文成功制备了p-n型纳米片阵列异质结Ni2P-NCDs-Co(OH)2-NF。氮掺杂碳点(NCDs)内氮与Ni/Co之间相互作用亲合力的变化,诱导了Ni2P-NCDs-Co(OH)2-NF-3异质结构中Co和Ni之间的电荷再分配,从而增强了BIEF的强度,促进了电子转移,显著提高了OER活性。优化后的电催化剂Ni2P-NCDs-Co(OH)2- nf -3在500 mA cm - 2时的过电位为389 mV, Tafel斜率为65 mV / dec - 1,电化学活性表面积(ECSA)大,阻抗低,在500 mA cm - 2时稳定性超过425 h,法拉第效率高达96%。原位拉曼光谱和密度泛函理论(DFT)计算揭示了OER机理,表明增强的BIEF优化了Co3+对OH -的吸附能,减弱了反应过程中氧的脱附能。本研究将NCDs作为BIEF的调节器,有效地调节了电场强度,并在大电流密度下实现了优异的电催化OER性能,从而为开发高效析氧电催化剂开辟了新的途径。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Modulating Built-In Electric Field Via N-Doped Carbon Dots for Robust Oxygen Evolution at Large Current Density

Modulating Built-In Electric Field Via N-Doped Carbon Dots for Robust Oxygen Evolution at Large Current Density

Modulating Built-In Electric Field Via N-Doped Carbon Dots for Robust Oxygen Evolution at Large Current Density

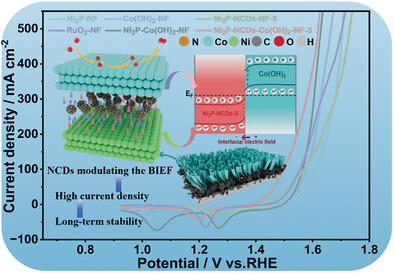

Constructing a built-in electric field (BIEF) within heterostructures has emerged as a compelling strategy for advancing electrocatalytic oxygen evolution reaction (OER) performance. Herein, the p-n type nanosheet array heterojunction Ni2P-NCDs-Co(OH)2-NF are successfully prepared. The variation in interaction affinity between nitrogen within N-doped carbon dots (NCDs) and Ni/Co induces charge redistribution between Co and Ni in the Ni2P-NCDs-Co(OH)2-NF-3 heterostructure, thereby enhancing the intensity of the BIEF, facilitating electron transfer, and markedly improving OER activity. The optimized electrocatalyst, Ni2P-NCDs-Co(OH)2-NF-3, demonstrates a remarkably low overpotential of 389 mV at 500 mA cm−2, alongsides a small Tafel slope of 65 mV dec−1, expansive electrochemical active surface area (ECSA), low impedance, outstanding stability exceeding 425 h at 500 mA cm−2, and a Faradaic efficiency of up to 96%. In situ Raman spectroscopy and density functional theoretical (DFT) calculations elucidate the OER mechanism, revealing that the enhanced BIEF optimizes the adsorption energy of Co3+ to OH and weakened the desorption energy of oxygen during the reaction. The work ponieeringly employed the NCDs as a regulator of the BIEF, effectively tuning field intensity and achieving superior electrocatalytic OER performance under large current density, thus charting new pathways for the development of high-efficiency oxygen evolution electrocatalysts.
