多功能硅氧烷添加剂实现30和60°C下长循环寿命的超高镍锂电池

IF 12.1 2区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Small Pub Date : 2025-01-07 DOI:10.1002/smll.202409586
Xilong Chen, Zhili Yu, Xiangjie Li, Zhaoyu Sun, Guozheng Ma, Qiyun Li, Yingchun Ou, Yuxuan Liu, Renzong Hu
{"title":"多功能硅氧烷添加剂实现30和60°C下长循环寿命的超高镍锂电池","authors":"Xilong Chen,&nbsp;Zhili Yu,&nbsp;Xiangjie Li,&nbsp;Zhaoyu Sun,&nbsp;Guozheng Ma,&nbsp;Qiyun Li,&nbsp;Yingchun Ou,&nbsp;Yuxuan Liu,&nbsp;Renzong Hu","doi":"10.1002/smll.202409586","DOIUrl":null,"url":null,"abstract":"<p>Ultrahigh-nickel layered oxide cathodes (≥90% nickel) possess exceptionally high discharge capacities, which can significantly improve the energy density of lithium-ion batteries and alleviate the driving range anxiety of electric vehicles. However, the high interfacial reactivity of ultrahigh-nickel cathodes, especially the detrimental side reactions with harmful acidic species like HF in the electrolyte, can deteriorate the battery interface and reduce the cycle life, hindering their practical application. In this study, 3-isocyanatopropyltrimethoxysilane (PTTS-NCO) is introduced as the electrolyte additive, which can effectively scavenge the harmful acidic species in the electrolyte and form a protective surface layer at the electrode/electrolyte interface, thereby enhancing the electrochemical performance of the battery (NCM90/Li). Specifically, the most effective battery based on the PTTS-NCO additive can maintain 70.3% of its capacity after 500 cycles at 30 °C. Even under a high cathode loading (3.0 mAh cm<sup>−2</sup>), it can retain 86.2% of its capacity after 300 cycles, far exceeding the base battery. Furthermore, it exhibits good performance under the harsh high-temperature environment, maintaining over 70.3% capacity retention in the NCM90/Li battery up to 350 cycles at 60 °C. This work demonstrates the great potential of multifunctional siloxane additive in lithium batteries based on ultrahigh-nickel cathode.</p>","PeriodicalId":228,"journal":{"name":"Small","volume":"21 7","pages":""},"PeriodicalIF":12.1000,"publicationDate":"2025-01-07","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Multifunctional Siloxane Additive Enabling Ultrahigh-Nickel Lithium Battery with Long Cycle Life at 30  and 60 °C\",\"authors\":\"Xilong Chen,&nbsp;Zhili Yu,&nbsp;Xiangjie Li,&nbsp;Zhaoyu Sun,&nbsp;Guozheng Ma,&nbsp;Qiyun Li,&nbsp;Yingchun Ou,&nbsp;Yuxuan Liu,&nbsp;Renzong Hu\",\"doi\":\"10.1002/smll.202409586\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Ultrahigh-nickel layered oxide cathodes (≥90% nickel) possess exceptionally high discharge capacities, which can significantly improve the energy density of lithium-ion batteries and alleviate the driving range anxiety of electric vehicles. However, the high interfacial reactivity of ultrahigh-nickel cathodes, especially the detrimental side reactions with harmful acidic species like HF in the electrolyte, can deteriorate the battery interface and reduce the cycle life, hindering their practical application. In this study, 3-isocyanatopropyltrimethoxysilane (PTTS-NCO) is introduced as the electrolyte additive, which can effectively scavenge the harmful acidic species in the electrolyte and form a protective surface layer at the electrode/electrolyte interface, thereby enhancing the electrochemical performance of the battery (NCM90/Li). Specifically, the most effective battery based on the PTTS-NCO additive can maintain 70.3% of its capacity after 500 cycles at 30 °C. Even under a high cathode loading (3.0 mAh cm<sup>−2</sup>), it can retain 86.2% of its capacity after 300 cycles, far exceeding the base battery. Furthermore, it exhibits good performance under the harsh high-temperature environment, maintaining over 70.3% capacity retention in the NCM90/Li battery up to 350 cycles at 60 °C. This work demonstrates the great potential of multifunctional siloxane additive in lithium batteries based on ultrahigh-nickel cathode.</p>\",\"PeriodicalId\":228,\"journal\":{\"name\":\"Small\",\"volume\":\"21 7\",\"pages\":\"\"},\"PeriodicalIF\":12.1000,\"publicationDate\":\"2025-01-07\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Small\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://onlinelibrary.wiley.com/doi/10.1002/smll.202409586\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Small","FirstCategoryId":"88","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/smll.202409586","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

超高镍层状氧化物阴极(镍含量≥90%)具有极高的放电容量,可显著提高锂离子电池的能量密度,缓解电动汽车续驶里程焦虑。然而,超高镍阴极的高界面反应性,特别是与电解液中HF等有害酸性物质的不良副反应,会使电池界面恶化,降低循环寿命,阻碍了其实际应用。本研究引入3-异氰基丙基三甲氧基硅烷(pttts - nco)作为电解液添加剂,能有效清除电解液中的有害酸性物质,并在电极/电解液界面处形成保护表面层,从而提高电池(NCM90/Li)的电化学性能。具体来说,基于pttts - nco添加剂的最有效电池在30°C下循环500次后仍能保持70.3%的容量。即使在高负极负载(3.0 mAh cm−2)下,300次循环后仍能保持86.2%的容量,远远超过基础电池。此外,它在恶劣的高温环境下表现出良好的性能,在NCM90/Li电池中,在60°C下循环350次,保持超过70.3%的容量保持。这项工作证明了多功能硅氧烷添加剂在基于超高镍阴极的锂电池中的巨大潜力。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Multifunctional Siloxane Additive Enabling Ultrahigh-Nickel Lithium Battery with Long Cycle Life at 30  and 60 °C

Multifunctional Siloxane Additive Enabling Ultrahigh-Nickel Lithium Battery with Long Cycle Life at 30  and 60 °C

Multifunctional Siloxane Additive Enabling Ultrahigh-Nickel Lithium Battery with Long Cycle Life at 30  and 60 °C

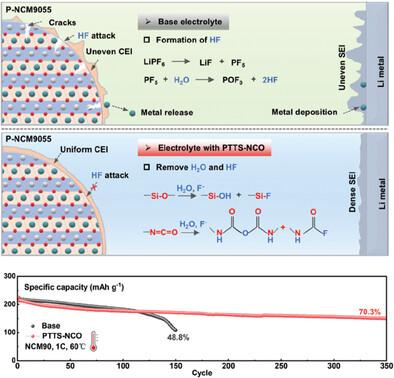

Ultrahigh-nickel layered oxide cathodes (≥90% nickel) possess exceptionally high discharge capacities, which can significantly improve the energy density of lithium-ion batteries and alleviate the driving range anxiety of electric vehicles. However, the high interfacial reactivity of ultrahigh-nickel cathodes, especially the detrimental side reactions with harmful acidic species like HF in the electrolyte, can deteriorate the battery interface and reduce the cycle life, hindering their practical application. In this study, 3-isocyanatopropyltrimethoxysilane (PTTS-NCO) is introduced as the electrolyte additive, which can effectively scavenge the harmful acidic species in the electrolyte and form a protective surface layer at the electrode/electrolyte interface, thereby enhancing the electrochemical performance of the battery (NCM90/Li). Specifically, the most effective battery based on the PTTS-NCO additive can maintain 70.3% of its capacity after 500 cycles at 30 °C. Even under a high cathode loading (3.0 mAh cm−2), it can retain 86.2% of its capacity after 300 cycles, far exceeding the base battery. Furthermore, it exhibits good performance under the harsh high-temperature environment, maintaining over 70.3% capacity retention in the NCM90/Li battery up to 350 cycles at 60 °C. This work demonstrates the great potential of multifunctional siloxane additive in lithium batteries based on ultrahigh-nickel cathode.
