相变相边界的激光诱导相控制

IF 8.2 2区材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY

ACS Applied Materials & Interfaces Pub Date : 2025-01-02 DOI:10.1021/acsami.4c10813

Seung-Mo Kim, Minjae Kim, Chan Bin Lee, Useok Choi, Min Gyu Kwon, Ki Sung Kim, Joon Kim, Hyeon Jun Hwang, Byoung Hun Lee

{"title":"相变相边界的激光诱导相控制","authors":"Seung-Mo Kim, Minjae Kim, Chan Bin Lee, Useok Choi, Min Gyu Kwon, Ki Sung Kim, Joon Kim, Hyeon Jun Hwang, Byoung Hun Lee","doi":"10.1021/acsami.4c10813","DOIUrl":null,"url":null,"abstract":"A novel approach to delicately control the phase of a ferroelectric has been developed using a continuous-wave laser scanning annealing (CW-LSA) process. After proper process optimization, the equivalent oxide thickness (EOT) of 3.5 Å with a dielectric constant (κ) of 68 Å is achieved from HZO in a metal–ferroelectric–metal (MFM) capacitor structure. The leakage current density (Jg = 4.6 × 10–5 A/cm2 at +0.8 V) was four times lower compared to the reference group treated with an optimized RTA process. The outstanding electrical characteristics of the 6 nm HZO film were attributed to the stable formation of the morphotropic phase boundary (MPB) structure, which was enabled by the directional scanning nature of the CW-LSA process.","PeriodicalId":5,"journal":{"name":"ACS Applied Materials & Interfaces","volume":"1 1","pages":""},"PeriodicalIF":8.2000,"publicationDate":"2025-01-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Laser-Induced Phase Control of Morphotropic Phase Boundary Hafnium–Zirconium Oxide\",\"authors\":\"Seung-Mo Kim, Minjae Kim, Chan Bin Lee, Useok Choi, Min Gyu Kwon, Ki Sung Kim, Joon Kim, Hyeon Jun Hwang, Byoung Hun Lee\",\"doi\":\"10.1021/acsami.4c10813\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"A novel approach to delicately control the phase of a ferroelectric has been developed using a continuous-wave laser scanning annealing (CW-LSA) process. After proper process optimization, the equivalent oxide thickness (EOT) of 3.5 Å with a dielectric constant (κ) of 68 Å is achieved from HZO in a metal–ferroelectric–metal (MFM) capacitor structure. The leakage current density (Jg = 4.6 × 10–5 A/cm2 at +0.8 V) was four times lower compared to the reference group treated with an optimized RTA process. The outstanding electrical characteristics of the 6 nm HZO film were attributed to the stable formation of the morphotropic phase boundary (MPB) structure, which was enabled by the directional scanning nature of the CW-LSA process.\",\"PeriodicalId\":5,\"journal\":{\"name\":\"ACS Applied Materials & Interfaces\",\"volume\":\"1 1\",\"pages\":\"\"},\"PeriodicalIF\":8.2000,\"publicationDate\":\"2025-01-02\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Materials & Interfaces\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1021/acsami.4c10813\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Materials & Interfaces","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acsami.4c10813","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

摘要

提出了一种利用连续波激光扫描退火（CW-LSA）工艺精确控制铁电体相位的新方法。经过适当的工艺优化，在金属-铁电-金属（MFM）电容器结构中，HZO的等效氧化物厚度（EOT）为3.5 Å，介电常数（κ）为68 Å。泄漏电流密度（+0.8 V时Jg = 4.6 × 10-5 A/cm2）比采用优化RTA工艺处理的对照组低4倍。6nm HZO薄膜具有优异的电特性，这是由于CW-LSA过程的定向扫描特性使其形成了稳定的致形相边界（MPB）结构。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Laser-Induced Phase Control of Morphotropic Phase Boundary Hafnium–Zirconium Oxide

查看原文本刊更多论文

Laser-Induced Phase Control of Morphotropic Phase Boundary Hafnium–Zirconium Oxide

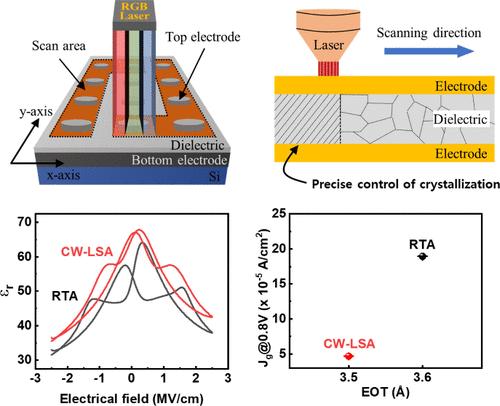

A novel approach to delicately control the phase of a ferroelectric has been developed using a continuous-wave laser scanning annealing (CW-LSA) process. After proper process optimization, the equivalent oxide thickness (EOT) of 3.5 Å with a dielectric constant (κ) of 68 Å is achieved from HZO in a metal–ferroelectric–metal (MFM) capacitor structure. The leakage current density (J_g = 4.6 × 10^–5 A/cm² at +0.8 V) was four times lower compared to the reference group treated with an optimized RTA process. The outstanding electrical characteristics of the 6 nm HZO film were attributed to the stable formation of the morphotropic phase boundary (MPB) structure, which was enabled by the directional scanning nature of the CW-LSA process.
