惰性中间层确保柔性单片钙钛矿/CIGS串联太阳能电池的效率超过21%

IF 18.2 1区 材料科学 Q1 CHEMISTRY, PHYSICAL
Weizhong Tian, Libing Yao, Enbing Bi, Shaochen Zhang, Yuan Tian, Jingjing Zhou, Xiaonan Wang, Mustafa Haider, Jingjing Xue, Rui Wang
{"title":"惰性中间层确保柔性单片钙钛矿/CIGS串联太阳能电池的效率超过21%","authors":"Weizhong Tian, Libing Yao, Enbing Bi, Shaochen Zhang, Yuan Tian, Jingjing Zhou, Xiaonan Wang, Mustafa Haider, Jingjing Xue, Rui Wang","doi":"10.1021/acsenergylett.4c02900","DOIUrl":null,"url":null,"abstract":"Since mature CIGS products inherently bear an aluminum-doped ZnO (AZO) transparent conductive layer, whether it is necessary to deposit another transparent conductive thin layer using other materials such as indium tin oxide (ITO), indium zinc oxide (IZO) still remains a basic open question. Here we demonstrate that deposition of an inert interlayer preceding fabrication of the perovskite top cell is essentially warranted because the AZO layer is shown to be destructive toward the perovskite thin films. Flexible monolithic perovskite/CIGS tandem photovoltaics with an IZO interlayer achieved a high-performing efficiency of 21.24% with substantially improved stability at elevated temperatures. The unencapsulated target tandem solar cell retained 80% of its initial efficiency after 120 min of continuous maximum power (MPP) point operation at ∼90 °C in ambient air, while the control tandem device without the IZO interlayer failed after ∼25 min of operation under the same conditions.","PeriodicalId":16,"journal":{"name":"ACS Energy Letters ","volume":"11 1","pages":""},"PeriodicalIF":18.2000,"publicationDate":"2025-01-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Inert Interlayer Secures Flexible Monolithic Perovskite/CIGS Tandem Solar Cells with Efficiency Beyond 21%\",\"authors\":\"Weizhong Tian, Libing Yao, Enbing Bi, Shaochen Zhang, Yuan Tian, Jingjing Zhou, Xiaonan Wang, Mustafa Haider, Jingjing Xue, Rui Wang\",\"doi\":\"10.1021/acsenergylett.4c02900\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Since mature CIGS products inherently bear an aluminum-doped ZnO (AZO) transparent conductive layer, whether it is necessary to deposit another transparent conductive thin layer using other materials such as indium tin oxide (ITO), indium zinc oxide (IZO) still remains a basic open question. Here we demonstrate that deposition of an inert interlayer preceding fabrication of the perovskite top cell is essentially warranted because the AZO layer is shown to be destructive toward the perovskite thin films. Flexible monolithic perovskite/CIGS tandem photovoltaics with an IZO interlayer achieved a high-performing efficiency of 21.24% with substantially improved stability at elevated temperatures. The unencapsulated target tandem solar cell retained 80% of its initial efficiency after 120 min of continuous maximum power (MPP) point operation at ∼90 °C in ambient air, while the control tandem device without the IZO interlayer failed after ∼25 min of operation under the same conditions.\",\"PeriodicalId\":16,\"journal\":{\"name\":\"ACS Energy Letters \",\"volume\":\"11 1\",\"pages\":\"\"},\"PeriodicalIF\":18.2000,\"publicationDate\":\"2025-01-02\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Energy Letters \",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1021/acsenergylett.4c02900\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Energy Letters ","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acsenergylett.4c02900","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

由于成熟的CIGS产品固有地带有掺杂铝的ZnO (AZO)透明导电层,因此是否需要使用氧化铟锡(ITO)、氧化铟锌(IZO)等其他材料沉积另一层透明导电薄层仍然是一个基本的开放性问题。在这里,我们证明了在制备钙钛矿顶部电池之前沉积惰性间层是必要的,因为AZO层被证明对钙钛矿薄膜具有破坏性。具有IZO中间层的柔性单片钙钛矿/CIGS串联光伏电池实现了21.24%的高性能效率,并大大提高了高温下的稳定性。未封装的目标串联太阳能电池在环境空气中在~ 90°C下连续最大功率(MPP)点运行120分钟后保持了80%的初始效率,而没有IZO中间层的控制串联装置在相同条件下运行~ 25分钟后失效。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Inert Interlayer Secures Flexible Monolithic Perovskite/CIGS Tandem Solar Cells with Efficiency Beyond 21%

Inert Interlayer Secures Flexible Monolithic Perovskite/CIGS Tandem Solar Cells with Efficiency Beyond 21%

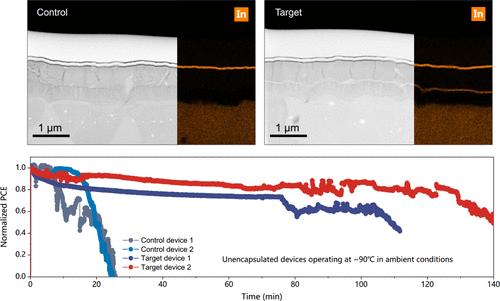

Since mature CIGS products inherently bear an aluminum-doped ZnO (AZO) transparent conductive layer, whether it is necessary to deposit another transparent conductive thin layer using other materials such as indium tin oxide (ITO), indium zinc oxide (IZO) still remains a basic open question. Here we demonstrate that deposition of an inert interlayer preceding fabrication of the perovskite top cell is essentially warranted because the AZO layer is shown to be destructive toward the perovskite thin films. Flexible monolithic perovskite/CIGS tandem photovoltaics with an IZO interlayer achieved a high-performing efficiency of 21.24% with substantially improved stability at elevated temperatures. The unencapsulated target tandem solar cell retained 80% of its initial efficiency after 120 min of continuous maximum power (MPP) point operation at ∼90 °C in ambient air, while the control tandem device without the IZO interlayer failed after ∼25 min of operation under the same conditions.
求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
ACS Energy Letters
ACS Energy Letters Energy-Renewable Energy, Sustainability and the Environment
CiteScore
31.20
自引率
5.00%
发文量
469
审稿时长
1 months
期刊介绍: ACS Energy Letters is a monthly journal that publishes papers reporting new scientific advances in energy research. The journal focuses on topics that are of interest to scientists working in the fundamental and applied sciences. Rapid publication is a central criterion for acceptance, and the journal is known for its quick publication times, with an average of 4-6 weeks from submission to web publication in As Soon As Publishable format. ACS Energy Letters is ranked as the number one journal in the Web of Science Electrochemistry category. It also ranks within the top 10 journals for Physical Chemistry, Energy & Fuels, and Nanoscience & Nanotechnology. The journal offers several types of articles, including Letters, Energy Express, Perspectives, Reviews, Editorials, Viewpoints and Energy Focus. Additionally, authors have the option to submit videos that summarize or support the information presented in a Perspective or Review article, which can be highlighted on the journal's website. ACS Energy Letters is abstracted and indexed in Chemical Abstracts Service/SciFinder, EBSCO-summon, PubMed, Web of Science, Scopus and Portico.
×
