快速制备热电性能高的硒化银薄膜的方法

IF 12.1 2区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Small Pub Date : 2025-01-02 DOI:10.1002/smll.202408477
Carlos Augusto Martín Román-Varela, Ma. Estela Calixto, Carolina Janani Diliegros-Godines, Alexandra Bustamante, Miguel ÁngelContreras-Ruiz, BernabéMari Soucase, Ullah Shafi
{"title":"快速制备热电性能高的硒化银薄膜的方法","authors":"Carlos Augusto Martín Román-Varela,&nbsp;Ma. Estela Calixto,&nbsp;Carolina Janani Diliegros-Godines,&nbsp;Alexandra Bustamante,&nbsp;Miguel ÁngelContreras-Ruiz,&nbsp;BernabéMari Soucase,&nbsp;Ullah Shafi","doi":"10.1002/smll.202408477","DOIUrl":null,"url":null,"abstract":"<p>Metal chalcogenides have been extensively studied for thermoelectric applications. Among other metal chalcogenides, silver selenide (Ag<sub>2</sub>Se) is considered one of the most promising n-type semiconducting materials for thermoelectric applications due to its low band gap value, Seebeck coefficient, and superior power factor (<i>PF</i>) rendered at room temperature. However, one of the main drawbacks of using Ag<sub>2</sub>Se as a thermoelectric material on a large scale is the time-consuming physical methods to obtain them, and the need for high vacuum synthesis conditions as well as high-cost. On the contrary, the electrodeposition route offers a fast, low-cost, reliable, eco-friendly, and reproducible synthesis methodology to obtain β-Ag<sub>2</sub>Se thin films, avoiding the use of high vacuum, which is especially important for scaling up to industrial processing levels. In this study, a facile and rapid strategy is reported to obtain β-Ag<sub>2</sub>Se thin films with controlled thickness using an electrodeposition technique. As-electrodeposited β-Ag<sub>2</sub>Se film with a thickness of 740 nm delivered a <i>PF</i> = 5.59 µW cm<sup>−1</sup> K<sup>2</sup>, while an 880 nm β-Ag<sub>2</sub>Se film annealed at 210 °C exhibits a higher <i>PF</i> = 11.69 µW cm<sup>−1</sup> K<sup>2</sup>. The results demonstrate a rapid preparation of high purity β-Ag<sub>2</sub>Se thin film with superior thermoelectric performance, provides potential opportunities in the development of efficient thermoelectric devices.</p>","PeriodicalId":228,"journal":{"name":"Small","volume":"21 6","pages":""},"PeriodicalIF":12.1000,"publicationDate":"2025-01-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"A Rapid Methodology to Obtain Silver Selenide thin Films with Highly Enhanced Thermoelectric Performance\",\"authors\":\"Carlos Augusto Martín Román-Varela,&nbsp;Ma. Estela Calixto,&nbsp;Carolina Janani Diliegros-Godines,&nbsp;Alexandra Bustamante,&nbsp;Miguel ÁngelContreras-Ruiz,&nbsp;BernabéMari Soucase,&nbsp;Ullah Shafi\",\"doi\":\"10.1002/smll.202408477\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Metal chalcogenides have been extensively studied for thermoelectric applications. Among other metal chalcogenides, silver selenide (Ag<sub>2</sub>Se) is considered one of the most promising n-type semiconducting materials for thermoelectric applications due to its low band gap value, Seebeck coefficient, and superior power factor (<i>PF</i>) rendered at room temperature. However, one of the main drawbacks of using Ag<sub>2</sub>Se as a thermoelectric material on a large scale is the time-consuming physical methods to obtain them, and the need for high vacuum synthesis conditions as well as high-cost. On the contrary, the electrodeposition route offers a fast, low-cost, reliable, eco-friendly, and reproducible synthesis methodology to obtain β-Ag<sub>2</sub>Se thin films, avoiding the use of high vacuum, which is especially important for scaling up to industrial processing levels. In this study, a facile and rapid strategy is reported to obtain β-Ag<sub>2</sub>Se thin films with controlled thickness using an electrodeposition technique. As-electrodeposited β-Ag<sub>2</sub>Se film with a thickness of 740 nm delivered a <i>PF</i> = 5.59 µW cm<sup>−1</sup> K<sup>2</sup>, while an 880 nm β-Ag<sub>2</sub>Se film annealed at 210 °C exhibits a higher <i>PF</i> = 11.69 µW cm<sup>−1</sup> K<sup>2</sup>. The results demonstrate a rapid preparation of high purity β-Ag<sub>2</sub>Se thin film with superior thermoelectric performance, provides potential opportunities in the development of efficient thermoelectric devices.</p>\",\"PeriodicalId\":228,\"journal\":{\"name\":\"Small\",\"volume\":\"21 6\",\"pages\":\"\"},\"PeriodicalIF\":12.1000,\"publicationDate\":\"2025-01-02\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Small\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://onlinelibrary.wiley.com/doi/10.1002/smll.202408477\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Small","FirstCategoryId":"88","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/smll.202408477","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

金属硫族化合物在热电应用方面得到了广泛的研究。在其他金属硫族化合物中,硒化银(Ag2Se)被认为是热电应用中最有前途的n型半导体材料之一,因为它具有低带隙值、塞贝克系数和室温下优越的功率因数(PF)。然而,大规模使用Ag2Se作为热电材料的主要缺点之一是耗时的物理方法来获得它们,并且需要高真空合成条件以及高成本。相反,电沉积途径提供了一种快速、低成本、可靠、环保和可重复的合成方法来获得β-Ag2Se薄膜,避免了使用高真空,这对于扩大到工业加工水平尤为重要。在这项研究中,报告了一种简单快速的策略,使用电沉积技术获得具有控制厚度的β-Ag2Se薄膜。电沉积厚度为740 nm的β-Ag2Se薄膜的PF = 5.59µW cm−1 K2,而在210°C下退火的880 nm β-Ag2Se薄膜的PF = 11.69µW cm−1 K2。结果表明,快速制备高纯度β-Ag2Se薄膜具有优异的热电性能,为开发高效热电器件提供了潜在的机会。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

A Rapid Methodology to Obtain Silver Selenide thin Films with Highly Enhanced Thermoelectric Performance

A Rapid Methodology to Obtain Silver Selenide thin Films with Highly Enhanced Thermoelectric Performance

A Rapid Methodology to Obtain Silver Selenide thin Films with Highly Enhanced Thermoelectric Performance

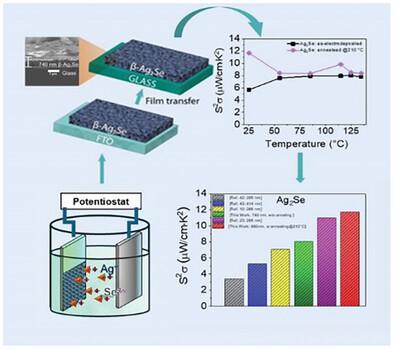

Metal chalcogenides have been extensively studied for thermoelectric applications. Among other metal chalcogenides, silver selenide (Ag2Se) is considered one of the most promising n-type semiconducting materials for thermoelectric applications due to its low band gap value, Seebeck coefficient, and superior power factor (PF) rendered at room temperature. However, one of the main drawbacks of using Ag2Se as a thermoelectric material on a large scale is the time-consuming physical methods to obtain them, and the need for high vacuum synthesis conditions as well as high-cost. On the contrary, the electrodeposition route offers a fast, low-cost, reliable, eco-friendly, and reproducible synthesis methodology to obtain β-Ag2Se thin films, avoiding the use of high vacuum, which is especially important for scaling up to industrial processing levels. In this study, a facile and rapid strategy is reported to obtain β-Ag2Se thin films with controlled thickness using an electrodeposition technique. As-electrodeposited β-Ag2Se film with a thickness of 740 nm delivered a PF = 5.59 µW cm−1 K2, while an 880 nm β-Ag2Se film annealed at 210 °C exhibits a higher PF = 11.69 µW cm−1 K2. The results demonstrate a rapid preparation of high purity β-Ag2Se thin film with superior thermoelectric performance, provides potential opportunities in the development of efficient thermoelectric devices.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Small
Small 工程技术-材料科学:综合
CiteScore
17.70
自引率
3.80%
发文量
1830
审稿时长
2.1 months
期刊介绍: Small serves as an exceptional platform for both experimental and theoretical studies in fundamental and applied interdisciplinary research at the nano- and microscale. The journal offers a compelling mix of peer-reviewed Research Articles, Reviews, Perspectives, and Comments. With a remarkable 2022 Journal Impact Factor of 13.3 (Journal Citation Reports from Clarivate Analytics, 2023), Small remains among the top multidisciplinary journals, covering a wide range of topics at the interface of materials science, chemistry, physics, engineering, medicine, and biology. Small's readership includes biochemists, biologists, biomedical scientists, chemists, engineers, information technologists, materials scientists, physicists, and theoreticians alike.
×
