可拉伸原色-蓝色转换层:有机基质中相工程钙钛矿纳米晶体的原位结晶

IF 16 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
ACS Nano Pub Date : 2024-12-29 DOI:10.1021/acsnano.4c08640
Jun-Su Yeo, Eun-Ha Cho, Joo Yoon Woo, Yong Min Park, Joo Hyeong Han, Daehwan Kim, Won Bin Im, Tae-Hee Han
{"title":"可拉伸原色-蓝色转换层:有机基质中相工程钙钛矿纳米晶体的原位结晶","authors":"Jun-Su Yeo, Eun-Ha Cho, Joo Yoon Woo, Yong Min Park, Joo Hyeong Han, Daehwan Kim, Won Bin Im, Tae-Hee Han","doi":"10.1021/acsnano.4c08640","DOIUrl":null,"url":null,"abstract":"Although the use of ultraviolet (UV) light-emitting diode backlight with red, green, and blue color-conversion layers (CCLs) in displays simplifies the manufacturing process and improves display uniformity, research on blue CCLs remains limited and has been mostly reported in the sky-blue region (&gt; 470 nm), which is insufficient to satisfy the Rec. 2020 color standard. As halide perovskites offer a high extinction coefficient, color purity, and photoluminescence quantum yield (PLQY), they become highly competitive color-converting materials for CCLs. This work presents a simple method for the <i>in situ</i> fabrication of perovskite nanocrystal (NC) films for primary-blue CCL and additionally proposes a set of scientific guidance rules regarding significant factors that affect the nucleation and <i>in situ</i> crystallization kinetics of perovskite NCs. The fabricated films are highly stretchable, emit bright primary-blue light (∼460 nm), and have PL that is tolerant to UV irradiation. By introducing fluorinated arylammonium salts, the quantum and dielectric confinement effects are desirably adjusted, which induces efficient energy transfer processes for primary-blue emission. This strategy yields phase-engineered perovskite NCs embedded in an organic matrix, which enables spectrally stable and robust PL under high tensile strain (&gt; 250%) and after prolonged UV irradiation (&gt; 40 d). Consequently, this work demonstrates that the <i>in situ</i> fabricated stretchable blue CCLs achieve 100% agreement with Rec. 2020.","PeriodicalId":21,"journal":{"name":"ACS Nano","volume":"33 1","pages":""},"PeriodicalIF":16.0000,"publicationDate":"2024-12-29","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Stretchable Primary-Blue Color-Conversion Layer: In Situ Crystallization of Phase-Engineered Perovskite Nanocrystals in an Organic Matrix\",\"authors\":\"Jun-Su Yeo, Eun-Ha Cho, Joo Yoon Woo, Yong Min Park, Joo Hyeong Han, Daehwan Kim, Won Bin Im, Tae-Hee Han\",\"doi\":\"10.1021/acsnano.4c08640\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Although the use of ultraviolet (UV) light-emitting diode backlight with red, green, and blue color-conversion layers (CCLs) in displays simplifies the manufacturing process and improves display uniformity, research on blue CCLs remains limited and has been mostly reported in the sky-blue region (&gt; 470 nm), which is insufficient to satisfy the Rec. 2020 color standard. As halide perovskites offer a high extinction coefficient, color purity, and photoluminescence quantum yield (PLQY), they become highly competitive color-converting materials for CCLs. This work presents a simple method for the <i>in situ</i> fabrication of perovskite nanocrystal (NC) films for primary-blue CCL and additionally proposes a set of scientific guidance rules regarding significant factors that affect the nucleation and <i>in situ</i> crystallization kinetics of perovskite NCs. The fabricated films are highly stretchable, emit bright primary-blue light (∼460 nm), and have PL that is tolerant to UV irradiation. By introducing fluorinated arylammonium salts, the quantum and dielectric confinement effects are desirably adjusted, which induces efficient energy transfer processes for primary-blue emission. This strategy yields phase-engineered perovskite NCs embedded in an organic matrix, which enables spectrally stable and robust PL under high tensile strain (&gt; 250%) and after prolonged UV irradiation (&gt; 40 d). Consequently, this work demonstrates that the <i>in situ</i> fabricated stretchable blue CCLs achieve 100% agreement with Rec. 2020.\",\"PeriodicalId\":21,\"journal\":{\"name\":\"ACS Nano\",\"volume\":\"33 1\",\"pages\":\"\"},\"PeriodicalIF\":16.0000,\"publicationDate\":\"2024-12-29\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Nano\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1021/acsnano.4c08640\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Nano","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acsnano.4c08640","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

虽然在显示器中使用具有红、绿、蓝三色转换层(ccl)的紫外(UV)发光二极管背光简化了制造过程并改善了显示均匀性,但对蓝色ccl的研究仍然有限,并且大多报道在天蓝区域(>;470 nm),这不足以满足Rec. 2020颜色标准。由于卤化物钙钛矿具有较高的消光系数、颜色纯度和光致发光量子产率(PLQY),因此成为ccl中极具竞争力的颜色转换材料。本文提出了一种原位制备钙钛矿纳米晶(NC)薄膜的简单方法,并对影响钙钛矿纳米晶成核和原位结晶动力学的重要因素提出了一套科学指导规则。制备的薄膜具有高度可拉伸性,发出明亮的原色蓝光(~ 460 nm),并且具有耐紫外线照射的PL。通过引入氟化芳基铵盐,可以很好地调节量子和介电约束效应,从而诱导出有效的原蓝发射能量转移过程。这种策略产生了嵌入在有机基质中的相工程钙钛矿NCs,从而在高拉伸应变(>;250%)和长时间紫外线照射后(>;因此,这项工作表明,原位制造的可拉伸蓝色ccl与Rec. 2020 100%一致。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Stretchable Primary-Blue Color-Conversion Layer: In Situ Crystallization of Phase-Engineered Perovskite Nanocrystals in an Organic Matrix

Stretchable Primary-Blue Color-Conversion Layer: In Situ Crystallization of Phase-Engineered Perovskite Nanocrystals in an Organic Matrix

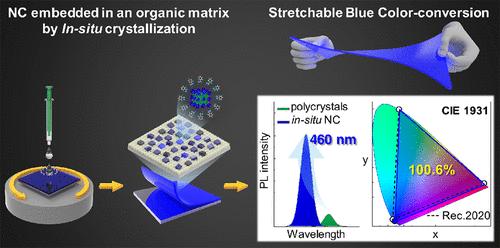

Although the use of ultraviolet (UV) light-emitting diode backlight with red, green, and blue color-conversion layers (CCLs) in displays simplifies the manufacturing process and improves display uniformity, research on blue CCLs remains limited and has been mostly reported in the sky-blue region (> 470 nm), which is insufficient to satisfy the Rec. 2020 color standard. As halide perovskites offer a high extinction coefficient, color purity, and photoluminescence quantum yield (PLQY), they become highly competitive color-converting materials for CCLs. This work presents a simple method for the in situ fabrication of perovskite nanocrystal (NC) films for primary-blue CCL and additionally proposes a set of scientific guidance rules regarding significant factors that affect the nucleation and in situ crystallization kinetics of perovskite NCs. The fabricated films are highly stretchable, emit bright primary-blue light (∼460 nm), and have PL that is tolerant to UV irradiation. By introducing fluorinated arylammonium salts, the quantum and dielectric confinement effects are desirably adjusted, which induces efficient energy transfer processes for primary-blue emission. This strategy yields phase-engineered perovskite NCs embedded in an organic matrix, which enables spectrally stable and robust PL under high tensile strain (> 250%) and after prolonged UV irradiation (> 40 d). Consequently, this work demonstrates that the in situ fabricated stretchable blue CCLs achieve 100% agreement with Rec. 2020.
