Qingying Li, Dan Luo, Qianyi Ma, Zhuoyi Zheng, Shibin Li, Yihan Xie, Linjiang Xue, Meizhu Lin, Yihang Nie, Guo Feng, Haozhen Dou, Jiawen Chen, Xin Wang and Zhongwei Chen
{"title":"用隐性溶剂设计高能量密度锌离子水电池的桥接溶剂化结构,具有88%的放电深度锌可再充电性","authors":"Qingying Li, Dan Luo, Qianyi Ma, Zhuoyi Zheng, Shibin Li, Yihan Xie, Linjiang Xue, Meizhu Lin, Yihang Nie, Guo Feng, Haozhen Dou, Jiawen Chen, Xin Wang and Zhongwei Chen","doi":"10.1039/D4EE04847D","DOIUrl":null,"url":null,"abstract":"<p >Electrochemical and thermodynamic instability of zinc metal caused by corrosion hinder the further development of aqueous zinc ion batteries (AZIBs). Herein, we introduced a high electron acceptor Lewis acid as a recessive solvent and polar anions as intermediaries to form capsule-like solvation nanoclusters. In the presence of polar anions, the recessive solvent, which cannot dissolve zinc salts independently, was activated, resulting in the formation of a “recessive solvent-anion-H<small><sub>2</sub></small>O” bridging structure. This structure further self-assembled into a nested configuration and encapsulated Zn(H<small><sub>2</sub></small>O)<small><sub>6</sub></small> inside the nanocapsule, thereby effectively suppressing interfacial side reactions. Owing to its solvation structure features, rapid reaction kinetics and homogeneous Zn deposition was achieved. The modified electrolyte enabled symmetric cells to achieve a prolonged cycle lifespan of 3500 h under an ultra-high current density of 50 mA cm<small><sup>−2</sup></small> and over 1600 h even at a high DOD of 88.09%, surpassing those reported in previous studies. In addition, Zn//VOH batteries demonstrated decent cycling stability for over 1400 cycles with a low N/P ratio of 1.54, and a high energy density of 57.14 W h kg<small><sup>−1</sup></small> was achieved in an Ah-level pouch cell, further highlighting their feasibility in practical application.</p>","PeriodicalId":72,"journal":{"name":"Energy & Environmental Science","volume":" 3","pages":" 1489-1501"},"PeriodicalIF":30.8000,"publicationDate":"2024-12-30","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Designing a bridging solvation structure using recessive solvents for high energy density aqueous zinc-ion batteries with 88% depth of discharge zinc rechargeability†\",\"authors\":\"Qingying Li, Dan Luo, Qianyi Ma, Zhuoyi Zheng, Shibin Li, Yihan Xie, Linjiang Xue, Meizhu Lin, Yihang Nie, Guo Feng, Haozhen Dou, Jiawen Chen, Xin Wang and Zhongwei Chen\",\"doi\":\"10.1039/D4EE04847D\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Electrochemical and thermodynamic instability of zinc metal caused by corrosion hinder the further development of aqueous zinc ion batteries (AZIBs). Herein, we introduced a high electron acceptor Lewis acid as a recessive solvent and polar anions as intermediaries to form capsule-like solvation nanoclusters. In the presence of polar anions, the recessive solvent, which cannot dissolve zinc salts independently, was activated, resulting in the formation of a “recessive solvent-anion-H<small><sub>2</sub></small>O” bridging structure. This structure further self-assembled into a nested configuration and encapsulated Zn(H<small><sub>2</sub></small>O)<small><sub>6</sub></small> inside the nanocapsule, thereby effectively suppressing interfacial side reactions. Owing to its solvation structure features, rapid reaction kinetics and homogeneous Zn deposition was achieved. The modified electrolyte enabled symmetric cells to achieve a prolonged cycle lifespan of 3500 h under an ultra-high current density of 50 mA cm<small><sup>−2</sup></small> and over 1600 h even at a high DOD of 88.09%, surpassing those reported in previous studies. In addition, Zn//VOH batteries demonstrated decent cycling stability for over 1400 cycles with a low N/P ratio of 1.54, and a high energy density of 57.14 W h kg<small><sup>−1</sup></small> was achieved in an Ah-level pouch cell, further highlighting their feasibility in practical application.</p>\",\"PeriodicalId\":72,\"journal\":{\"name\":\"Energy & Environmental Science\",\"volume\":\" 3\",\"pages\":\" 1489-1501\"},\"PeriodicalIF\":30.8000,\"publicationDate\":\"2024-12-30\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Energy & Environmental Science\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/ee/d4ee04847d\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Environmental Science","FirstCategoryId":"88","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/ee/d4ee04847d","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
摘要
以腐蚀反应为代表的金属锌的电化学和热力学不稳定性阻碍了锌离子电池的进一步发展。在此,我们引入了高电子受体路易斯酸作为隐性溶剂,极性阴离子作为中间体,形成了胶囊状的溶剂化纳米团簇。在极性阴离子存在下,不能独立溶解锌盐的隐性溶剂被激活,形成“隐性溶剂-阴离子-水”桥接结构。该结构进一步自组装成嵌套构型,并将Zn(H₂O)₆封装在纳米胶囊内,有效抑制了界面副反应。由于其溶剂化结构特点,可以实现快速的反应动力学和均匀的锌沉积。改进的电解质使对称电池在50 mA cm⁻²的超高电流密度下可以延长3500小时的循环寿命,即使在高达88.09%的DOD下也可以延长1600小时的循环寿命,超过了大多数报道的研究。此外,锌/VOH电池在1400次循环中表现出良好的循环稳定性,N/P比低至1.54,而在Ah级袋状电池中可以实现57.14 Wh/kg的高能量密度,进一步突出了其实用能力。
Designing a bridging solvation structure using recessive solvents for high energy density aqueous zinc-ion batteries with 88% depth of discharge zinc rechargeability†

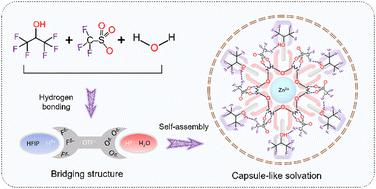

Electrochemical and thermodynamic instability of zinc metal caused by corrosion hinder the further development of aqueous zinc ion batteries (AZIBs). Herein, we introduced a high electron acceptor Lewis acid as a recessive solvent and polar anions as intermediaries to form capsule-like solvation nanoclusters. In the presence of polar anions, the recessive solvent, which cannot dissolve zinc salts independently, was activated, resulting in the formation of a “recessive solvent-anion-H2O” bridging structure. This structure further self-assembled into a nested configuration and encapsulated Zn(H2O)6 inside the nanocapsule, thereby effectively suppressing interfacial side reactions. Owing to its solvation structure features, rapid reaction kinetics and homogeneous Zn deposition was achieved. The modified electrolyte enabled symmetric cells to achieve a prolonged cycle lifespan of 3500 h under an ultra-high current density of 50 mA cm−2 and over 1600 h even at a high DOD of 88.09%, surpassing those reported in previous studies. In addition, Zn//VOH batteries demonstrated decent cycling stability for over 1400 cycles with a low N/P ratio of 1.54, and a high energy density of 57.14 W h kg−1 was achieved in an Ah-level pouch cell, further highlighting their feasibility in practical application.
