白光二极管用克级一锅合成高亮度全彩色掺铝InP量子点

IF 8.2 2区 材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY
Kai-Zheng Song, Jin-Zhao Huang, Meng-Xin Li, Feng-Lei Jiang
{"title":"白光二极管用克级一锅合成高亮度全彩色掺铝InP量子点","authors":"Kai-Zheng Song, Jin-Zhao Huang, Meng-Xin Li, Feng-Lei Jiang","doi":"10.1021/acsami.4c16513","DOIUrl":null,"url":null,"abstract":"High-performance, environmentally friendly indium phosphide (InP)-based quantum dots (QDs) are urgently needed to meet the demands of rapidly evolving display and lighting technologies. By adopting the highly efficient and cost-effective one-pot method and utilizing aluminum isopropoxide (AIP) as the Al source, a series of Al-doped InP/(Al)ZnS QDs with emission maxima ranging from 480 to 627 nm were synthesized. The photoluminescence quantum yield (PLQY) of the blue, green, yellow, orange, and red QDs, with emission peaks at 480, 509, 560, 600, and 627 nm, reached 34%, 62%, 86%, 96%, and 85%, respectively. Remarkably, the required reaction times for synthesizing the above QDs were all within 4 h, showcasing the high efficiency of this one-pot method. Moreover, the influence of Al-doping on red InP/ZnS QDs was thoroughly explored. Compared with undoped QDs, the increased PLQY, narrowed full-width at half-maximum (fwhm), and enhanced photostability were observed in Al-doped QDs. Characterization results revealed the relatively thicker shell in Al-doped QDs and demonstrated the presence of Al in the shell in the form of AlPO<sub><i>x</i></sub>. The increased shell thickness and narrowed fwhm indicated a reduced lattice strain at the core–shell interface in Al-doped QDs, which might result from the introduced trivalent Al<sup>3+</sup>, as it alleviated the charge mismatch at the core/shell interface. Approximately 3 g of QDs powders can be obtained through a single gram-scale one-pot preparation. The on-chip white light-emitting diode (LED), using the red and green Al-doped QDs as phosphors, exhibited a maximum power efficiency of 17.8 lm W<sup>–1</sup> and stable CIE coordinates around (0.32, 0.35), and achieved a wide color gamut (97.4% of the NTSC color space), demonstrating the promising potential in lighting technologies.","PeriodicalId":5,"journal":{"name":"ACS Applied Materials & Interfaces","volume":"81 1","pages":""},"PeriodicalIF":8.2000,"publicationDate":"2024-12-26","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Full Color Al-Doped InP Quantum Dots with High Brightness via Gram-Scale One-Pot Synthesis for White Light-Emitting Diodes\",\"authors\":\"Kai-Zheng Song, Jin-Zhao Huang, Meng-Xin Li, Feng-Lei Jiang\",\"doi\":\"10.1021/acsami.4c16513\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"High-performance, environmentally friendly indium phosphide (InP)-based quantum dots (QDs) are urgently needed to meet the demands of rapidly evolving display and lighting technologies. By adopting the highly efficient and cost-effective one-pot method and utilizing aluminum isopropoxide (AIP) as the Al source, a series of Al-doped InP/(Al)ZnS QDs with emission maxima ranging from 480 to 627 nm were synthesized. The photoluminescence quantum yield (PLQY) of the blue, green, yellow, orange, and red QDs, with emission peaks at 480, 509, 560, 600, and 627 nm, reached 34%, 62%, 86%, 96%, and 85%, respectively. Remarkably, the required reaction times for synthesizing the above QDs were all within 4 h, showcasing the high efficiency of this one-pot method. Moreover, the influence of Al-doping on red InP/ZnS QDs was thoroughly explored. Compared with undoped QDs, the increased PLQY, narrowed full-width at half-maximum (fwhm), and enhanced photostability were observed in Al-doped QDs. Characterization results revealed the relatively thicker shell in Al-doped QDs and demonstrated the presence of Al in the shell in the form of AlPO<sub><i>x</i></sub>. The increased shell thickness and narrowed fwhm indicated a reduced lattice strain at the core–shell interface in Al-doped QDs, which might result from the introduced trivalent Al<sup>3+</sup>, as it alleviated the charge mismatch at the core/shell interface. Approximately 3 g of QDs powders can be obtained through a single gram-scale one-pot preparation. The on-chip white light-emitting diode (LED), using the red and green Al-doped QDs as phosphors, exhibited a maximum power efficiency of 17.8 lm W<sup>–1</sup> and stable CIE coordinates around (0.32, 0.35), and achieved a wide color gamut (97.4% of the NTSC color space), demonstrating the promising potential in lighting technologies.\",\"PeriodicalId\":5,\"journal\":{\"name\":\"ACS Applied Materials & Interfaces\",\"volume\":\"81 1\",\"pages\":\"\"},\"PeriodicalIF\":8.2000,\"publicationDate\":\"2024-12-26\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Materials & Interfaces\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1021/acsami.4c16513\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Materials & Interfaces","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acsami.4c16513","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

为了满足快速发展的显示和照明技术的需求,迫切需要高性能,环保的磷化铟(InP)基量子点(QDs)。采用高效、经济的一锅法,以异丙醇铝(AIP)为Al源,合成了一系列最大发射波长为480 ~ 627 nm的掺杂Al的InP/(Al)ZnS量子点。发光峰为480、509、560、600和627 nm的蓝色、绿色、黄色、橙色和红色量子点的光致发光量子产率(PLQY)分别达到34%、62%、86%、96%和85%。值得注意的是,合成上述量子点所需的反应时间均在4 h以内,表明了该一锅法的高效率。此外,还深入探讨了al掺杂对红色InP/ZnS量子点的影响。与未掺杂的量子点相比,掺铝量子点的PLQY增加,半最大全宽度(fwhm)变窄,光稳定性增强。表征结果表明,Al掺杂量子点的壳层相对较厚,并且Al以AlPOx的形式存在于壳层中。al掺杂量子点的壳层厚度增加和fwhm变窄表明,在核壳界面处的晶格应变减小,这可能是由于引入了三价Al3+,减轻了核壳界面处的电荷不匹配。通过单克规模的一锅制备,可以获得大约3g的量子点粉末。采用掺红和掺绿al量子点作为荧光粉的片上白光二极管(LED)的最大功率效率为17.8 lm W-1, CIE坐标稳定在(0.32,0.35)附近,具有较宽的色域(占NTSC色空间的97.4%),在照明技术中具有广阔的应用前景。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Full Color Al-Doped InP Quantum Dots with High Brightness via Gram-Scale One-Pot Synthesis for White Light-Emitting Diodes

Full Color Al-Doped InP Quantum Dots with High Brightness via Gram-Scale One-Pot Synthesis for White Light-Emitting Diodes

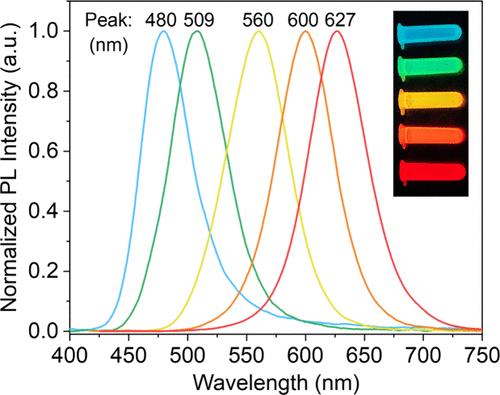

High-performance, environmentally friendly indium phosphide (InP)-based quantum dots (QDs) are urgently needed to meet the demands of rapidly evolving display and lighting technologies. By adopting the highly efficient and cost-effective one-pot method and utilizing aluminum isopropoxide (AIP) as the Al source, a series of Al-doped InP/(Al)ZnS QDs with emission maxima ranging from 480 to 627 nm were synthesized. The photoluminescence quantum yield (PLQY) of the blue, green, yellow, orange, and red QDs, with emission peaks at 480, 509, 560, 600, and 627 nm, reached 34%, 62%, 86%, 96%, and 85%, respectively. Remarkably, the required reaction times for synthesizing the above QDs were all within 4 h, showcasing the high efficiency of this one-pot method. Moreover, the influence of Al-doping on red InP/ZnS QDs was thoroughly explored. Compared with undoped QDs, the increased PLQY, narrowed full-width at half-maximum (fwhm), and enhanced photostability were observed in Al-doped QDs. Characterization results revealed the relatively thicker shell in Al-doped QDs and demonstrated the presence of Al in the shell in the form of AlPOx. The increased shell thickness and narrowed fwhm indicated a reduced lattice strain at the core–shell interface in Al-doped QDs, which might result from the introduced trivalent Al3+, as it alleviated the charge mismatch at the core/shell interface. Approximately 3 g of QDs powders can be obtained through a single gram-scale one-pot preparation. The on-chip white light-emitting diode (LED), using the red and green Al-doped QDs as phosphors, exhibited a maximum power efficiency of 17.8 lm W–1 and stable CIE coordinates around (0.32, 0.35), and achieved a wide color gamut (97.4% of the NTSC color space), demonstrating the promising potential in lighting technologies.
