基于点击反应设计超低氮磷比长循环寿命锌离子电池共聚SEI层

IF 26 1区 材料科学 Q1 CHEMISTRY, PHYSICAL
Baohua Liu, Xue Ma, Qinghong Wang, Shilin Zhang, Jodie Yuwono, Huanyu Jin, Juan Qiu, Houyi Ma, Chao Wang, Chao Lai
{"title":"基于点击反应设计超低氮磷比长循环寿命锌离子电池共聚SEI层","authors":"Baohua Liu,&nbsp;Xue Ma,&nbsp;Qinghong Wang,&nbsp;Shilin Zhang,&nbsp;Jodie Yuwono,&nbsp;Huanyu Jin,&nbsp;Juan Qiu,&nbsp;Houyi Ma,&nbsp;Chao Wang,&nbsp;Chao Lai","doi":"10.1002/aenm.202404660","DOIUrl":null,"url":null,"abstract":"<p>Balancing interfacial interactions is critical to the reversibility and cycle stability of Zn ion batteries, as severe chemical corrosion and undesirable hydrogen evolution reaction (HER) are inevitable for Zn anode in aqueous electrolytes during the charge/discharge process. Herein, a multi-functional copolymeric solid/electrolyte interface (SEI) layer, self-assembling on Zn anode based on the click reaction between epoxy silane and thioalcohol, is employed to eliminate these side reactions. The dense and robust SEI layer can not only physically repel water from the surface of the Zn anode to effectively inhibit the chemical corrosion and HER but also facilitate the desolvation of Zn<sup>2+</sup> to accelerate the kinetic process. Additionally, it also can regulate the interfacial ion flux and induce the preferred Zn plating with (002) crystallographic orientation, enabling dendrite-free Zn deposition. As a result, a stable Zn anode with a long cycle life of ≈200 h at a depth of discharge (DoD) of 60% is achieved. The Zn||V<sub>2</sub>O<sub>5</sub> full cell delivers a high specific capacity of 165.2 mAh g<sup>−1</sup> after 600 cycles at an ultralow N/P ratio (the capacity of the negative electrode to the capacity of the positive electrode) of 2.5. The construction of this robust copolymeric SEI layer provides a new pathway for the development of practical Zn ion batteries.</p>","PeriodicalId":111,"journal":{"name":"Advanced Energy Materials","volume":"15 16","pages":""},"PeriodicalIF":26.0000,"publicationDate":"2024-12-20","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Designing Copolymeric SEI Layer Based on Click Reaction toward Ultralow N/P Ratio and Long Cycle Life Zinc Ion Batteries\",\"authors\":\"Baohua Liu,&nbsp;Xue Ma,&nbsp;Qinghong Wang,&nbsp;Shilin Zhang,&nbsp;Jodie Yuwono,&nbsp;Huanyu Jin,&nbsp;Juan Qiu,&nbsp;Houyi Ma,&nbsp;Chao Wang,&nbsp;Chao Lai\",\"doi\":\"10.1002/aenm.202404660\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Balancing interfacial interactions is critical to the reversibility and cycle stability of Zn ion batteries, as severe chemical corrosion and undesirable hydrogen evolution reaction (HER) are inevitable for Zn anode in aqueous electrolytes during the charge/discharge process. Herein, a multi-functional copolymeric solid/electrolyte interface (SEI) layer, self-assembling on Zn anode based on the click reaction between epoxy silane and thioalcohol, is employed to eliminate these side reactions. The dense and robust SEI layer can not only physically repel water from the surface of the Zn anode to effectively inhibit the chemical corrosion and HER but also facilitate the desolvation of Zn<sup>2+</sup> to accelerate the kinetic process. Additionally, it also can regulate the interfacial ion flux and induce the preferred Zn plating with (002) crystallographic orientation, enabling dendrite-free Zn deposition. As a result, a stable Zn anode with a long cycle life of ≈200 h at a depth of discharge (DoD) of 60% is achieved. The Zn||V<sub>2</sub>O<sub>5</sub> full cell delivers a high specific capacity of 165.2 mAh g<sup>−1</sup> after 600 cycles at an ultralow N/P ratio (the capacity of the negative electrode to the capacity of the positive electrode) of 2.5. The construction of this robust copolymeric SEI layer provides a new pathway for the development of practical Zn ion batteries.</p>\",\"PeriodicalId\":111,\"journal\":{\"name\":\"Advanced Energy Materials\",\"volume\":\"15 16\",\"pages\":\"\"},\"PeriodicalIF\":26.0000,\"publicationDate\":\"2024-12-20\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Advanced Energy Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://advanced.onlinelibrary.wiley.com/doi/10.1002/aenm.202404660\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://advanced.onlinelibrary.wiley.com/doi/10.1002/aenm.202404660","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

摘要

由于锌阳极在充/放电过程中不可避免地会发生严重的化学腐蚀和不良的析氢反应(HER),平衡界面相互作用对锌离子电池的可逆性和循环稳定性至关重要。本文采用基于环氧硅烷与巯基醇的咔嗒反应在Zn阳极上自组装的多功能共聚固体/电解质界面(SEI)层来消除这些副反应。致密坚固的SEI层不仅可以物理排斥Zn阳极表面的水分,有效地抑制化学腐蚀和HER,还可以促进Zn2+的脱溶,加速动力学过程。此外,它还可以调节界面离子通量,诱导以(002)晶体取向优先镀锌,实现无枝晶Zn沉积。结果表明,在放电深度(DoD)为60%的情况下,锌阳极的稳定循环寿命约为200 h。在超低N/P比(负极容量与正极容量)为2.5的情况下,经过600次循环后,Zn||V2O5全电池的比容量高达165.2 mAh g - 1。这种坚固的共聚SEI层的构建为实用锌离子电池的发展提供了新的途径。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Designing Copolymeric SEI Layer Based on Click Reaction toward Ultralow N/P Ratio and Long Cycle Life Zinc Ion Batteries

Designing Copolymeric SEI Layer Based on Click Reaction toward Ultralow N/P Ratio and Long Cycle Life Zinc Ion Batteries

Designing Copolymeric SEI Layer Based on Click Reaction toward Ultralow N/P Ratio and Long Cycle Life Zinc Ion Batteries

Designing Copolymeric SEI Layer Based on Click Reaction toward Ultralow N/P Ratio and Long Cycle Life Zinc Ion Batteries

Designing Copolymeric SEI Layer Based on Click Reaction toward Ultralow N/P Ratio and Long Cycle Life Zinc Ion Batteries

Designing Copolymeric SEI Layer Based on Click Reaction toward Ultralow N/P Ratio and Long Cycle Life Zinc Ion Batteries

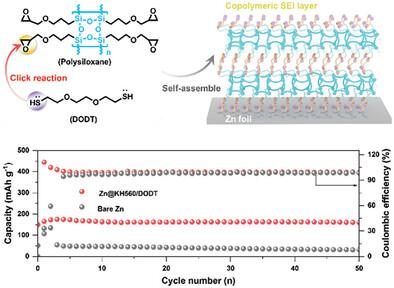

Balancing interfacial interactions is critical to the reversibility and cycle stability of Zn ion batteries, as severe chemical corrosion and undesirable hydrogen evolution reaction (HER) are inevitable for Zn anode in aqueous electrolytes during the charge/discharge process. Herein, a multi-functional copolymeric solid/electrolyte interface (SEI) layer, self-assembling on Zn anode based on the click reaction between epoxy silane and thioalcohol, is employed to eliminate these side reactions. The dense and robust SEI layer can not only physically repel water from the surface of the Zn anode to effectively inhibit the chemical corrosion and HER but also facilitate the desolvation of Zn2+ to accelerate the kinetic process. Additionally, it also can regulate the interfacial ion flux and induce the preferred Zn plating with (002) crystallographic orientation, enabling dendrite-free Zn deposition. As a result, a stable Zn anode with a long cycle life of ≈200 h at a depth of discharge (DoD) of 60% is achieved. The Zn||V2O5 full cell delivers a high specific capacity of 165.2 mAh g−1 after 600 cycles at an ultralow N/P ratio (the capacity of the negative electrode to the capacity of the positive electrode) of 2.5. The construction of this robust copolymeric SEI layer provides a new pathway for the development of practical Zn ion batteries.
