Detrimental Defect Cooperativity at TiO2/CH3NH3PbI3 Interface: Decreased Stability, Enhanced Ion Diffusion, and Reduced Charge Lifetime and Transport

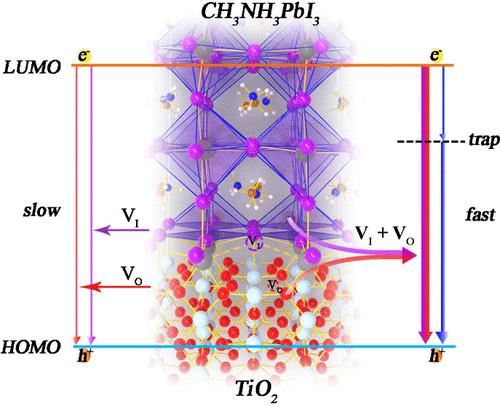

Interfaces are essential for solar cell performance since they govern charge separation and transport. Using quantum dynamics simulation, we demonstrate that at interfaces, common defects that are benign on their own, iodine vacancy in CH₃NH₃PbI₃ (V_I) and oxygen vacancy in TiO₂ (V_O), are responsible synergistically for poor stability and charge losses. V_O promotes V_I diffusion and accelerates iodine migration. A midgap trap state appears, inhibiting charge transport and accelerating charge recombination by an order of magnitude. Strong structural distortions strengthen electron-vibrational interactions and activate high-frequency TiO₂ phonons. Because of the widely reported high defect-tolerance of lead-halide perovskites, the synergistic detrimental influence of perovskite defects with defects in other materials is often overlooked. The interfacial defect pairing could be a major reason for poor stability and charge losses in perovskite solar cells. The results suggest that either a high-quality perovskite or high-quality charge extraction layer may be sufficient to achieve high performance.
