光强对CBD沉积CdSe薄膜电极的影响

IF 2.8 4区 工程技术 Q2 ENGINEERING, ELECTRICAL & ELECTRONIC
Ahed H. Zyoud, Samer H. Zyoud, Shaher H. Zyoud
{"title":"光强对CBD沉积CdSe薄膜电极的影响","authors":"Ahed H. Zyoud,&nbsp;Samer H. Zyoud,&nbsp;Shaher H. Zyoud","doi":"10.1007/s10854-024-14030-0","DOIUrl":null,"url":null,"abstract":"<div><p>This paper reports the effect of light intensity on the performance of PEC solar cells using CdSe thin films deposited via a combined electrodeposition (ED) and chemical bath deposition (CBD) technique. The ED method produced a thinner primary layer with excellent adhesion to FTO but insufficient photon absorption, whereas the subsequent CBD layer increased in thickness, enabling better photon absorption and greater photocurrent generation. The optical and structural properties of the films under consideration were calculated from the results of UV‒Vis spectroscopy, XRD, and SEM. J–V characterization at light intensities of 0.0025, 0.005, 0.010, and 0.020 W/cm<sup>2</sup> indicated that increasing the light intensity increased the photocurrent and decreased the quantum yield efficiency. The dependence of the photocurrent on light intensity reflects a logarithmic increase whereby higher intensities generate many electron‒hole pairs, hence increasing the photocurrent. However, the quantum yield efficiency decreases logarithmically as the light intensity increases due to recombination losses. This inverse logarithmic relationship shows that the light conditions are optimized so that a balanced photocurrent and efficiency can be obtained to maximize the performance of solar cells. The parameters that could influence the optimization of PEC solar cells include the size of the particles and the deposition technique. Obviously, the conjoined CBD/ED method could produce smaller particles with higher efficiency. These results are part of the development of technologies for efficient and stable solar energy conversion.</p></div>","PeriodicalId":646,"journal":{"name":"Journal of Materials Science: Materials in Electronics","volume":"35 36","pages":""},"PeriodicalIF":2.8000,"publicationDate":"2024-12-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Impact of light intensity on CdSe thin-film electrodes deposited by CBD over a prepared ED CdSe primary layer\",\"authors\":\"Ahed H. Zyoud,&nbsp;Samer H. Zyoud,&nbsp;Shaher H. Zyoud\",\"doi\":\"10.1007/s10854-024-14030-0\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<div><p>This paper reports the effect of light intensity on the performance of PEC solar cells using CdSe thin films deposited via a combined electrodeposition (ED) and chemical bath deposition (CBD) technique. The ED method produced a thinner primary layer with excellent adhesion to FTO but insufficient photon absorption, whereas the subsequent CBD layer increased in thickness, enabling better photon absorption and greater photocurrent generation. The optical and structural properties of the films under consideration were calculated from the results of UV‒Vis spectroscopy, XRD, and SEM. J–V characterization at light intensities of 0.0025, 0.005, 0.010, and 0.020 W/cm<sup>2</sup> indicated that increasing the light intensity increased the photocurrent and decreased the quantum yield efficiency. The dependence of the photocurrent on light intensity reflects a logarithmic increase whereby higher intensities generate many electron‒hole pairs, hence increasing the photocurrent. However, the quantum yield efficiency decreases logarithmically as the light intensity increases due to recombination losses. This inverse logarithmic relationship shows that the light conditions are optimized so that a balanced photocurrent and efficiency can be obtained to maximize the performance of solar cells. The parameters that could influence the optimization of PEC solar cells include the size of the particles and the deposition technique. Obviously, the conjoined CBD/ED method could produce smaller particles with higher efficiency. These results are part of the development of technologies for efficient and stable solar energy conversion.</p></div>\",\"PeriodicalId\":646,\"journal\":{\"name\":\"Journal of Materials Science: Materials in Electronics\",\"volume\":\"35 36\",\"pages\":\"\"},\"PeriodicalIF\":2.8000,\"publicationDate\":\"2024-12-11\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of Materials Science: Materials in Electronics\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://link.springer.com/article/10.1007/s10854-024-14030-0\",\"RegionNum\":4,\"RegionCategory\":\"工程技术\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"ENGINEERING, ELECTRICAL & ELECTRONIC\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Materials Science: Materials in Electronics","FirstCategoryId":"5","ListUrlMain":"https://link.springer.com/article/10.1007/s10854-024-14030-0","RegionNum":4,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENGINEERING, ELECTRICAL & ELECTRONIC","Score":null,"Total":0}
引用次数: 0

摘要

采用电沉积(ED)和化学浴沉积(CBD)相结合的方法制备了CdSe薄膜,研究了光强对光电耦合太阳能电池性能的影响。ED方法产生了更薄的初级层,与FTO具有良好的粘附性,但光子吸收不足,而随后的CBD层厚度增加,能够更好地吸收光子并产生更大的光电流。通过紫外可见光谱、x射线衍射(XRD)和扫描电子显微镜(SEM)对所研究薄膜的光学性能和结构性能进行了计算。在0.0025、0.005、0.010和0.020 W/cm2光强下的J-V表征表明,光强的增加增加了光电流,降低了量子产率效率。光电流对光强的依赖性反映了对数增长,即更高的强度产生许多电子-空穴对,从而增加光电流。然而,由于复合损失,随着光强的增加,量子产率效率呈对数递减。这种反对数关系表明,光照条件是优化的,因此可以获得平衡的光电流和效率,以最大限度地提高太阳能电池的性能。影响PEC太阳能电池优化的参数包括颗粒尺寸和沉积技术。显然,CBD/ED结合方法可以产生更小的颗粒,效率更高。这些结果是高效稳定的太阳能转换技术发展的一部分。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Impact of light intensity on CdSe thin-film electrodes deposited by CBD over a prepared ED CdSe primary layer

Impact of light intensity on CdSe thin-film electrodes deposited by CBD over a prepared ED CdSe primary layer

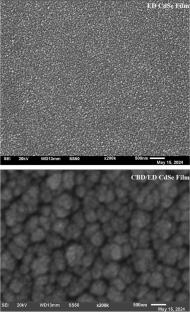

This paper reports the effect of light intensity on the performance of PEC solar cells using CdSe thin films deposited via a combined electrodeposition (ED) and chemical bath deposition (CBD) technique. The ED method produced a thinner primary layer with excellent adhesion to FTO but insufficient photon absorption, whereas the subsequent CBD layer increased in thickness, enabling better photon absorption and greater photocurrent generation. The optical and structural properties of the films under consideration were calculated from the results of UV‒Vis spectroscopy, XRD, and SEM. J–V characterization at light intensities of 0.0025, 0.005, 0.010, and 0.020 W/cm2 indicated that increasing the light intensity increased the photocurrent and decreased the quantum yield efficiency. The dependence of the photocurrent on light intensity reflects a logarithmic increase whereby higher intensities generate many electron‒hole pairs, hence increasing the photocurrent. However, the quantum yield efficiency decreases logarithmically as the light intensity increases due to recombination losses. This inverse logarithmic relationship shows that the light conditions are optimized so that a balanced photocurrent and efficiency can be obtained to maximize the performance of solar cells. The parameters that could influence the optimization of PEC solar cells include the size of the particles and the deposition technique. Obviously, the conjoined CBD/ED method could produce smaller particles with higher efficiency. These results are part of the development of technologies for efficient and stable solar energy conversion.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Journal of Materials Science: Materials in Electronics
Journal of Materials Science: Materials in Electronics 工程技术-材料科学:综合
CiteScore
5.00
自引率
7.10%
发文量
1931
审稿时长
2 months
期刊介绍: The Journal of Materials Science: Materials in Electronics is an established refereed companion to the Journal of Materials Science. It publishes papers on materials and their applications in modern electronics, covering the ground between fundamental science, such as semiconductor physics, and work concerned specifically with applications. It explores the growth and preparation of new materials, as well as their processing, fabrication, bonding and encapsulation, together with the reliability, failure analysis, quality assurance and characterization related to the whole range of applications in electronics. The Journal presents papers in newly developing fields such as low dimensional structures and devices, optoelectronics including III-V compounds, glasses and linear/non-linear crystal materials and lasers, high Tc superconductors, conducting polymers, thick film materials and new contact technologies, as well as the established electronics device and circuit materials.
×
