Xuerong Wang, Qianqian Zhao, Shulin Zhao, Aoshuang Pang, Luyao Yang, Yidan Sun, Yu Wang and Yuhui Chen
{"title":"通过al掺杂稳定Cu+,增强*CO覆盖,实现高效的电化学CO2还原为C2+产物","authors":"Xuerong Wang, Qianqian Zhao, Shulin Zhao, Aoshuang Pang, Luyao Yang, Yidan Sun, Yu Wang and Yuhui Chen","doi":"10.1039/D4TA07386J","DOIUrl":null,"url":null,"abstract":"<p >Copper-based oxide catalysts have garnered significant attention due to their remarkable capacity for selectively producing multicarbon (C<small><sub>2+</sub></small>) compounds in CO<small><sub>2</sub></small> reduction driven by renewable electricity. However, the Cu<small><sup>+</sup></small> species in catalysts remain trapped in the self-reduction to Cu<small><sup>0</sup></small> at the high applied reducing potentials. Herein, we report that Cu<small><sub>3</sub></small>Al layered double hydroxides (Cu<small><sub>3</sub></small>Al-LDHs) exhibit a remarkable electrochemical conversion of CO<small><sub>2</sub></small> to C<small><sub>2+</sub></small>, with a C<small><sub>2+</sub></small> partial current density of 252 mA cm<small><sup>−2</sup></small> and a corresponding faradaic efficiency (FE) of 84.5%. In sharp contrast, the Cu<small><sub>2</sub></small>(OH)<small><sub>2</sub></small>CO<small><sub>3</sub></small> without Al (Cu-LDHs) showed an FE<small><sub>C2+</sub></small> of only 37.5% under the same conditions. <em>In situ</em> XRD measurements demonstrated that Cu<small><sub>3</sub></small>Al-LDH underwent cathode reconstruction into Cu<small><sub>2</sub></small>O, while Cu-LDHs transformed into metallic Cu during the CO<small><sub>2</sub></small>RR process. <em>In situ</em> Raman spectroscopy indicated the introduction of Al facilitates the adsorption and dimerization of *CO. Density functional theory calculations revealed that the incorporation of Al effectively modulates the electronic structure of Cu and enhances the adsorption strength of *CO. Moreover, it exhibited a low energy barrier for the formation of *OCCO intermediates, thereby demonstrating remarkable selectivity towards C<small><sub>2+</sub></small> products.</p>","PeriodicalId":82,"journal":{"name":"Journal of Materials Chemistry A","volume":" 5","pages":" 3359-3367"},"PeriodicalIF":9.5000,"publicationDate":"2024-12-11","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Stabilizing Cu+ species by Al-doping with enhanced *CO coverage for highly efficient electrochemical CO2 reduction to C2+ products†\",\"authors\":\"Xuerong Wang, Qianqian Zhao, Shulin Zhao, Aoshuang Pang, Luyao Yang, Yidan Sun, Yu Wang and Yuhui Chen\",\"doi\":\"10.1039/D4TA07386J\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Copper-based oxide catalysts have garnered significant attention due to their remarkable capacity for selectively producing multicarbon (C<small><sub>2+</sub></small>) compounds in CO<small><sub>2</sub></small> reduction driven by renewable electricity. However, the Cu<small><sup>+</sup></small> species in catalysts remain trapped in the self-reduction to Cu<small><sup>0</sup></small> at the high applied reducing potentials. Herein, we report that Cu<small><sub>3</sub></small>Al layered double hydroxides (Cu<small><sub>3</sub></small>Al-LDHs) exhibit a remarkable electrochemical conversion of CO<small><sub>2</sub></small> to C<small><sub>2+</sub></small>, with a C<small><sub>2+</sub></small> partial current density of 252 mA cm<small><sup>−2</sup></small> and a corresponding faradaic efficiency (FE) of 84.5%. In sharp contrast, the Cu<small><sub>2</sub></small>(OH)<small><sub>2</sub></small>CO<small><sub>3</sub></small> without Al (Cu-LDHs) showed an FE<small><sub>C2+</sub></small> of only 37.5% under the same conditions. <em>In situ</em> XRD measurements demonstrated that Cu<small><sub>3</sub></small>Al-LDH underwent cathode reconstruction into Cu<small><sub>2</sub></small>O, while Cu-LDHs transformed into metallic Cu during the CO<small><sub>2</sub></small>RR process. <em>In situ</em> Raman spectroscopy indicated the introduction of Al facilitates the adsorption and dimerization of *CO. Density functional theory calculations revealed that the incorporation of Al effectively modulates the electronic structure of Cu and enhances the adsorption strength of *CO. Moreover, it exhibited a low energy barrier for the formation of *OCCO intermediates, thereby demonstrating remarkable selectivity towards C<small><sub>2+</sub></small> products.</p>\",\"PeriodicalId\":82,\"journal\":{\"name\":\"Journal of Materials Chemistry A\",\"volume\":\" 5\",\"pages\":\" 3359-3367\"},\"PeriodicalIF\":9.5000,\"publicationDate\":\"2024-12-11\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Journal of Materials Chemistry A\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/ta/d4ta07386j\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, PHYSICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Materials Chemistry A","FirstCategoryId":"88","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/ta/d4ta07386j","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0
摘要
铜基氧化物催化剂因其在可再生电力驱动的二氧化碳减排中选择性产生多碳(C2+)化合物的卓越能力而受到广泛关注。然而,在高应用还原电位下,催化剂中的Cu+仍被困在自还原成Cu0的过程中。本文中,我们报道了Cu3Al层状双氢氧化物(Cu3Al- ldhs)表现出co2到C2+的显著电化学转化,C2+的偏电流密度为252 mA cm-2,相应的法拉第效率(FE)为84.5%。与此形成鲜明对比的是,在相同条件下,不含Al的Cu2(OH)2CO3 (Cu-LDHs)的FEC2+仅为37.5%。原位XRD测试表明,Cu3Al-LDH在CO2RR过程中阴极重构为Cu2O,而Cu- ldh在CO2RR过程中转化为金属Cu。原位拉曼光谱表明,Al的引入有利于*CO的吸附和二聚化。密度泛函理论计算发现,Al的加入有效地调节了Cu的电子结构,提高了*CO的吸附强度。此外,它对*OCCO中间体的形成表现出较低的能垒,从而对C2+产物表现出显著的选择性。
Stabilizing Cu+ species by Al-doping with enhanced *CO coverage for highly efficient electrochemical CO2 reduction to C2+ products†

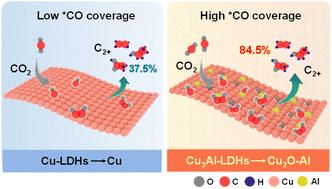

Copper-based oxide catalysts have garnered significant attention due to their remarkable capacity for selectively producing multicarbon (C2+) compounds in CO2 reduction driven by renewable electricity. However, the Cu+ species in catalysts remain trapped in the self-reduction to Cu0 at the high applied reducing potentials. Herein, we report that Cu3Al layered double hydroxides (Cu3Al-LDHs) exhibit a remarkable electrochemical conversion of CO2 to C2+, with a C2+ partial current density of 252 mA cm−2 and a corresponding faradaic efficiency (FE) of 84.5%. In sharp contrast, the Cu2(OH)2CO3 without Al (Cu-LDHs) showed an FEC2+ of only 37.5% under the same conditions. In situ XRD measurements demonstrated that Cu3Al-LDH underwent cathode reconstruction into Cu2O, while Cu-LDHs transformed into metallic Cu during the CO2RR process. In situ Raman spectroscopy indicated the introduction of Al facilitates the adsorption and dimerization of *CO. Density functional theory calculations revealed that the incorporation of Al effectively modulates the electronic structure of Cu and enhances the adsorption strength of *CO. Moreover, it exhibited a low energy barrier for the formation of *OCCO intermediates, thereby demonstrating remarkable selectivity towards C2+ products.
