基于Cu/钙钛矿肖特基结构建超高电流直流摩擦光伏纳米发电机

IF 16 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
ACS Nano Pub Date : 2024-12-10 DOI:10.1021/acsnano.4c11758
Yuguang Luo, Yang Ding, Yangyang Liu, Tengxiao Xiongsong, Ziyi Yang, Hao Zhang, Mang Gao, Hongjian Li, Guozhang Dai, Junliang Yang
{"title":"基于Cu/钙钛矿肖特基结构建超高电流直流摩擦光伏纳米发电机","authors":"Yuguang Luo, Yang Ding, Yangyang Liu, Tengxiao Xiongsong, Ziyi Yang, Hao Zhang, Mang Gao, Hongjian Li, Guozhang Dai, Junliang Yang","doi":"10.1021/acsnano.4c11758","DOIUrl":null,"url":null,"abstract":"Perovskite-based direct-current triboelectric nanogenerators (DC-TENGs) leveraging the tribo-photovoltaic effect have garnered significant attention for their ability to simultaneously harvest mechanical and solar energy, effectively enhancing the output performance of DC-TENGs. Herein, we innovatively construct a rolling-mode Cu/ternary cation perovskite (FA<sub>0.945</sub>MA<sub>0.025</sub>Cs<sub>0.03</sub>Pb(I<sub>0.975</sub>Br<sub>0.025</sub>)<sub>3</sub>) Schottky junction DC-TENGs with ultrahigh current output and excellent operational stability. The Cu/perovskite Schottky junction ensures the formation of an internal electric field, promoting carrier separation and directional movement for a stable DC output. Under AM 1.5 G illumination, the DC-TENG achieves a short-circuit current (<i>I</i><sub>sc</sub>) and current density of 408 μA and 27.2 A/m<sup>2</sup>, respectively, marking a 119 times increase as compared to dark conditions and the highest reported <i>I</i><sub>sc</sub> for perovskite DC-TENGs. With over 30 min of operation, the current output remains stable. The DC-TENGs exhibit promising applications in temperature and humidity sensing and self-powered photodetection. Furthermore, by adjusting the light power density, the optimal internal output impedance of DC-TENGs can be tuned broadly from 0.9 to 132 kΩ, offering great potential for impedance matching in self-powered microelectronic components. This research provides insights into the development of multifunctional DC-TENG devices with coupled mechanical and solar energy, expanding the application scope of perovskite materials and devices.","PeriodicalId":21,"journal":{"name":"ACS Nano","volume":"25 1","pages":""},"PeriodicalIF":16.0000,"publicationDate":"2024-12-10","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Constructing Ultra-High Current Direct-Current Tribo-Photovoltaic Nanogenerators via Cu/Perovskite Schottky Junction\",\"authors\":\"Yuguang Luo, Yang Ding, Yangyang Liu, Tengxiao Xiongsong, Ziyi Yang, Hao Zhang, Mang Gao, Hongjian Li, Guozhang Dai, Junliang Yang\",\"doi\":\"10.1021/acsnano.4c11758\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Perovskite-based direct-current triboelectric nanogenerators (DC-TENGs) leveraging the tribo-photovoltaic effect have garnered significant attention for their ability to simultaneously harvest mechanical and solar energy, effectively enhancing the output performance of DC-TENGs. Herein, we innovatively construct a rolling-mode Cu/ternary cation perovskite (FA<sub>0.945</sub>MA<sub>0.025</sub>Cs<sub>0.03</sub>Pb(I<sub>0.975</sub>Br<sub>0.025</sub>)<sub>3</sub>) Schottky junction DC-TENGs with ultrahigh current output and excellent operational stability. The Cu/perovskite Schottky junction ensures the formation of an internal electric field, promoting carrier separation and directional movement for a stable DC output. Under AM 1.5 G illumination, the DC-TENG achieves a short-circuit current (<i>I</i><sub>sc</sub>) and current density of 408 μA and 27.2 A/m<sup>2</sup>, respectively, marking a 119 times increase as compared to dark conditions and the highest reported <i>I</i><sub>sc</sub> for perovskite DC-TENGs. With over 30 min of operation, the current output remains stable. The DC-TENGs exhibit promising applications in temperature and humidity sensing and self-powered photodetection. Furthermore, by adjusting the light power density, the optimal internal output impedance of DC-TENGs can be tuned broadly from 0.9 to 132 kΩ, offering great potential for impedance matching in self-powered microelectronic components. This research provides insights into the development of multifunctional DC-TENG devices with coupled mechanical and solar energy, expanding the application scope of perovskite materials and devices.\",\"PeriodicalId\":21,\"journal\":{\"name\":\"ACS Nano\",\"volume\":\"25 1\",\"pages\":\"\"},\"PeriodicalIF\":16.0000,\"publicationDate\":\"2024-12-10\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Nano\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1021/acsnano.4c11758\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Nano","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acsnano.4c11758","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

基于钙钛矿的直流摩擦纳米发电机(dc - teng)利用摩擦光伏效应,能够同时收集机械能和太阳能,有效地提高了dc - teng的输出性能,引起了人们的广泛关注。在此,我们创新地构建了一种具有超高电流输出和优异工作稳定性的滚动模式Cu/三元阳离子钙钛矿(FA0.945MA0.025Cs0.03Pb(I0.975Br0.025)3)肖特基结DC-TENGs。Cu/钙钛矿肖特基结确保了内部电场的形成,促进了载流子分离和定向运动,从而实现了稳定的直流输出。在AM 1.5 G光照下,DC-TENG的短路电流(Isc)和电流密度分别为408 μA和27.2 a /m2,比黑暗条件下提高了119倍,是钙钛矿DC-TENG的最高Isc。运行30分钟以上,电流输出保持稳定。dc - teng在温度、湿度传感和自供电光探测方面具有广阔的应用前景。此外,通过调节光功率密度,dc - teng的最佳内部输出阻抗可以在0.9到132 kΩ之间广泛调节,为自供电微电子元件的阻抗匹配提供了巨大的潜力。本研究为机械与太阳能耦合的多功能DC-TENG器件的发展提供了思路,拓展了钙钛矿材料和器件的应用范围。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Constructing Ultra-High Current Direct-Current Tribo-Photovoltaic Nanogenerators via Cu/Perovskite Schottky Junction

Constructing Ultra-High Current Direct-Current Tribo-Photovoltaic Nanogenerators via Cu/Perovskite Schottky Junction

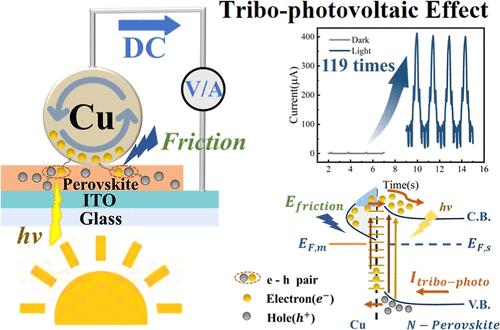

Perovskite-based direct-current triboelectric nanogenerators (DC-TENGs) leveraging the tribo-photovoltaic effect have garnered significant attention for their ability to simultaneously harvest mechanical and solar energy, effectively enhancing the output performance of DC-TENGs. Herein, we innovatively construct a rolling-mode Cu/ternary cation perovskite (FA0.945MA0.025Cs0.03Pb(I0.975Br0.025)3) Schottky junction DC-TENGs with ultrahigh current output and excellent operational stability. The Cu/perovskite Schottky junction ensures the formation of an internal electric field, promoting carrier separation and directional movement for a stable DC output. Under AM 1.5 G illumination, the DC-TENG achieves a short-circuit current (Isc) and current density of 408 μA and 27.2 A/m2, respectively, marking a 119 times increase as compared to dark conditions and the highest reported Isc for perovskite DC-TENGs. With over 30 min of operation, the current output remains stable. The DC-TENGs exhibit promising applications in temperature and humidity sensing and self-powered photodetection. Furthermore, by adjusting the light power density, the optimal internal output impedance of DC-TENGs can be tuned broadly from 0.9 to 132 kΩ, offering great potential for impedance matching in self-powered microelectronic components. This research provides insights into the development of multifunctional DC-TENG devices with coupled mechanical and solar energy, expanding the application scope of perovskite materials and devices.
求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
ACS Nano
ACS Nano 工程技术-材料科学:综合
CiteScore
26.00
自引率
4.10%
发文量
1627
审稿时长
1.7 months
期刊介绍: ACS Nano, published monthly, serves as an international forum for comprehensive articles on nanoscience and nanotechnology research at the intersections of chemistry, biology, materials science, physics, and engineering. The journal fosters communication among scientists in these communities, facilitating collaboration, new research opportunities, and advancements through discoveries. ACS Nano covers synthesis, assembly, characterization, theory, and simulation of nanostructures, nanobiotechnology, nanofabrication, methods and tools for nanoscience and nanotechnology, and self- and directed-assembly. Alongside original research articles, it offers thorough reviews, perspectives on cutting-edge research, and discussions envisioning the future of nanoscience and nanotechnology.
×
