新型多羰基导电聚合物协同掺杂策略实现稳定的自供电钙钛矿光电探测器

IF 12.1 2区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Small Pub Date : 2024-12-09 DOI:10.1002/smll.202406568
Lixian Jiang, Haoran Tang, Jiangshan He, Xiaobo Liu, Xiangyu Liu, Jiuyao Du, Hai Xiao, Fei Huang, Dongxin Ma, Guifang Dong
{"title":"新型多羰基导电聚合物协同掺杂策略实现稳定的自供电钙钛矿光电探测器","authors":"Lixian Jiang,&nbsp;Haoran Tang,&nbsp;Jiangshan He,&nbsp;Xiaobo Liu,&nbsp;Xiangyu Liu,&nbsp;Jiuyao Du,&nbsp;Hai Xiao,&nbsp;Fei Huang,&nbsp;Dongxin Ma,&nbsp;Guifang Dong","doi":"10.1002/smll.202406568","DOIUrl":null,"url":null,"abstract":"<p>Lead halide perovskites hold immense promise for optoelectronic applications but still suffer from instability caused by defects. The defects are mainly generated from the film fabrication processes and halide ion migration during long-term storage. Here, a synergistic doping strategy is proposed to enhance the stability of perovskites. A novel multi-carbonyl conductive polymer, poly(benzodifurandione) (PBFDO), is incorporated into the precursor solution to effectively passivate the unoccupied Pb<sup>2+</sup> defects in perovskite films and promote the continuous growth of perovskites. An organic iodide, thiophene-2-ethylammonium iodide (TEAI), is doped in the transport layer to inhibit the halide ion migration and enhance the stability of perovskites synergistically. Self-powered photodetectors are constructed with improved stability, maintaining ≈90% of their initial photocurrents after being stored for ≈87 days in a humid atmosphere with 60% relative humidity. The optimized photodetectors show a high detectivity of 8.1 × 10<sup>12</sup> Jones at 680 nm wavelength, wide linear dynamic range of 121.9 dB, and fast response with a rise/fall time of 1.92/1.17 µs. A reflection-mode perovskite photoplethysmography testing system is developed, achieving high heart rate testing capabilities. This work suggests the great potential of perovskite photodetectors for noninvasive medical monitoring applications.</p>","PeriodicalId":228,"journal":{"name":"Small","volume":"21 3","pages":""},"PeriodicalIF":12.1000,"publicationDate":"2024-12-09","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Synergistic Doping Strategy with Novel Multi-Carbonyl Conductive Polymer Enables Stable Self-Powered Perovskite Photodetectors\",\"authors\":\"Lixian Jiang,&nbsp;Haoran Tang,&nbsp;Jiangshan He,&nbsp;Xiaobo Liu,&nbsp;Xiangyu Liu,&nbsp;Jiuyao Du,&nbsp;Hai Xiao,&nbsp;Fei Huang,&nbsp;Dongxin Ma,&nbsp;Guifang Dong\",\"doi\":\"10.1002/smll.202406568\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>Lead halide perovskites hold immense promise for optoelectronic applications but still suffer from instability caused by defects. The defects are mainly generated from the film fabrication processes and halide ion migration during long-term storage. Here, a synergistic doping strategy is proposed to enhance the stability of perovskites. A novel multi-carbonyl conductive polymer, poly(benzodifurandione) (PBFDO), is incorporated into the precursor solution to effectively passivate the unoccupied Pb<sup>2+</sup> defects in perovskite films and promote the continuous growth of perovskites. An organic iodide, thiophene-2-ethylammonium iodide (TEAI), is doped in the transport layer to inhibit the halide ion migration and enhance the stability of perovskites synergistically. Self-powered photodetectors are constructed with improved stability, maintaining ≈90% of their initial photocurrents after being stored for ≈87 days in a humid atmosphere with 60% relative humidity. The optimized photodetectors show a high detectivity of 8.1 × 10<sup>12</sup> Jones at 680 nm wavelength, wide linear dynamic range of 121.9 dB, and fast response with a rise/fall time of 1.92/1.17 µs. A reflection-mode perovskite photoplethysmography testing system is developed, achieving high heart rate testing capabilities. This work suggests the great potential of perovskite photodetectors for noninvasive medical monitoring applications.</p>\",\"PeriodicalId\":228,\"journal\":{\"name\":\"Small\",\"volume\":\"21 3\",\"pages\":\"\"},\"PeriodicalIF\":12.1000,\"publicationDate\":\"2024-12-09\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Small\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://onlinelibrary.wiley.com/doi/10.1002/smll.202406568\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Small","FirstCategoryId":"88","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/smll.202406568","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

卤化铅钙钛矿在光电应用方面具有巨大的前景,但仍然存在缺陷引起的不稳定性。这些缺陷主要是由于薄膜制作过程和卤化物离子在长期储存过程中的迁移造成的。本文提出了一种协同掺杂策略来提高钙钛矿的稳定性。在前驱体溶液中掺入一种新型多羰基导电聚合物聚苯并二呋喃二酮(pbdo),可有效钝化钙钛矿薄膜中未占据的Pb2+缺陷,促进钙钛矿的连续生长。在输运层中掺入有机碘化物噻吩-2-乙基碘化铵(TEAI),协同抑制卤化物离子迁移,增强钙钛矿的稳定性。自供电光电探测器具有更好的稳定性,在相对湿度为60%的潮湿大气中储存约87天后,可保持约90%的初始光电流。优化后的光电探测器在680 nm波长具有8.1 × 1012 Jones的高探测率,121.9 dB的宽线性动态范围,快速响应,上升/下降时间为1.92/1.17µs。研制了一种反射式钙钛矿光电脉搏波测试系统,实现了高心率测试能力。这项工作表明钙钛矿光电探测器在无创医疗监测应用中的巨大潜力。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Synergistic Doping Strategy with Novel Multi-Carbonyl Conductive Polymer Enables Stable Self-Powered Perovskite Photodetectors

Synergistic Doping Strategy with Novel Multi-Carbonyl Conductive Polymer Enables Stable Self-Powered Perovskite Photodetectors

Synergistic Doping Strategy with Novel Multi-Carbonyl Conductive Polymer Enables Stable Self-Powered Perovskite Photodetectors

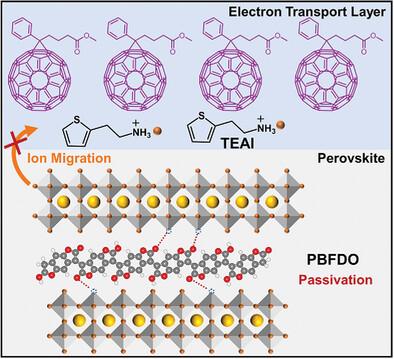

Lead halide perovskites hold immense promise for optoelectronic applications but still suffer from instability caused by defects. The defects are mainly generated from the film fabrication processes and halide ion migration during long-term storage. Here, a synergistic doping strategy is proposed to enhance the stability of perovskites. A novel multi-carbonyl conductive polymer, poly(benzodifurandione) (PBFDO), is incorporated into the precursor solution to effectively passivate the unoccupied Pb2+ defects in perovskite films and promote the continuous growth of perovskites. An organic iodide, thiophene-2-ethylammonium iodide (TEAI), is doped in the transport layer to inhibit the halide ion migration and enhance the stability of perovskites synergistically. Self-powered photodetectors are constructed with improved stability, maintaining ≈90% of their initial photocurrents after being stored for ≈87 days in a humid atmosphere with 60% relative humidity. The optimized photodetectors show a high detectivity of 8.1 × 1012 Jones at 680 nm wavelength, wide linear dynamic range of 121.9 dB, and fast response with a rise/fall time of 1.92/1.17 µs. A reflection-mode perovskite photoplethysmography testing system is developed, achieving high heart rate testing capabilities. This work suggests the great potential of perovskite photodetectors for noninvasive medical monitoring applications.
