Pd/TiO2晶面工程提高硝基芳烃加氢活性和选择性

IF 13.2 1区 工程技术 Q1 ENGINEERING, CHEMICAL
Zhichen Liu, Zongxuan Yang, Hongwei Zhang, Shidong Wang, Qunhong Liu, Zhengyu Zhao, Xiaojun Bao, Pei Yuan
{"title":"Pd/TiO2晶面工程提高硝基芳烃加氢活性和选择性","authors":"Zhichen Liu, Zongxuan Yang, Hongwei Zhang, Shidong Wang, Qunhong Liu, Zhengyu Zhao, Xiaojun Bao, Pei Yuan","doi":"10.1016/j.cej.2024.158337","DOIUrl":null,"url":null,"abstract":"Palladium-based catalysts have been intensively investigated for the hydrogenation of nitroarenes due to their high activity. However, it remains a challenge to achieve high selectivity when reducing or halo groups are present. Herein, we propose a facet engineering strategy to regulate the activity and selectivity of Pd/TiO<sub>2</sub> and a series of Pd/TiO<sub>2</sub> catalysts with adjustable proportions of (101) and (001) facet of TiO<sub>2</sub> were synthesized for the selective hydrogenation of nitroarenes. With increased percentage of (101) facet, better dispersed Pd species and more oxygen vacancies (O<sub>V</sub>) can be generated on the Pd/TiO<sub>2</sub> catalyst, thereby providing increasing hydrogenation reaction centers with strongly adsorbed nitro groups. As a result, the Pd/TiO<sub>2</sub> with dominant (101) facet and 0.1 wt% of Pd loading (Pd/TiO<sub>2</sub>-c) delivers an outstanding conversion (100 %) of m-chloronitrobenzene, high selectivity (96.8 %) toward m-chloroaniline, and excellent reusability. In situ characterizations and density functional theory (DFT) simulation reveal that the Pd/TiO<sub>2</sub>-c exhibits much stronger adsorption toward nitro groups than chlorine group, while the catalyst with more (001) facet shows similar adsorption capability toward these two groups. Thereby, nitro group is more preferentially adsorbed and hydrogenated during the reaction on Pd/TiO<sub>2</sub>-c, which explains the excellent selectivity. Remarkably, Pd/TiO<sub>2</sub>-c can also realize excellent conversion (100 %) and selectivity (&gt; 96 %) toward other functional nitroarenes containing −F, –OH, –CHO, –COCH<sub>2</sub>- groups. This work highlights the facet engineering of supports to tune the physicochemical properties of loaded active metal and the adsorption behavior of reactants, and provides an effective strategy for the further development of efficient Pd-based catalysts for selective nitroarenes hydrogenation.","PeriodicalId":270,"journal":{"name":"Chemical Engineering Journal","volume":"83 1","pages":""},"PeriodicalIF":13.2000,"publicationDate":"2024-12-09","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Crystal facet engineering of Pd/TiO2 to boost the activity and selectivity for nitroarenes hydrogenation\",\"authors\":\"Zhichen Liu, Zongxuan Yang, Hongwei Zhang, Shidong Wang, Qunhong Liu, Zhengyu Zhao, Xiaojun Bao, Pei Yuan\",\"doi\":\"10.1016/j.cej.2024.158337\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Palladium-based catalysts have been intensively investigated for the hydrogenation of nitroarenes due to their high activity. However, it remains a challenge to achieve high selectivity when reducing or halo groups are present. Herein, we propose a facet engineering strategy to regulate the activity and selectivity of Pd/TiO<sub>2</sub> and a series of Pd/TiO<sub>2</sub> catalysts with adjustable proportions of (101) and (001) facet of TiO<sub>2</sub> were synthesized for the selective hydrogenation of nitroarenes. With increased percentage of (101) facet, better dispersed Pd species and more oxygen vacancies (O<sub>V</sub>) can be generated on the Pd/TiO<sub>2</sub> catalyst, thereby providing increasing hydrogenation reaction centers with strongly adsorbed nitro groups. As a result, the Pd/TiO<sub>2</sub> with dominant (101) facet and 0.1 wt% of Pd loading (Pd/TiO<sub>2</sub>-c) delivers an outstanding conversion (100 %) of m-chloronitrobenzene, high selectivity (96.8 %) toward m-chloroaniline, and excellent reusability. In situ characterizations and density functional theory (DFT) simulation reveal that the Pd/TiO<sub>2</sub>-c exhibits much stronger adsorption toward nitro groups than chlorine group, while the catalyst with more (001) facet shows similar adsorption capability toward these two groups. Thereby, nitro group is more preferentially adsorbed and hydrogenated during the reaction on Pd/TiO<sub>2</sub>-c, which explains the excellent selectivity. Remarkably, Pd/TiO<sub>2</sub>-c can also realize excellent conversion (100 %) and selectivity (&gt; 96 %) toward other functional nitroarenes containing −F, –OH, –CHO, –COCH<sub>2</sub>- groups. This work highlights the facet engineering of supports to tune the physicochemical properties of loaded active metal and the adsorption behavior of reactants, and provides an effective strategy for the further development of efficient Pd-based catalysts for selective nitroarenes hydrogenation.\",\"PeriodicalId\":270,\"journal\":{\"name\":\"Chemical Engineering Journal\",\"volume\":\"83 1\",\"pages\":\"\"},\"PeriodicalIF\":13.2000,\"publicationDate\":\"2024-12-09\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Chemical Engineering Journal\",\"FirstCategoryId\":\"5\",\"ListUrlMain\":\"https://doi.org/10.1016/j.cej.2024.158337\",\"RegionNum\":1,\"RegionCategory\":\"工程技术\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"ENGINEERING, CHEMICAL\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Chemical Engineering Journal","FirstCategoryId":"5","ListUrlMain":"https://doi.org/10.1016/j.cej.2024.158337","RegionNum":1,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"ENGINEERING, CHEMICAL","Score":null,"Total":0}
引用次数: 0

摘要

钯基催化剂因其高活性而被广泛研究用于硝基芳烃的加氢反应。然而,当还原基团或光环基团存在时,实现高选择性仍然是一个挑战。在此,我们提出了一个面工程策略来调节Pd/TiO2的活性和选择性,并合成了一系列具有TiO2面(101)和(001)可调比例的Pd/TiO2催化剂,用于硝基芳烃的选择性加氢。随着(101)facet百分比的增加,Pd/TiO2催化剂上的Pd物质分散性更好,氧空位(OV)也更多,从而提供了更多具有强吸附硝基的加氢反应中心。结果表明,Pd/TiO2具有优势面(101)和0.1 wt%的Pd负载(Pd/TiO2-c),具有优异的间氯硝基苯转化率(100 %),对间氯苯胺的选择性高(96.8% %),并且具有良好的可重复使用性。原位表征和密度泛函数理论(DFT)模拟表明,Pd/TiO2-c对硝基的吸附比氯基强得多,而(001)面多的催化剂对硝基和氯基的吸附能力相似。因此,在Pd/TiO2-c反应过程中,硝基更优先被吸附和氢化,这解释了优异的选择性。值得注意的是,Pd/TiO2-c还可以实现出色的转化率(100% %)和选择性(>;96 %)转向其他含有- F, - oh, - cho, - coch2 -基团的功能硝基芳烃。本研究强调了载体的面工程,以调整负载活性金属的物理化学性质和反应物的吸附行为,并为进一步开发高效的pd基选择性硝基芳烃加氢催化剂提供了有效的策略。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Crystal facet engineering of Pd/TiO2 to boost the activity and selectivity for nitroarenes hydrogenation

Crystal facet engineering of Pd/TiO2 to boost the activity and selectivity for nitroarenes hydrogenation

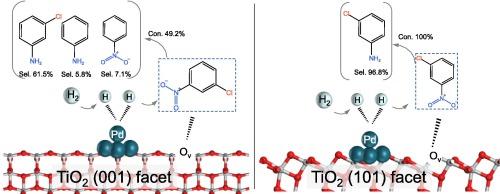

Palladium-based catalysts have been intensively investigated for the hydrogenation of nitroarenes due to their high activity. However, it remains a challenge to achieve high selectivity when reducing or halo groups are present. Herein, we propose a facet engineering strategy to regulate the activity and selectivity of Pd/TiO2 and a series of Pd/TiO2 catalysts with adjustable proportions of (101) and (001) facet of TiO2 were synthesized for the selective hydrogenation of nitroarenes. With increased percentage of (101) facet, better dispersed Pd species and more oxygen vacancies (OV) can be generated on the Pd/TiO2 catalyst, thereby providing increasing hydrogenation reaction centers with strongly adsorbed nitro groups. As a result, the Pd/TiO2 with dominant (101) facet and 0.1 wt% of Pd loading (Pd/TiO2-c) delivers an outstanding conversion (100 %) of m-chloronitrobenzene, high selectivity (96.8 %) toward m-chloroaniline, and excellent reusability. In situ characterizations and density functional theory (DFT) simulation reveal that the Pd/TiO2-c exhibits much stronger adsorption toward nitro groups than chlorine group, while the catalyst with more (001) facet shows similar adsorption capability toward these two groups. Thereby, nitro group is more preferentially adsorbed and hydrogenated during the reaction on Pd/TiO2-c, which explains the excellent selectivity. Remarkably, Pd/TiO2-c can also realize excellent conversion (100 %) and selectivity (> 96 %) toward other functional nitroarenes containing −F, –OH, –CHO, –COCH2- groups. This work highlights the facet engineering of supports to tune the physicochemical properties of loaded active metal and the adsorption behavior of reactants, and provides an effective strategy for the further development of efficient Pd-based catalysts for selective nitroarenes hydrogenation.
求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Chemical Engineering Journal
Chemical Engineering Journal 工程技术-工程:化工
CiteScore
21.70
自引率
9.30%
发文量
6781
审稿时长
2.4 months
期刊介绍: The Chemical Engineering Journal is an international research journal that invites contributions of original and novel fundamental research. It aims to provide an international platform for presenting original fundamental research, interpretative reviews, and discussions on new developments in chemical engineering. The journal welcomes papers that describe novel theory and its practical application, as well as those that demonstrate the transfer of techniques from other disciplines. It also welcomes reports on carefully conducted experimental work that is soundly interpreted. The main focus of the journal is on original and rigorous research results that have broad significance. The Catalysis section within the Chemical Engineering Journal focuses specifically on Experimental and Theoretical studies in the fields of heterogeneous catalysis, molecular catalysis, and biocatalysis. These studies have industrial impact on various sectors such as chemicals, energy, materials, foods, healthcare, and environmental protection.
×
