Mxene和GaIn合金纳米结构调控高性能锌离子电池锌表面离子沉积

IF 8.2 2区 材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY
Zhanying Yu, Xiyu Wang, Xinlong He, Runjing Li, Aimin Zhang, Jihai Zhang
{"title":"Mxene和GaIn合金纳米结构调控高性能锌离子电池锌表面离子沉积","authors":"Zhanying Yu, Xiyu Wang, Xinlong He, Runjing Li, Aimin Zhang, Jihai Zhang","doi":"10.1021/acsami.4c13288","DOIUrl":null,"url":null,"abstract":"Zinc is an ideal energy storage material because of its low toxicity, nonflammability, and good biocompatibility. However, the commercial application is seriously hindered due to problems such as dendrite growth, hydrogen evolution, and interface passivation caused by “dead zinc” in the process of cyclic deposition. Herein, a nanoscale deposition dispersion model is designed in order to achieve directional deposition and uniform distribution of zinc ions for the growth of interfacial dendrites. Liquid metal GaIn was combined with Mxene for this nanostructure, which provides a rapid ion transfer channel to achieve lower overpotentials, a more uniform electric field distribution, and stronger corrosion resistance in a core–shell structure to achieve interface reaction suppression. The material was coated on the surface of the zinc metal as an artificial protective layer. It has a better cycle life at 1 mA·cm<sup>–2</sup> compared with the bare Zn metal anode, achieving a long cycle time of 1100 h and an ultralow voltage lag (28.1 mV). It maintains the stability for 1000 cycles at 1 mA·cm<sup>–2</sup> after assembling the complete battery. This provides a way to improve the performance of zinc-ion secondary batteries and paves the way for the next generation of energy storage devices.","PeriodicalId":5,"journal":{"name":"ACS Applied Materials & Interfaces","volume":"214 1","pages":""},"PeriodicalIF":8.2000,"publicationDate":"2024-12-03","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Mxene and GaIn Alloy Nanostructures Regulate Zn Surface Ion Deposition for High-Performance Zinc-Ion Battery\",\"authors\":\"Zhanying Yu, Xiyu Wang, Xinlong He, Runjing Li, Aimin Zhang, Jihai Zhang\",\"doi\":\"10.1021/acsami.4c13288\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Zinc is an ideal energy storage material because of its low toxicity, nonflammability, and good biocompatibility. However, the commercial application is seriously hindered due to problems such as dendrite growth, hydrogen evolution, and interface passivation caused by “dead zinc” in the process of cyclic deposition. Herein, a nanoscale deposition dispersion model is designed in order to achieve directional deposition and uniform distribution of zinc ions for the growth of interfacial dendrites. Liquid metal GaIn was combined with Mxene for this nanostructure, which provides a rapid ion transfer channel to achieve lower overpotentials, a more uniform electric field distribution, and stronger corrosion resistance in a core–shell structure to achieve interface reaction suppression. The material was coated on the surface of the zinc metal as an artificial protective layer. It has a better cycle life at 1 mA·cm<sup>–2</sup> compared with the bare Zn metal anode, achieving a long cycle time of 1100 h and an ultralow voltage lag (28.1 mV). It maintains the stability for 1000 cycles at 1 mA·cm<sup>–2</sup> after assembling the complete battery. This provides a way to improve the performance of zinc-ion secondary batteries and paves the way for the next generation of energy storage devices.\",\"PeriodicalId\":5,\"journal\":{\"name\":\"ACS Applied Materials & Interfaces\",\"volume\":\"214 1\",\"pages\":\"\"},\"PeriodicalIF\":8.2000,\"publicationDate\":\"2024-12-03\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Materials & Interfaces\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1021/acsami.4c13288\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Materials & Interfaces","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acsami.4c13288","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

锌具有低毒、不易燃、生物相容性好等优点,是一种理想的储能材料。但由于循环沉积过程中存在枝晶生长、析氢、“死锌”导致界面钝化等问题,严重阻碍了其商业化应用。本文设计了纳米级沉积分散模型,以实现锌离子的定向沉积和均匀分布,促进界面枝晶的生长。将液态金属GaIn与Mxene相结合,为该纳米结构提供了快速的离子转移通道,从而实现了更低的过电位、更均匀的电场分布和更强的耐腐蚀性,从而实现了界面反应抑制。将该材料涂覆在金属锌表面作为人工保护层。在1 mA·cm-2下,与裸锌金属阳极相比,它具有更好的循环寿命,循环时间长达1100 h,电压滞后极低(28.1 mV)。在组装完整的电池后,它在1 mA·cm-2下保持1000次循环的稳定性。这为提高锌离子二次电池的性能提供了一种方法,并为下一代储能设备铺平了道路。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Mxene and GaIn Alloy Nanostructures Regulate Zn Surface Ion Deposition for High-Performance Zinc-Ion Battery

Mxene and GaIn Alloy Nanostructures Regulate Zn Surface Ion Deposition for High-Performance Zinc-Ion Battery

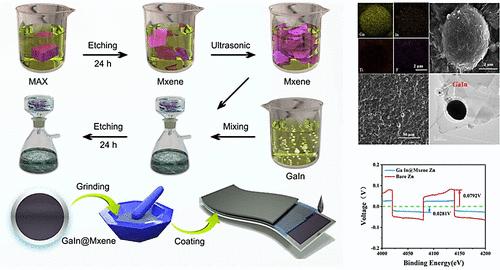

Zinc is an ideal energy storage material because of its low toxicity, nonflammability, and good biocompatibility. However, the commercial application is seriously hindered due to problems such as dendrite growth, hydrogen evolution, and interface passivation caused by “dead zinc” in the process of cyclic deposition. Herein, a nanoscale deposition dispersion model is designed in order to achieve directional deposition and uniform distribution of zinc ions for the growth of interfacial dendrites. Liquid metal GaIn was combined with Mxene for this nanostructure, which provides a rapid ion transfer channel to achieve lower overpotentials, a more uniform electric field distribution, and stronger corrosion resistance in a core–shell structure to achieve interface reaction suppression. The material was coated on the surface of the zinc metal as an artificial protective layer. It has a better cycle life at 1 mA·cm–2 compared with the bare Zn metal anode, achieving a long cycle time of 1100 h and an ultralow voltage lag (28.1 mV). It maintains the stability for 1000 cycles at 1 mA·cm–2 after assembling the complete battery. This provides a way to improve the performance of zinc-ion secondary batteries and paves the way for the next generation of energy storage devices.
