用于透明可穿戴电子产品的高度透明和可转移的超长碳纳米管网络

IF 16 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY
Fei Wang, Kangkang Wang, Ziyang Chang, Huarun Liang, Qinyuan Jiang, Aike Xi, Yanlong Zhao, Siming Zhao, Khaixien Leu, Xueke Wu, Run Li, Ya Huang, Yingying Zhang and Rufan Zhang*,
{"title":"用于透明可穿戴电子产品的高度透明和可转移的超长碳纳米管网络","authors":"Fei Wang,&nbsp;Kangkang Wang,&nbsp;Ziyang Chang,&nbsp;Huarun Liang,&nbsp;Qinyuan Jiang,&nbsp;Aike Xi,&nbsp;Yanlong Zhao,&nbsp;Siming Zhao,&nbsp;Khaixien Leu,&nbsp;Xueke Wu,&nbsp;Run Li,&nbsp;Ya Huang,&nbsp;Yingying Zhang and Rufan Zhang*,&nbsp;","doi":"10.1021/acsnano.4c1534210.1021/acsnano.4c15342","DOIUrl":null,"url":null,"abstract":"<p >Recent advances in transparent wearable electronics highlighted the need for flexible conductive layers with high transmittance. Carbon nanotubes (CNTs) are ideal candidates for constructing transparent conductive networks due to their excellent flexibility, desirable optical properties, and outstanding electrical characteristics. However, their performance is severely degraded by the junction resistance between individual CNTs. Herein, we prepared nearly invisible and transferable ultralong CNT conductive networks with high transmittance (&gt;99% at 550 nm). The centimeter-scale length of ultralong CNTs facilitated the successful assembly of conductive and suspended networks with a minimal thickness, absorption area, and junction density, enabling ultrahigh transmittance and transferability. Further, we developed an ultralong CNT-based flexible and transparent pressure sensor to verify their practical value. The sensor exhibited a high sensitivity (225.11 kPa<sup>–1</sup>), a broad operating range (up to 160 kPa), a rapid response time (11 ms), and robust stability over 10,000 cycles, outperforming most state-of-the-art transparent pressure sensors. This work shows the promising application potential of ultralong CNTs in high-performance transparent wearable electronics.</p>","PeriodicalId":21,"journal":{"name":"ACS Nano","volume":"18 48","pages":"33245–33255 33245–33255"},"PeriodicalIF":16.0000,"publicationDate":"2024-11-19","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Highly Transparent and Transferable Ultralong Carbon Nanotube Networks for Transparent Wearable Electronics\",\"authors\":\"Fei Wang,&nbsp;Kangkang Wang,&nbsp;Ziyang Chang,&nbsp;Huarun Liang,&nbsp;Qinyuan Jiang,&nbsp;Aike Xi,&nbsp;Yanlong Zhao,&nbsp;Siming Zhao,&nbsp;Khaixien Leu,&nbsp;Xueke Wu,&nbsp;Run Li,&nbsp;Ya Huang,&nbsp;Yingying Zhang and Rufan Zhang*,&nbsp;\",\"doi\":\"10.1021/acsnano.4c1534210.1021/acsnano.4c15342\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Recent advances in transparent wearable electronics highlighted the need for flexible conductive layers with high transmittance. Carbon nanotubes (CNTs) are ideal candidates for constructing transparent conductive networks due to their excellent flexibility, desirable optical properties, and outstanding electrical characteristics. However, their performance is severely degraded by the junction resistance between individual CNTs. Herein, we prepared nearly invisible and transferable ultralong CNT conductive networks with high transmittance (&gt;99% at 550 nm). The centimeter-scale length of ultralong CNTs facilitated the successful assembly of conductive and suspended networks with a minimal thickness, absorption area, and junction density, enabling ultrahigh transmittance and transferability. Further, we developed an ultralong CNT-based flexible and transparent pressure sensor to verify their practical value. The sensor exhibited a high sensitivity (225.11 kPa<sup>–1</sup>), a broad operating range (up to 160 kPa), a rapid response time (11 ms), and robust stability over 10,000 cycles, outperforming most state-of-the-art transparent pressure sensors. This work shows the promising application potential of ultralong CNTs in high-performance transparent wearable electronics.</p>\",\"PeriodicalId\":21,\"journal\":{\"name\":\"ACS Nano\",\"volume\":\"18 48\",\"pages\":\"33245–33255 33245–33255\"},\"PeriodicalIF\":16.0000,\"publicationDate\":\"2024-11-19\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Nano\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsnano.4c15342\",\"RegionNum\":1,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Nano","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsnano.4c15342","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

透明可穿戴电子产品的最新进展突出了对高透光率的柔性导电层的需求。碳纳米管(CNTs)由于其优异的柔韧性、理想的光学特性和优异的电学特性而成为构建透明导电网络的理想候选材料。然而,单个碳纳米管之间的结电阻严重降低了它们的性能。在这里,我们制备了几乎不可见和可转移的超长碳纳米管导电网络,具有高透射率(>99%, 550 nm)。超长碳纳米管的厘米级长度有助于导电和悬浮网络的成功组装,具有最小的厚度、吸收面积和结密度,从而实现超高的透过率和可转移性。此外,我们还开发了一种基于碳纳米管的超长柔性透明压力传感器,以验证其实用价值。该传感器具有高灵敏度(225.11 kPa - 1)、宽工作范围(高达160 kPa)、快速响应时间(11 ms)和超过10,000次循环的强大稳定性,优于大多数最先进的透明压力传感器。这项工作显示了超长碳纳米管在高性能透明可穿戴电子器件中的应用潜力。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Highly Transparent and Transferable Ultralong Carbon Nanotube Networks for Transparent Wearable Electronics

Highly Transparent and Transferable Ultralong Carbon Nanotube Networks for Transparent Wearable Electronics

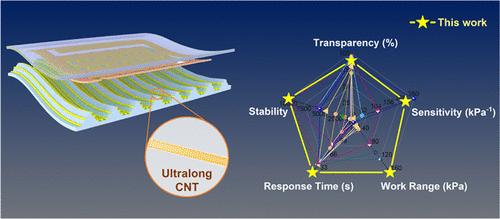

Recent advances in transparent wearable electronics highlighted the need for flexible conductive layers with high transmittance. Carbon nanotubes (CNTs) are ideal candidates for constructing transparent conductive networks due to their excellent flexibility, desirable optical properties, and outstanding electrical characteristics. However, their performance is severely degraded by the junction resistance between individual CNTs. Herein, we prepared nearly invisible and transferable ultralong CNT conductive networks with high transmittance (>99% at 550 nm). The centimeter-scale length of ultralong CNTs facilitated the successful assembly of conductive and suspended networks with a minimal thickness, absorption area, and junction density, enabling ultrahigh transmittance and transferability. Further, we developed an ultralong CNT-based flexible and transparent pressure sensor to verify their practical value. The sensor exhibited a high sensitivity (225.11 kPa–1), a broad operating range (up to 160 kPa), a rapid response time (11 ms), and robust stability over 10,000 cycles, outperforming most state-of-the-art transparent pressure sensors. This work shows the promising application potential of ultralong CNTs in high-performance transparent wearable electronics.
