{"title":"可控SiOx涂层促进锂离子电池高稳定硅负极","authors":"Yu Jing, Guangchao Li, Zhixing Wang, Xinhai Li, Wenjie Peng, Huajun Guo, Hui Duan, Guochun Yan, Jiexi Wang","doi":"10.1021/acsami.4c16389","DOIUrl":null,"url":null,"abstract":"Silicon (Si) is considered as one of the most promising candidates for next-generation lithium-ion batteries with high energy density. The main problems are the severe volume expansion and continuous interfacial side reaction of Si that hinder its further application. It can be an effective way by constructing a robust coating layer outside of Si to impede/alleviate the above effect. SiO<sub><i>x</i></sub> with high mechanical strength can largely promote the electrochemical performance of Si. Herein, Si@SiO<sub><i>x</i></sub> material with high specific surface area, high porosity, and controllable coating was synthesized via a simple solid–liquid reaction by LiOH solution etching effect. The etching/oxidation mechanism of Si under alkaline conditions was thoroughly investigated. The surface oxide layer of Si was beneficial to the formation of a solid electrolyte interphase (SEI) with excellent stability and high Li<sup>+</sup> conductivity, while its high-porosity structure reduces the volume expansion of the material by approximately 110%. Under the synergistic effect of etching-oxidation, the modified material exhibited superior electrochemical properties. When employed as anode materials, the specific capacity was as high as 3101.5 mAh g<sup>–1</sup> and maintained at 841.0 mAh g<sup>–1</sup> after 500 cycles at 1 A g<sup>–1</sup>.","PeriodicalId":5,"journal":{"name":"ACS Applied Materials & Interfaces","volume":"26 1","pages":""},"PeriodicalIF":8.2000,"publicationDate":"2024-12-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Controllable SiOx Coating Layer Promotes High Stable Si Anode for Lithium-Ion Batteries\",\"authors\":\"Yu Jing, Guangchao Li, Zhixing Wang, Xinhai Li, Wenjie Peng, Huajun Guo, Hui Duan, Guochun Yan, Jiexi Wang\",\"doi\":\"10.1021/acsami.4c16389\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Silicon (Si) is considered as one of the most promising candidates for next-generation lithium-ion batteries with high energy density. The main problems are the severe volume expansion and continuous interfacial side reaction of Si that hinder its further application. It can be an effective way by constructing a robust coating layer outside of Si to impede/alleviate the above effect. SiO<sub><i>x</i></sub> with high mechanical strength can largely promote the electrochemical performance of Si. Herein, Si@SiO<sub><i>x</i></sub> material with high specific surface area, high porosity, and controllable coating was synthesized via a simple solid–liquid reaction by LiOH solution etching effect. The etching/oxidation mechanism of Si under alkaline conditions was thoroughly investigated. The surface oxide layer of Si was beneficial to the formation of a solid electrolyte interphase (SEI) with excellent stability and high Li<sup>+</sup> conductivity, while its high-porosity structure reduces the volume expansion of the material by approximately 110%. Under the synergistic effect of etching-oxidation, the modified material exhibited superior electrochemical properties. When employed as anode materials, the specific capacity was as high as 3101.5 mAh g<sup>–1</sup> and maintained at 841.0 mAh g<sup>–1</sup> after 500 cycles at 1 A g<sup>–1</sup>.\",\"PeriodicalId\":5,\"journal\":{\"name\":\"ACS Applied Materials & Interfaces\",\"volume\":\"26 1\",\"pages\":\"\"},\"PeriodicalIF\":8.2000,\"publicationDate\":\"2024-12-02\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Materials & Interfaces\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1021/acsami.4c16389\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Materials & Interfaces","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1021/acsami.4c16389","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
摘要
硅(Si)被认为是具有高能量密度的下一代锂离子电池最有前途的候选者之一。主要问题是Si的体积膨胀严重,界面副反应持续,阻碍了其进一步应用。在硅外构筑坚固的涂层可以有效地抑制或减轻上述效应。高机械强度的SiOx能极大地促进Si的电化学性能。本文利用LiOH溶液蚀刻效应,通过简单的固液反应合成了高比表面积、高孔隙率、可控涂层的Si@SiOx材料。深入研究了硅在碱性条件下的蚀刻/氧化机理。Si的表面氧化层有利于形成具有优异稳定性和高Li+导电性的固体电解质界面相(SEI),而其高孔隙结构使材料的体积膨胀降低了约110%。在腐蚀-氧化协同作用下,改性材料表现出优异的电化学性能。作为阳极材料时,比容量高达3101.5 mAh g-1,在1 A g-1下循环500次后,比容量保持在841.0 mAh g-1。
Controllable SiOx Coating Layer Promotes High Stable Si Anode for Lithium-Ion Batteries

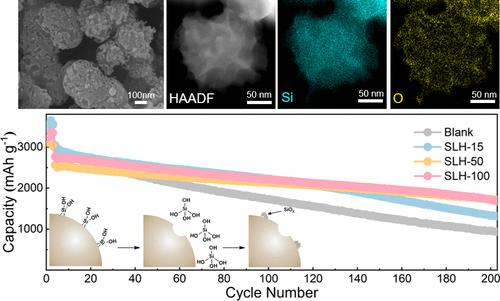

Silicon (Si) is considered as one of the most promising candidates for next-generation lithium-ion batteries with high energy density. The main problems are the severe volume expansion and continuous interfacial side reaction of Si that hinder its further application. It can be an effective way by constructing a robust coating layer outside of Si to impede/alleviate the above effect. SiOx with high mechanical strength can largely promote the electrochemical performance of Si. Herein, Si@SiOx material with high specific surface area, high porosity, and controllable coating was synthesized via a simple solid–liquid reaction by LiOH solution etching effect. The etching/oxidation mechanism of Si under alkaline conditions was thoroughly investigated. The surface oxide layer of Si was beneficial to the formation of a solid electrolyte interphase (SEI) with excellent stability and high Li+ conductivity, while its high-porosity structure reduces the volume expansion of the material by approximately 110%. Under the synergistic effect of etching-oxidation, the modified material exhibited superior electrochemical properties. When employed as anode materials, the specific capacity was as high as 3101.5 mAh g–1 and maintained at 841.0 mAh g–1 after 500 cycles at 1 A g–1.
