Lei Li*, Jun-Jie Wang, Nuo Yan, Yonghong Li, Rui Wang, Xueyan Li, Jiale Li, Yan Bai* and Dong-Bin Dang*,
{"title":"由 π 共轭基团和 SCN- 阴离子调控的三种 CuI-三吡啶配位聚合物在有机染料光降解中的应用","authors":"Lei Li*, Jun-Jie Wang, Nuo Yan, Yonghong Li, Rui Wang, Xueyan Li, Jiale Li, Yan Bai* and Dong-Bin Dang*, ","doi":"10.1021/acs.cgd.4c0097910.1021/acs.cgd.4c00979","DOIUrl":null,"url":null,"abstract":"<p >Developing novel materials for organic dye photodegradation is of great significance in wastewater treatment. Three Cu<sup>I</sup>-terpyridyl coordination polymers (CPs) [Cu<sub>2</sub>(L1)(SCN)<sub>2</sub>]<i><sub>n</sub></i> (<b>1</b>), [Cu<sub>3</sub>(L2)(SCN)<sub>3</sub>]<i><sub>n</sub></i> (<b>2</b>), and [Cu<sub>2</sub>(L3)(SCN)<sub>2</sub>]<i><sub>n</sub></i> (<b>3</b>) (L1 = 4-(naphthalen-1-yl)-2,6-di(pyridin-4-yl)pyridine, L2 = 4-(anthracen-1-yl)-2,6-di(pyridin-4-yl)pyridine, L3 = 4-(pyren-3-yl)-2,6-di(pyridin-4-yl)pyridine), have been solvothermally synthesized and exhibit two-dimensional structures extended by Cu<sup>I</sup> centers, SCN<sup>–</sup>, anions, and terpyridyl ligands with different π-conjugated groups. Complexes <b>1</b>–<b>3</b> can decompose methylene blue (MB), Rhodamine B (RhB), and methyl orange (MO) with photodegradation rates ranging from 44.4 to 96.8% in 120 min. Owing to the more positive valence band potential and lower band gap regulated by Cu(I) d-electrons and pi-electrons of terpyridyl ligands, complex <b>2</b> exhibits the highest photocatalytic activity with the order of <b>2</b> > <b>1</b> > <b>3</b> and displays varied photodegradation efficiency for other dyes (Janus green B (JGB) and crystal violet (CV) with rates of 70.4 and 65.7% in 120 min, respectively). The degradation products and mechanism of MB by <b>2</b> have been proposed by liquid chromatography–mass spectrometry (LC-MS) and radical quenching experiments. These findings present an effective strategy for designing and synthesizing CPs in photodegradation by increasing the aromatic rings of π-conjugated groups and Cu<sup>I</sup> center numbers, which may exert important impacts in wastewater treatment.</p>","PeriodicalId":34,"journal":{"name":"Crystal Growth & Design","volume":"24 22","pages":"9527–9537 9527–9537"},"PeriodicalIF":3.4000,"publicationDate":"2024-10-30","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Three CuI-Terpyridyl Coordination Polymers Regulated by π-Conjugated Groups and SCN– Anions for Organic Dye Photodegradation\",\"authors\":\"Lei Li*, Jun-Jie Wang, Nuo Yan, Yonghong Li, Rui Wang, Xueyan Li, Jiale Li, Yan Bai* and Dong-Bin Dang*, \",\"doi\":\"10.1021/acs.cgd.4c0097910.1021/acs.cgd.4c00979\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Developing novel materials for organic dye photodegradation is of great significance in wastewater treatment. Three Cu<sup>I</sup>-terpyridyl coordination polymers (CPs) [Cu<sub>2</sub>(L1)(SCN)<sub>2</sub>]<i><sub>n</sub></i> (<b>1</b>), [Cu<sub>3</sub>(L2)(SCN)<sub>3</sub>]<i><sub>n</sub></i> (<b>2</b>), and [Cu<sub>2</sub>(L3)(SCN)<sub>2</sub>]<i><sub>n</sub></i> (<b>3</b>) (L1 = 4-(naphthalen-1-yl)-2,6-di(pyridin-4-yl)pyridine, L2 = 4-(anthracen-1-yl)-2,6-di(pyridin-4-yl)pyridine, L3 = 4-(pyren-3-yl)-2,6-di(pyridin-4-yl)pyridine), have been solvothermally synthesized and exhibit two-dimensional structures extended by Cu<sup>I</sup> centers, SCN<sup>–</sup>, anions, and terpyridyl ligands with different π-conjugated groups. Complexes <b>1</b>–<b>3</b> can decompose methylene blue (MB), Rhodamine B (RhB), and methyl orange (MO) with photodegradation rates ranging from 44.4 to 96.8% in 120 min. Owing to the more positive valence band potential and lower band gap regulated by Cu(I) d-electrons and pi-electrons of terpyridyl ligands, complex <b>2</b> exhibits the highest photocatalytic activity with the order of <b>2</b> > <b>1</b> > <b>3</b> and displays varied photodegradation efficiency for other dyes (Janus green B (JGB) and crystal violet (CV) with rates of 70.4 and 65.7% in 120 min, respectively). The degradation products and mechanism of MB by <b>2</b> have been proposed by liquid chromatography–mass spectrometry (LC-MS) and radical quenching experiments. These findings present an effective strategy for designing and synthesizing CPs in photodegradation by increasing the aromatic rings of π-conjugated groups and Cu<sup>I</sup> center numbers, which may exert important impacts in wastewater treatment.</p>\",\"PeriodicalId\":34,\"journal\":{\"name\":\"Crystal Growth & Design\",\"volume\":\"24 22\",\"pages\":\"9527–9537 9527–9537\"},\"PeriodicalIF\":3.4000,\"publicationDate\":\"2024-10-30\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Crystal Growth & Design\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acs.cgd.4c00979\",\"RegionNum\":2,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Crystal Growth & Design","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.cgd.4c00979","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
摘要
开发新型有机染料光降解材料对废水处理具有重要意义。三种 CuI 三吡啶配位聚合物(CPs)[Cu2(L1)(SCN)2]n (1)、[Cu3(L2)(SCN)3]n (2) 和 [Cu2(L3)(SCN)2]n (3)(L1 = 4-(萘-1-基)-2,6-二(吡啶-4-基)吡啶,L2 = 4-(蒽-1-基)-2,6-二(吡啶-4-基)吡啶、L3 = 4-(吡喃-3-基)-2,6-二(吡啶-4-基)吡啶)的溶解热合成,并表现出由 CuI 中心、SCN-、阴离子和具有不同 π 共轭基团的叔吡啶配体扩展的二维结构。配合物 1-3 可在 120 分钟内分解亚甲基蓝(MB)、罗丹明 B(RhB)和甲基橙(MO),光降解率为 44.4% 至 96.8%。由于 Cu(I)的 d 电子和萜吡啶配体的 pi- 电子调节了较正的价带电位和较低的带隙,配合物 2 显示出最高的光催化活性,顺序为 2 > 1 > 3,而对其他染料(Janus green B (JGB) 和结晶紫 (CV),120 分钟内的光降解率分别为 70.4% 和 65.7%)则显示出不同的光降解效率。通过液相色谱-质谱法(LC-MS)和自由基淬灭实验,提出了 2 对甲基溴的降解产物和机理。这些发现为设计和合成光降解氯化石蜡提供了一种有效的策略,即通过增加π-共轭基团的芳香环数和 CuI 中心数来实现光降解,这可能会在废水处理中产生重要影响。
Three CuI-Terpyridyl Coordination Polymers Regulated by π-Conjugated Groups and SCN– Anions for Organic Dye Photodegradation

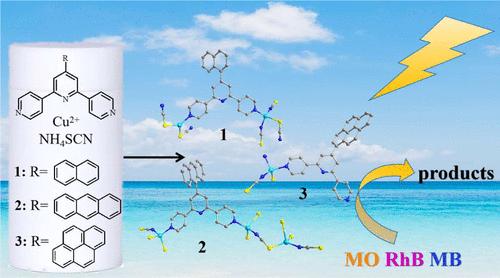

Developing novel materials for organic dye photodegradation is of great significance in wastewater treatment. Three CuI-terpyridyl coordination polymers (CPs) [Cu2(L1)(SCN)2]n (1), [Cu3(L2)(SCN)3]n (2), and [Cu2(L3)(SCN)2]n (3) (L1 = 4-(naphthalen-1-yl)-2,6-di(pyridin-4-yl)pyridine, L2 = 4-(anthracen-1-yl)-2,6-di(pyridin-4-yl)pyridine, L3 = 4-(pyren-3-yl)-2,6-di(pyridin-4-yl)pyridine), have been solvothermally synthesized and exhibit two-dimensional structures extended by CuI centers, SCN–, anions, and terpyridyl ligands with different π-conjugated groups. Complexes 1–3 can decompose methylene blue (MB), Rhodamine B (RhB), and methyl orange (MO) with photodegradation rates ranging from 44.4 to 96.8% in 120 min. Owing to the more positive valence band potential and lower band gap regulated by Cu(I) d-electrons and pi-electrons of terpyridyl ligands, complex 2 exhibits the highest photocatalytic activity with the order of 2 > 1 > 3 and displays varied photodegradation efficiency for other dyes (Janus green B (JGB) and crystal violet (CV) with rates of 70.4 and 65.7% in 120 min, respectively). The degradation products and mechanism of MB by 2 have been proposed by liquid chromatography–mass spectrometry (LC-MS) and radical quenching experiments. These findings present an effective strategy for designing and synthesizing CPs in photodegradation by increasing the aromatic rings of π-conjugated groups and CuI center numbers, which may exert important impacts in wastewater treatment.
