基于 Cu2O 和 MIL-53(Al)的透明抗病毒和抗菌涂层薄膜的生态友好型低成本合成

IF 4.7 Q2 MATERIALS SCIENCE, BIOMATERIALS
Jirasak Gamonchuang, Sorrawit Meeklinhom, Tanyakorn Muangnapoh, Chalida Imhan, Varissara Chantho, Siwapech Sillapaprayoon, Wittaya Pimtong, Choochart Warin, Jantiya Isanapong, Chalita Ratanatawanate* and Pisist Kumnorkaew*,
{"title":"基于 Cu2O 和 MIL-53(Al)的透明抗病毒和抗菌涂层薄膜的生态友好型低成本合成","authors":"Jirasak Gamonchuang,&nbsp;Sorrawit Meeklinhom,&nbsp;Tanyakorn Muangnapoh,&nbsp;Chalida Imhan,&nbsp;Varissara Chantho,&nbsp;Siwapech Sillapaprayoon,&nbsp;Wittaya Pimtong,&nbsp;Choochart Warin,&nbsp;Jantiya Isanapong,&nbsp;Chalita Ratanatawanate* and Pisist Kumnorkaew*,&nbsp;","doi":"10.1021/acsabm.4c0095610.1021/acsabm.4c00956","DOIUrl":null,"url":null,"abstract":"<p >This research presents the development of an innovative antimicrobial coating consisting of cuprous oxide (Cu<sub>2</sub>O) integrated with the metal–organic framework MIL-53(Al) through an eco-friendly and low-cost synthesis method that employs glucose as a reducing agent under mild conditions. The microstructural properties of the composite materials were characterized by using X-ray diffraction (XRD) and transmission electron microscopy (TEM). The antibacterial efficacy of the Cu<sub>2</sub>O-MIL-53(Al) (CuM) composite was assessed against <i>Escherichia coli</i> and <i>Staphylococcus aureus</i>, achieving a reduction efficacy of 99.99% with 5% copper incorporated into the MIL-53(Al) framework within a contact time of 24 h. The incorporation of CuM into a macromolecular host matrix of polyurethane-carboxymethylcellulose (CuM/PUD-CMC), applied as a coating on a low-cost plastic film, produced a transparent film with 87.10% transparency. This coating demonstrated a 99.99% reduction in <i>E. coli</i> and <i>S. aureus</i> populations within a contact time of 24 h. The CuM/PUD-CMC coating demonstrated substantial antiviral efficacy, achieving inactivation rates of 99.35% for Human Coronavirus 229E, 99.40% for Influenza A virus, and 97.76% for Enterovirus 71 within a contact time of 5 min. The CuM nanoparticles exhibited low toxicity toward zebrafish while effectively eradicating bacteria and inactivating viruses. The proposed low-cost material and coating method demonstrate significant potential as a broad-spectrum antimicrobial and antiviral agent, highlighting its suitability for various applications in biomedical and healthcare formulations.</p>","PeriodicalId":2,"journal":{"name":"ACS Applied Bio Materials","volume":"7 11","pages":"7280–7291 7280–7291"},"PeriodicalIF":4.7000,"publicationDate":"2024-10-25","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Eco-Friendly and Low-Cost Synthesis of Transparent Antiviral- and Antibacterial-Coated Films Based on Cu2O and MIL-53(Al)\",\"authors\":\"Jirasak Gamonchuang,&nbsp;Sorrawit Meeklinhom,&nbsp;Tanyakorn Muangnapoh,&nbsp;Chalida Imhan,&nbsp;Varissara Chantho,&nbsp;Siwapech Sillapaprayoon,&nbsp;Wittaya Pimtong,&nbsp;Choochart Warin,&nbsp;Jantiya Isanapong,&nbsp;Chalita Ratanatawanate* and Pisist Kumnorkaew*,&nbsp;\",\"doi\":\"10.1021/acsabm.4c0095610.1021/acsabm.4c00956\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >This research presents the development of an innovative antimicrobial coating consisting of cuprous oxide (Cu<sub>2</sub>O) integrated with the metal–organic framework MIL-53(Al) through an eco-friendly and low-cost synthesis method that employs glucose as a reducing agent under mild conditions. The microstructural properties of the composite materials were characterized by using X-ray diffraction (XRD) and transmission electron microscopy (TEM). The antibacterial efficacy of the Cu<sub>2</sub>O-MIL-53(Al) (CuM) composite was assessed against <i>Escherichia coli</i> and <i>Staphylococcus aureus</i>, achieving a reduction efficacy of 99.99% with 5% copper incorporated into the MIL-53(Al) framework within a contact time of 24 h. The incorporation of CuM into a macromolecular host matrix of polyurethane-carboxymethylcellulose (CuM/PUD-CMC), applied as a coating on a low-cost plastic film, produced a transparent film with 87.10% transparency. This coating demonstrated a 99.99% reduction in <i>E. coli</i> and <i>S. aureus</i> populations within a contact time of 24 h. The CuM/PUD-CMC coating demonstrated substantial antiviral efficacy, achieving inactivation rates of 99.35% for Human Coronavirus 229E, 99.40% for Influenza A virus, and 97.76% for Enterovirus 71 within a contact time of 5 min. The CuM nanoparticles exhibited low toxicity toward zebrafish while effectively eradicating bacteria and inactivating viruses. The proposed low-cost material and coating method demonstrate significant potential as a broad-spectrum antimicrobial and antiviral agent, highlighting its suitability for various applications in biomedical and healthcare formulations.</p>\",\"PeriodicalId\":2,\"journal\":{\"name\":\"ACS Applied Bio Materials\",\"volume\":\"7 11\",\"pages\":\"7280–7291 7280–7291\"},\"PeriodicalIF\":4.7000,\"publicationDate\":\"2024-10-25\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Bio Materials\",\"FirstCategoryId\":\"1085\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsabm.4c00956\",\"RegionNum\":0,\"RegionCategory\":null,\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"MATERIALS SCIENCE, BIOMATERIALS\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Bio Materials","FirstCategoryId":"1085","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsabm.4c00956","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, BIOMATERIALS","Score":null,"Total":0}
引用次数: 0

摘要

本研究介绍了一种创新型抗菌涂层的开发过程,该涂层由氧化亚铜(Cu2O)与金属有机框架 MIL-53(Al)组成,采用一种环保、低成本的合成方法,在温和条件下使用葡萄糖作为还原剂。利用 X 射线衍射 (XRD) 和透射电子显微镜 (TEM) 对复合材料的微观结构特性进行了表征。评估了 Cu2O-MIL-53(Al) (CuM) 复合材料对大肠杆菌和金黄色葡萄球菌的抗菌效果,结果表明,在 MIL-53(Al) 框架中加入 5%的铜后,在 24 小时的接触时间内,抗菌效果达到 99.99%。将 CuM 加入聚氨酯-羧甲基纤维素大分子主基质(CuM/PUD-CMC),作为涂层涂在低成本塑料薄膜上,可制成透明度为 87.10%的透明薄膜。CuM/PUD-CMC 涂层具有很强的抗病毒功效,在 5 分钟的接触时间内,对人类冠状病毒 229E、甲型流感病毒和肠道病毒 71 的灭活率分别达到 99.35%、99.40% 和 97.76%。CuM 纳米粒子对斑马鱼的毒性很低,同时还能有效消灭细菌和灭活病毒。所提出的低成本材料和涂层方法证明了其作为广谱抗菌剂和抗病毒剂的巨大潜力,突出了其在生物医学和保健配方中的各种应用。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Eco-Friendly and Low-Cost Synthesis of Transparent Antiviral- and Antibacterial-Coated Films Based on Cu2O and MIL-53(Al)

Eco-Friendly and Low-Cost Synthesis of Transparent Antiviral- and Antibacterial-Coated Films Based on Cu2O and MIL-53(Al)

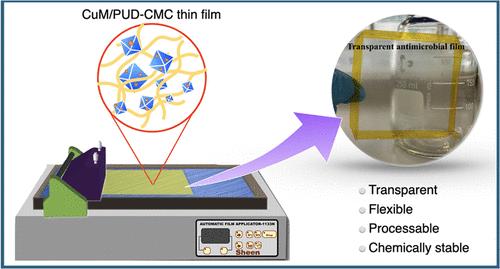

This research presents the development of an innovative antimicrobial coating consisting of cuprous oxide (Cu2O) integrated with the metal–organic framework MIL-53(Al) through an eco-friendly and low-cost synthesis method that employs glucose as a reducing agent under mild conditions. The microstructural properties of the composite materials were characterized by using X-ray diffraction (XRD) and transmission electron microscopy (TEM). The antibacterial efficacy of the Cu2O-MIL-53(Al) (CuM) composite was assessed against Escherichia coli and Staphylococcus aureus, achieving a reduction efficacy of 99.99% with 5% copper incorporated into the MIL-53(Al) framework within a contact time of 24 h. The incorporation of CuM into a macromolecular host matrix of polyurethane-carboxymethylcellulose (CuM/PUD-CMC), applied as a coating on a low-cost plastic film, produced a transparent film with 87.10% transparency. This coating demonstrated a 99.99% reduction in E. coli and S. aureus populations within a contact time of 24 h. The CuM/PUD-CMC coating demonstrated substantial antiviral efficacy, achieving inactivation rates of 99.35% for Human Coronavirus 229E, 99.40% for Influenza A virus, and 97.76% for Enterovirus 71 within a contact time of 5 min. The CuM nanoparticles exhibited low toxicity toward zebrafish while effectively eradicating bacteria and inactivating viruses. The proposed low-cost material and coating method demonstrate significant potential as a broad-spectrum antimicrobial and antiviral agent, highlighting its suitability for various applications in biomedical and healthcare formulations.
