平衡界面韧性和内在耗散,实现聚合物热界面材料的高粘附性和热传导性

IF 8.2 2区 材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY
Jiashuo Sheng, Zhian Zhang, Yunsong Pang, Xiaxia Cheng, Chen Zeng, Jian-Bin Xu, Leicong Zhang, Xiaoliang Zeng, Linlin Ren* and Rong Sun,
{"title":"平衡界面韧性和内在耗散,实现聚合物热界面材料的高粘附性和热传导性","authors":"Jiashuo Sheng,&nbsp;Zhian Zhang,&nbsp;Yunsong Pang,&nbsp;Xiaxia Cheng,&nbsp;Chen Zeng,&nbsp;Jian-Bin Xu,&nbsp;Leicong Zhang,&nbsp;Xiaoliang Zeng,&nbsp;Linlin Ren* and Rong Sun,&nbsp;","doi":"10.1021/acsami.4c1311810.1021/acsami.4c13118","DOIUrl":null,"url":null,"abstract":"<p >In recent years, adhesive thermal interface materials have attracted much attention because of their reliable adhesion properties on most substrates, preventing moisture, vibration impact, or chemical corrosion damage to components and equipment, as well as solving the heat dissipation problem. However, thermal interface materials have a huge contradiction between strong adhesion and high thermal conductivity. Here, we report a polymer-based thermal interface material consisting of polydimethylsiloxane/spherical aluminum fillers, which possesses both adhesion properties (adhesion strength of 3.59 MPa and adhesion toughness of 1673 J m<sup>–2</sup> and enhanced thermal conductivity of 3.90 W m<sup>–1</sup> K<sup>–1</sup>). These excellent properties are attributed to the modified chain structure by introducing acrylate accelerators into the polydimethylsiloxane network, thereby striking a balance between interfacial toughness and intrinsic dissipation. The addition of thermally conductive aluminum fillers not only increases the thermal conductivity but also improves the bulk energy dissipation of the thermal interface material. This work provides a novel strategy for designing a novel thermal interface material, leading to new ideas in long-term applications in high-power electronics.</p>","PeriodicalId":5,"journal":{"name":"ACS Applied Materials & Interfaces","volume":"16 45","pages":"62961–62969 62961–62969"},"PeriodicalIF":8.2000,"publicationDate":"2024-10-29","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Balancing Interfacial Toughness and Intrinsic Dissipation for High Adhesion and Thermal Conductivity of Polymer-Based Thermal Interface Materials\",\"authors\":\"Jiashuo Sheng,&nbsp;Zhian Zhang,&nbsp;Yunsong Pang,&nbsp;Xiaxia Cheng,&nbsp;Chen Zeng,&nbsp;Jian-Bin Xu,&nbsp;Leicong Zhang,&nbsp;Xiaoliang Zeng,&nbsp;Linlin Ren* and Rong Sun,&nbsp;\",\"doi\":\"10.1021/acsami.4c1311810.1021/acsami.4c13118\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >In recent years, adhesive thermal interface materials have attracted much attention because of their reliable adhesion properties on most substrates, preventing moisture, vibration impact, or chemical corrosion damage to components and equipment, as well as solving the heat dissipation problem. However, thermal interface materials have a huge contradiction between strong adhesion and high thermal conductivity. Here, we report a polymer-based thermal interface material consisting of polydimethylsiloxane/spherical aluminum fillers, which possesses both adhesion properties (adhesion strength of 3.59 MPa and adhesion toughness of 1673 J m<sup>–2</sup> and enhanced thermal conductivity of 3.90 W m<sup>–1</sup> K<sup>–1</sup>). These excellent properties are attributed to the modified chain structure by introducing acrylate accelerators into the polydimethylsiloxane network, thereby striking a balance between interfacial toughness and intrinsic dissipation. The addition of thermally conductive aluminum fillers not only increases the thermal conductivity but also improves the bulk energy dissipation of the thermal interface material. This work provides a novel strategy for designing a novel thermal interface material, leading to new ideas in long-term applications in high-power electronics.</p>\",\"PeriodicalId\":5,\"journal\":{\"name\":\"ACS Applied Materials & Interfaces\",\"volume\":\"16 45\",\"pages\":\"62961–62969 62961–62969\"},\"PeriodicalIF\":8.2000,\"publicationDate\":\"2024-10-29\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Applied Materials & Interfaces\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acsami.4c13118\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Materials & Interfaces","FirstCategoryId":"88","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acsami.4c13118","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

近年来,粘合型热界面材料因其在大多数基材上具有可靠的粘合性能,可防止潮湿、振动冲击或化学腐蚀对元件和设备造成损坏,并能解决散热问题而备受关注。然而,热界面材料在强粘附性和高导热性之间存在巨大矛盾。在此,我们报告了一种由聚二甲基硅氧烷/球形铝填料组成的聚合物基导热界面材料,它同时具有粘附性能(粘附强度为 3.59 MPa,粘附韧性为 1673 J m-2,导热系数为 3.90 W m-1 K-1)。这些优异性能归功于通过在聚二甲基硅氧烷网络中引入丙烯酸酯促进剂对链结构进行了改性,从而在界面韧性和内在耗散之间取得了平衡。导热铝填料的加入不仅提高了热导率,还改善了热界面材料的体能耗散。这项研究为设计新型热界面材料提供了一种新策略,为大功率电子器件的长期应用提供了新思路。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Balancing Interfacial Toughness and Intrinsic Dissipation for High Adhesion and Thermal Conductivity of Polymer-Based Thermal Interface Materials

Balancing Interfacial Toughness and Intrinsic Dissipation for High Adhesion and Thermal Conductivity of Polymer-Based Thermal Interface Materials

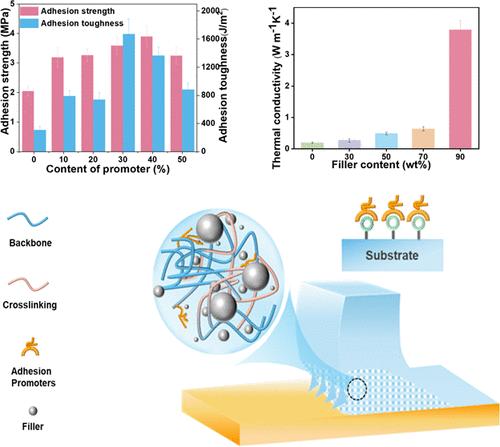

In recent years, adhesive thermal interface materials have attracted much attention because of their reliable adhesion properties on most substrates, preventing moisture, vibration impact, or chemical corrosion damage to components and equipment, as well as solving the heat dissipation problem. However, thermal interface materials have a huge contradiction between strong adhesion and high thermal conductivity. Here, we report a polymer-based thermal interface material consisting of polydimethylsiloxane/spherical aluminum fillers, which possesses both adhesion properties (adhesion strength of 3.59 MPa and adhesion toughness of 1673 J m–2 and enhanced thermal conductivity of 3.90 W m–1 K–1). These excellent properties are attributed to the modified chain structure by introducing acrylate accelerators into the polydimethylsiloxane network, thereby striking a balance between interfacial toughness and intrinsic dissipation. The addition of thermally conductive aluminum fillers not only increases the thermal conductivity but also improves the bulk energy dissipation of the thermal interface material. This work provides a novel strategy for designing a novel thermal interface material, leading to new ideas in long-term applications in high-power electronics.
