用于 WLED 原位温度测量的光卤石 Ba9La(VO4)7:Eu3+中的缺陷驱动高级负热淬火技术

IF 4.7 2区 化学 Q1 CHEMISTRY, INORGANIC & NUCLEAR
Juanjuan Kong, Naijia Liu, Yun Xu, Yunjian Wang*, Zibo Wang and Lei Geng*,
{"title":"用于 WLED 原位温度测量的光卤石 Ba9La(VO4)7:Eu3+中的缺陷驱动高级负热淬火技术","authors":"Juanjuan Kong,&nbsp;Naijia Liu,&nbsp;Yun Xu,&nbsp;Yunjian Wang*,&nbsp;Zibo Wang and Lei Geng*,&nbsp;","doi":"10.1021/acs.inorgchem.4c0319910.1021/acs.inorgchem.4c03199","DOIUrl":null,"url":null,"abstract":"<p >Negative thermal quenching (NTQ) of the phosphors is critically important for both scientific research and practical applications, but the design of efficient NTQ phosphors is still a challenging task. Herein, we report a new strategy for developing NTQ materials by cation-vacancy engineering. Specifically, a new color-tunable Ba<sub>9</sub>La<sub>1–<i>x</i></sub>(VO<sub>4</sub>):<i>x</i>Eu<sup>3+</sup> (BLVO:<i>x</i>Eu<sup>3+</sup>) phosphor with abundant intrinsic cation vacancy was developed, exhibiting superior NTQ behavior under 365 nm excitation. The NTQ performance can be modulated via adjusting Eu<sup>3+</sup> doping levels, and the emission intensity of Eu<sup>3+</sup> ions in the BLVO:0.20Eu<sup>3+</sup> phosphor increased by 275% at 473 K compared to room temperature. Furthermore, the reported material emitting bright white light under 365 nm excitation was well-suited for use in white light-emitting diode (WLED) phosphor and fluorescent temperature sensors, exhibiting outstanding color-rendering index (90.1) in lighting and high sensitivity (<i>S</i><sub>a</sub> = 11.83% K<sup>–1</sup>, <i>S</i><sub>r</sub> = 2.33% K<sup>–1</sup>) in temperature detecting. Lastly, the operating temperature of WLED at different currents can be monitored and displayed in real time through emission spectroscopy. All of the results demonstrated that the designed NTQ BLVO:<i>x</i>Eu<sup>3+</sup> can be used as a single-phase white phosphor and optical thermometry. This work provides a fresh perspective for designing high-efficient NTQ phosphors and expands the application of phosphors in WLED in situ temperature detection.</p>","PeriodicalId":40,"journal":{"name":"Inorganic Chemistry","volume":"63 44","pages":"21070–21082 21070–21082"},"PeriodicalIF":4.7000,"publicationDate":"2024-10-22","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Defect-Enabled Superior Negative Thermal Quenching in Palmierite Ba9La(VO4)7:Eu3+ for WLED In Situ Temperature Measuring\",\"authors\":\"Juanjuan Kong,&nbsp;Naijia Liu,&nbsp;Yun Xu,&nbsp;Yunjian Wang*,&nbsp;Zibo Wang and Lei Geng*,&nbsp;\",\"doi\":\"10.1021/acs.inorgchem.4c0319910.1021/acs.inorgchem.4c03199\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Negative thermal quenching (NTQ) of the phosphors is critically important for both scientific research and practical applications, but the design of efficient NTQ phosphors is still a challenging task. Herein, we report a new strategy for developing NTQ materials by cation-vacancy engineering. Specifically, a new color-tunable Ba<sub>9</sub>La<sub>1–<i>x</i></sub>(VO<sub>4</sub>):<i>x</i>Eu<sup>3+</sup> (BLVO:<i>x</i>Eu<sup>3+</sup>) phosphor with abundant intrinsic cation vacancy was developed, exhibiting superior NTQ behavior under 365 nm excitation. The NTQ performance can be modulated via adjusting Eu<sup>3+</sup> doping levels, and the emission intensity of Eu<sup>3+</sup> ions in the BLVO:0.20Eu<sup>3+</sup> phosphor increased by 275% at 473 K compared to room temperature. Furthermore, the reported material emitting bright white light under 365 nm excitation was well-suited for use in white light-emitting diode (WLED) phosphor and fluorescent temperature sensors, exhibiting outstanding color-rendering index (90.1) in lighting and high sensitivity (<i>S</i><sub>a</sub> = 11.83% K<sup>–1</sup>, <i>S</i><sub>r</sub> = 2.33% K<sup>–1</sup>) in temperature detecting. Lastly, the operating temperature of WLED at different currents can be monitored and displayed in real time through emission spectroscopy. All of the results demonstrated that the designed NTQ BLVO:<i>x</i>Eu<sup>3+</sup> can be used as a single-phase white phosphor and optical thermometry. This work provides a fresh perspective for designing high-efficient NTQ phosphors and expands the application of phosphors in WLED in situ temperature detection.</p>\",\"PeriodicalId\":40,\"journal\":{\"name\":\"Inorganic Chemistry\",\"volume\":\"63 44\",\"pages\":\"21070–21082 21070–21082\"},\"PeriodicalIF\":4.7000,\"publicationDate\":\"2024-10-22\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Inorganic Chemistry\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.acs.org/doi/10.1021/acs.inorgchem.4c03199\",\"RegionNum\":2,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, INORGANIC & NUCLEAR\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Inorganic Chemistry","FirstCategoryId":"92","ListUrlMain":"https://pubs.acs.org/doi/10.1021/acs.inorgchem.4c03199","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, INORGANIC & NUCLEAR","Score":null,"Total":0}
引用次数: 0

摘要

荧光粉的负热淬灭(NTQ)对于科学研究和实际应用都至关重要,但设计高效的负热淬灭荧光粉仍是一项具有挑战性的任务。在此,我们报告了一种通过阳离子-空穴工程开发 NTQ 材料的新策略。具体来说,我们开发了一种具有丰富固有阳离子空位的新型颜色可调 Ba9La1-x(VO4):xEu3+(BLVO:xEu3+)荧光粉,在 365 纳米激发下表现出优异的 NTQ 性能。通过调整 Eu3+ 的掺杂水平,可以调节其 NTQ 性能,在 473 K 时,BLVO:0.20Eu3+ 荧光粉中 Eu3+ 离子的发射强度比室温下提高了 275%。此外,所报道的材料在 365 nm 激发下可发出明亮的白光,非常适合用于白光发光二极管(WLED)荧光粉和荧光温度传感器,在照明方面具有出色的显色指数(90.1),在温度检测方面具有高灵敏度(Sa = 11.83% K-1,Sr = 2.33% K-1)。最后,可通过发射光谱实时监测和显示 WLED 在不同电流下的工作温度。所有结果都表明,所设计的 NTQ BLVO:xEu3+ 可用作单相白光荧光粉和光学测温仪。这项工作为设计高效的 NTQ 荧光粉提供了一个全新的视角,并拓展了荧光粉在 WLED 原位温度检测中的应用。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

Defect-Enabled Superior Negative Thermal Quenching in Palmierite Ba9La(VO4)7:Eu3+ for WLED In Situ Temperature Measuring

Defect-Enabled Superior Negative Thermal Quenching in Palmierite Ba9La(VO4)7:Eu3+ for WLED In Situ Temperature Measuring

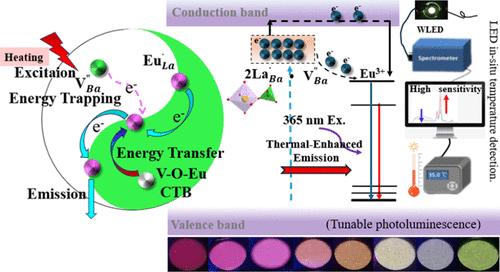

Negative thermal quenching (NTQ) of the phosphors is critically important for both scientific research and practical applications, but the design of efficient NTQ phosphors is still a challenging task. Herein, we report a new strategy for developing NTQ materials by cation-vacancy engineering. Specifically, a new color-tunable Ba9La1–x(VO4):xEu3+ (BLVO:xEu3+) phosphor with abundant intrinsic cation vacancy was developed, exhibiting superior NTQ behavior under 365 nm excitation. The NTQ performance can be modulated via adjusting Eu3+ doping levels, and the emission intensity of Eu3+ ions in the BLVO:0.20Eu3+ phosphor increased by 275% at 473 K compared to room temperature. Furthermore, the reported material emitting bright white light under 365 nm excitation was well-suited for use in white light-emitting diode (WLED) phosphor and fluorescent temperature sensors, exhibiting outstanding color-rendering index (90.1) in lighting and high sensitivity (Sa = 11.83% K–1, Sr = 2.33% K–1) in temperature detecting. Lastly, the operating temperature of WLED at different currents can be monitored and displayed in real time through emission spectroscopy. All of the results demonstrated that the designed NTQ BLVO:xEu3+ can be used as a single-phase white phosphor and optical thermometry. This work provides a fresh perspective for designing high-efficient NTQ phosphors and expands the application of phosphors in WLED in situ temperature detection.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
Inorganic Chemistry
Inorganic Chemistry 化学-无机化学与核化学
CiteScore
7.60
自引率
13.00%
发文量
1960
审稿时长
1.9 months
期刊介绍: Inorganic Chemistry publishes fundamental studies in all phases of inorganic chemistry. Coverage includes experimental and theoretical reports on quantitative studies of structure and thermodynamics, kinetics, mechanisms of inorganic reactions, bioinorganic chemistry, and relevant aspects of organometallic chemistry, solid-state phenomena, and chemical bonding theory. Emphasis is placed on the synthesis, structure, thermodynamics, reactivity, spectroscopy, and bonding properties of significant new and known compounds.
×
