Possibility to measure the volume of coronary sinus in contrast-enhanced computed tomography.

Introduction: Modern imaging techniques such as computed tomography (CT) can help in the assessment of coronary sinus volume in a vitro manner, but there is no comprehensive research on this topic so far. Hence, we decided to develop a methodology for measuring the volume of the coronary sinus in multi-detector CT and to try to apply it in practice.

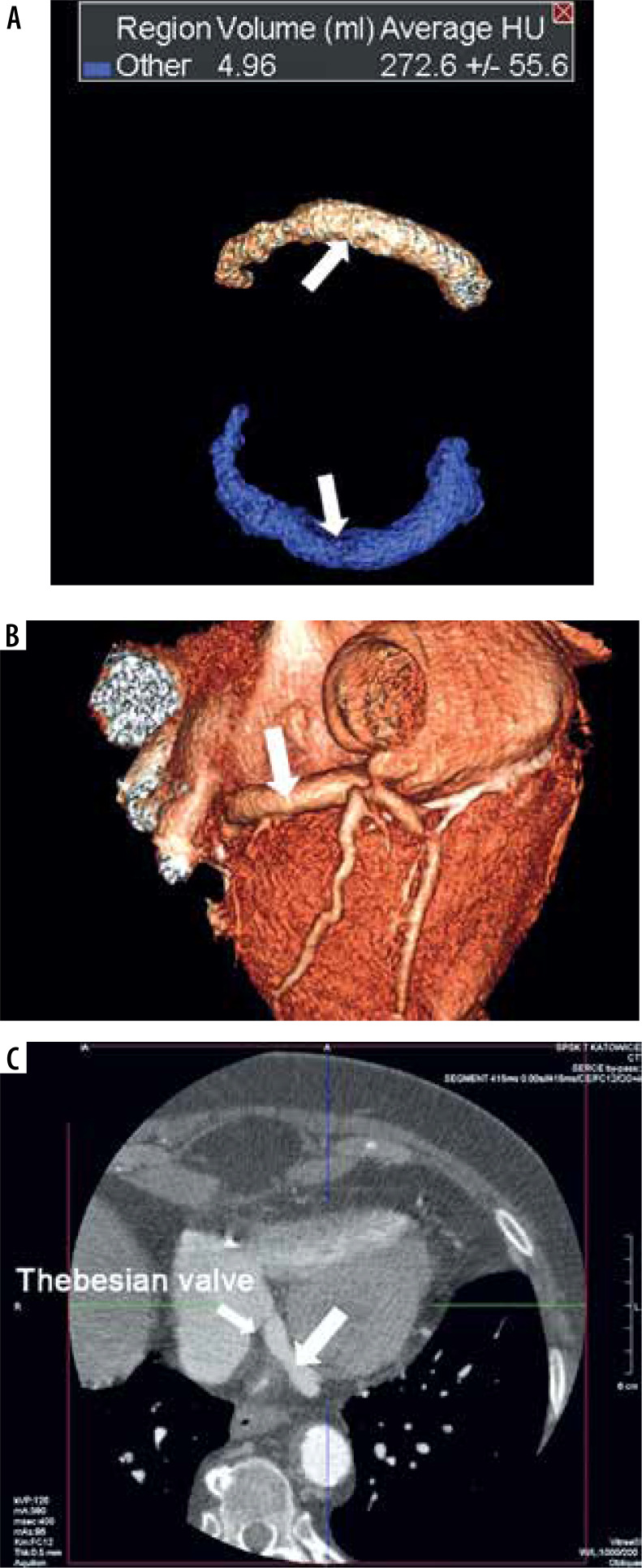

Material and methods: Forty-nine patients (22 men) were included in this research, with a mean age of 70.08 ± 13.6 years. Scanning with retrospective ECG-gating was performed using a Toshiba Aquilion 64 (slice: 0.5 mm; helical pitch: 12.8; rotation time: 0.4 s). 80 ± 20 cm³ of non-ionic contrast was administered to each patient. The volume of coronary sinus and other data measurements were performed using Vitrea 2 workstations. The organ volume measurement function was used to measure volume objects in CT scans. To standardise the measurements, they were all performed to the place where the vein of Marshall reaches the coronary sinus. In cases of loss of vein of Marshall, the first lateral vein was used as the junction between the coronary sinus and the great cardiac vein.

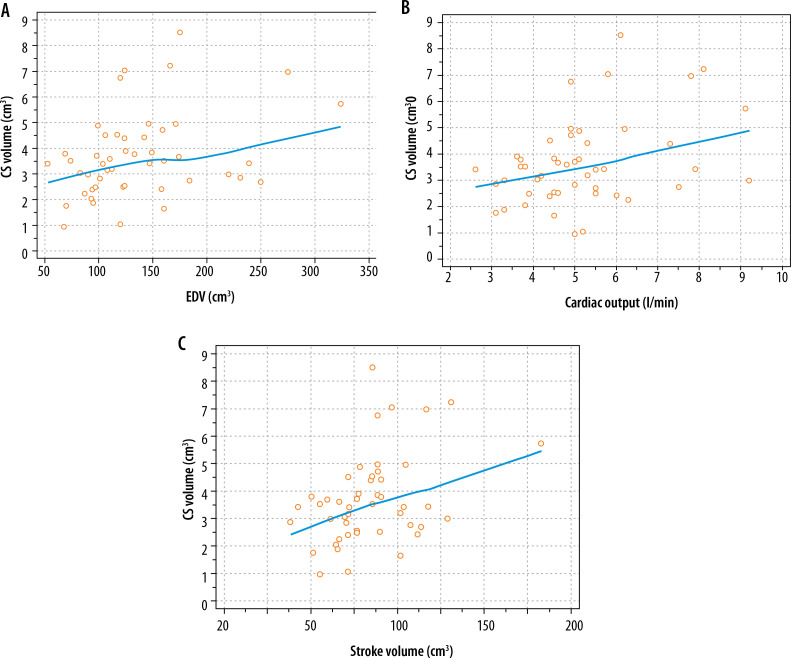

Results: The coronary sinus volume varied from 0.96 cm³ to 8.52 cm³. The average volume was 3.71 ± 1.64 cm³. There was a significant correlation between end diastolic volume and coronary sinus volume (r = 0.33, p = 0.02). In most cases the quality of visualisation was good - the average was calculated as 4.16 ± 0.87. The Thebesian valve was present in 22 cases (44.9%); however, no statistical relationship between the presence of the Thebesian valve and coronary sinus was observed.

Conclusion: It is possible to visualise and calculate the volume of the coronary sinus in cardiac CT.
