Capacitance-Voltage Fluctuation of SixNy-Based Metal-Insulator-Metal Capacitor Due to Silane Surface Treatment.

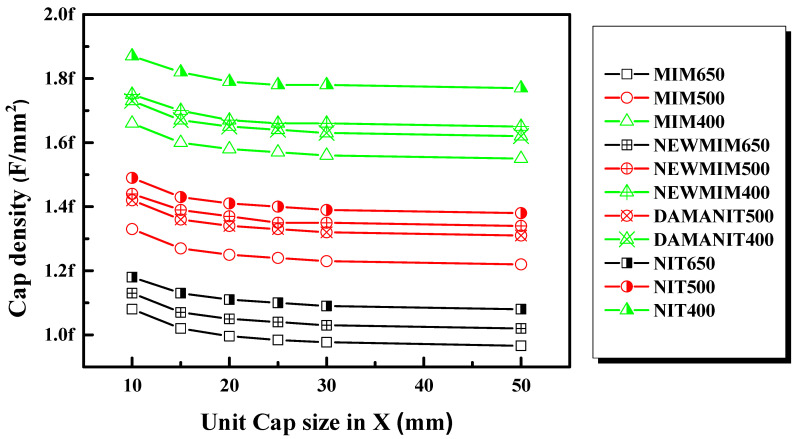

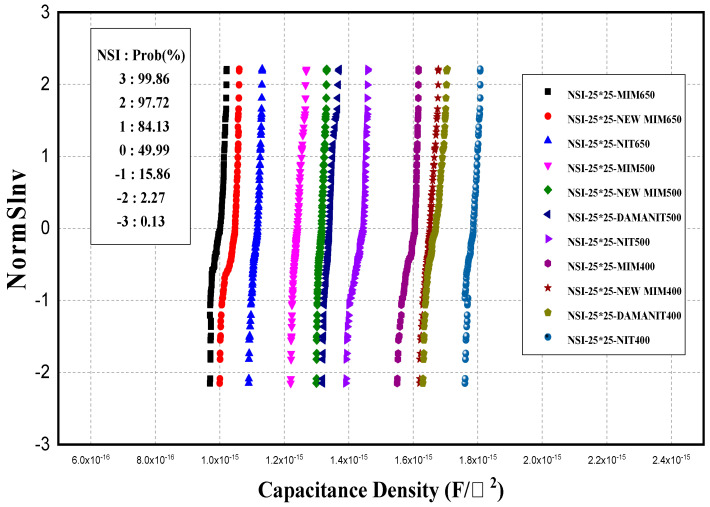

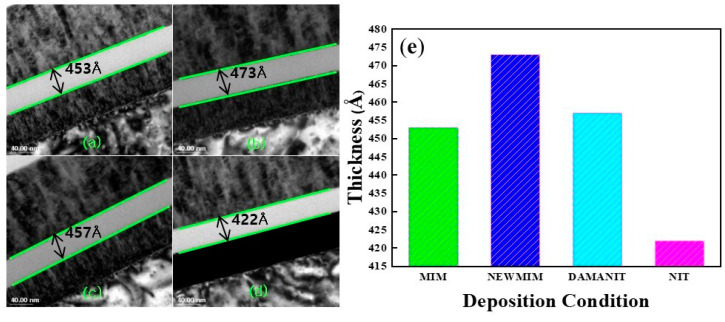

In this study, we analyze metal-insulator-metal (MIM) capacitors with different thicknesses of SixNy film (650 Å, 500 Å, and 400 Å) and varying levels of film quality to improve their capacitance density. SixNy thicknesses of 650 Å, 500 Å, and 400 Å are used with four different conditions, designated as MIM (N content 1.49), NEWMIM (N content 28.1), DAMANIT (N content 1.43), and NIT (N content 0.30). We divide the C-V characteristics into two categories: voltage coefficient of capacitance (VCC) and temperature coefficient of capacitance (TCC). There was an overall increase in the VCC as the thickness of the SixNy film decreased, with some variation depending on the condition. However, the TCC did not vary significantly with thickness, only with condition. At the same thickness, the NIT condition yielded the highest capacitance density, while the MIM condition showed the lowest capacitance density. This difference was due to the actual thickness of the film and the variation in its k-value depending on the condition. The most influential factor for capacitance uniformity was the thickness uniformity of the SixNy film.
