具有疏水性激光诱导石墨烯电极和氟相传感膜的柔性乙酰胆碱神经探针

IF 8.7 1区化学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY

ACS Materials Letters Pub Date : 2024-08-15 DOI:10.1021/acsmaterialslett.4c00825

Farbod Amirghasemi, Abdulrahman Al-Shami, Kara Ushijima, Maral P. S. Mousavi

{"title":"具有疏水性激光诱导石墨烯电极和氟相传感膜的柔性乙酰胆碱神经探针","authors":"Farbod Amirghasemi, Abdulrahman Al-Shami, Kara Ushijima, Maral P. S. Mousavi","doi":"10.1021/acsmaterialslett.4c00825","DOIUrl":null,"url":null,"abstract":"This work develops the first laser-induced graphene (LIG)-based electrochemical sensor with a superhydrophobic fluorous membrane for a flexible acetylcholine (ACh) sensor. ACh regulates several physiological functions, including synaptic transmission and glandular secretion. The ACh sensing membrane is doped with a fluorophilic cation-exchanger that can selectively measure ACh based on the inherent selectivity of the fluorous phase for hydrophobic ions, such as ACh. The fluorous-phase sensor improves the selectivity for ACh over Na+ and K+ by 2 orders of magnitude (compared to traditional lipophilic membranes), thus lowering the detection limit in artificial cerebrospinal fluid (aCSF) from 331 to 0.38 μM, thereby allowing measurement in physiologically relevant ranges of ACh. Engraving LIG under argon creates a hydrophobic surface with a 133.7° contact angle, which minimizes the formation of a water layer. The flexible solid-contact LIG fluorous sensor exhibited a slope of 59.3 mV/decade in aCSF and retained function after 20 bending cycles, thereby paving the way for studying ACh’s role in memory and neurodegenerative diseases.","PeriodicalId":19,"journal":{"name":"ACS Materials Letters","volume":"21 1","pages":""},"PeriodicalIF":8.7000,"publicationDate":"2024-08-15","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Flexible Acetylcholine Neural Probe with a Hydrophobic Laser-Induced Graphene Electrode and a Fluorous-Phase Sensing Membrane\",\"authors\":\"Farbod Amirghasemi, Abdulrahman Al-Shami, Kara Ushijima, Maral P. S. Mousavi\",\"doi\":\"10.1021/acsmaterialslett.4c00825\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"This work develops the first laser-induced graphene (LIG)-based electrochemical sensor with a superhydrophobic fluorous membrane for a flexible acetylcholine (ACh) sensor. ACh regulates several physiological functions, including synaptic transmission and glandular secretion. The ACh sensing membrane is doped with a fluorophilic cation-exchanger that can selectively measure ACh based on the inherent selectivity of the fluorous phase for hydrophobic ions, such as ACh. The fluorous-phase sensor improves the selectivity for ACh over Na+ and K+ by 2 orders of magnitude (compared to traditional lipophilic membranes), thus lowering the detection limit in artificial cerebrospinal fluid (aCSF) from 331 to 0.38 μM, thereby allowing measurement in physiologically relevant ranges of ACh. Engraving LIG under argon creates a hydrophobic surface with a 133.7° contact angle, which minimizes the formation of a water layer. The flexible solid-contact LIG fluorous sensor exhibited a slope of 59.3 mV/decade in aCSF and retained function after 20 bending cycles, thereby paving the way for studying ACh’s role in memory and neurodegenerative diseases.\",\"PeriodicalId\":19,\"journal\":{\"name\":\"ACS Materials Letters\",\"volume\":\"21 1\",\"pages\":\"\"},\"PeriodicalIF\":8.7000,\"publicationDate\":\"2024-08-15\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"ACS Materials Letters\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://doi.org/10.1021/acsmaterialslett.4c00825\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Materials Letters","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1021/acsmaterialslett.4c00825","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 0

摘要

这项研究首次开发了基于激光诱导石墨烯（LIG）的电化学传感器，该传感器具有超疏水荧光膜，可用于柔性乙酰胆碱（ACh）传感器。乙酰胆碱调节多种生理功能，包括突触传递和腺体分泌。乙酰胆碱传感膜掺杂了一种亲氟阳离子交换剂，该交换剂可根据荧光相对乙酰胆碱等疏水性离子的固有选择性来选择性地测量乙酰胆碱。与传统的亲脂性膜相比，荧光相传感器对 ACh 的选择性比对 Na+ 和 K+ 的选择性提高了 2 个数量级，从而将人工脑脊液 (aCSF) 中的检测限从 331 μM 降至 0.38 μM，从而可以测量生理范围内的 ACh。在氩气环境下雕刻 LIG 可形成接触角为 133.7° 的疏水表面，从而最大程度地减少了水层的形成。柔性固体接触式 LIG 萤光传感器在 aCSF 中的斜率为 59.3 mV/decade，并且在 20 次弯曲循环后仍能保持功能，从而为研究 ACh 在记忆和神经退行性疾病中的作用铺平了道路。

本文章由计算机程序翻译，如有差异，请以英文原文为准。

Flexible Acetylcholine Neural Probe with a Hydrophobic Laser-Induced Graphene Electrode and a Fluorous-Phase Sensing Membrane

查看原文本刊更多论文

Flexible Acetylcholine Neural Probe with a Hydrophobic Laser-Induced Graphene Electrode and a Fluorous-Phase Sensing Membrane

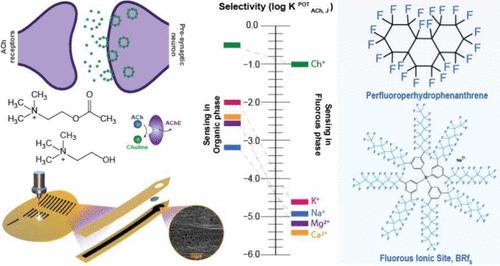

This work develops the first laser-induced graphene (LIG)-based electrochemical sensor with a superhydrophobic fluorous membrane for a flexible acetylcholine (ACh) sensor. ACh regulates several physiological functions, including synaptic transmission and glandular secretion. The ACh sensing membrane is doped with a fluorophilic cation-exchanger that can selectively measure ACh based on the inherent selectivity of the fluorous phase for hydrophobic ions, such as ACh. The fluorous-phase sensor improves the selectivity for ACh over Na⁺ and K⁺ by 2 orders of magnitude (compared to traditional lipophilic membranes), thus lowering the detection limit in artificial cerebrospinal fluid (aCSF) from 331 to 0.38 μM, thereby allowing measurement in physiologically relevant ranges of ACh. Engraving LIG under argon creates a hydrophobic surface with a 133.7° contact angle, which minimizes the formation of a water layer. The flexible solid-contact LIG fluorous sensor exhibited a slope of 59.3 mV/decade in aCSF and retained function after 20 bending cycles, thereby paving the way for studying ACh’s role in memory and neurodegenerative diseases.
